High Quality Fully Automatic High Speedipe Bending Machine (GM-SB-114CNC)
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New
- Certification:ISO 9001:2000, CE, UL
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type:Pipe and Tube Bending Machine
Base Info
- Model NO.:GM-SB-114CNC
- Transport Package:Iron Frame,Wooden Case
- Specification:CE
- Trademark:GMACC
- Origin:China
Description
Basic Info.
Model NO. GM-SB-114CNC Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin ChinaProduct Description
High Quality Fully Automatic High Speedipe Bending Machine(GM-SB-114CNC )- Machine Characteristic
GM-SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | 114*8 |
Stainless Steel | mm | 114*6 |
Light alloy annealed round tube | mm | 114*10 |
Mild steel square tube | mm | 90*90*6 |
Mild steel rectangular tube | mm | 90*85*6 |
Mild steel round solid bar | mm | 55 |
Mild steel square solid bar | mm | 50*50 |
Min. bending radius | mm | 40 |
Max. Bending radius(Standard) | mm | 450 |
Head overhang (on bending centre) | mm | 500 |
Head height (on bending centre) | mm | 720 |
Bending centre height (from floor) | mm | 1235 |
Max. bar passage inside the P.O.B. positionner | mm | 70 |
Clamping adjustable stroke | mm | 0-150 |
Shouldering adjustable stroke | mm | 500 |
Mandrel retraction adjustable stroke | mm | 0-200 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 4200 |
Bending Speed(Max.) | °/sec | 20 |
Max. rotation speed (axis Z) | °/sec | 160 |
Max. shifting speed (axis X.) | mm/sec | 500 |
Bending angle Precision | ° | ±0.10 |
Rotation angle Precision - axis Z | ° | ±0.10 |
Shifting Precision - axis X | mm | ±0.10 |
System Motor Power | KW | 15 |
Hydraulic Pump Volume | L | 45 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 5200*1350*1250 |
Machine Weight | T | 5.5 |
- Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens(BEIDE)or Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Oil way Board | Taiwan Shanghong (Imported) |
Cylinder | Shanghai Qifan |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Switch power | Taiwan Mingwei |
Contactor | German SCHNEIDER |
Transformer | Wuxi Xinyu |

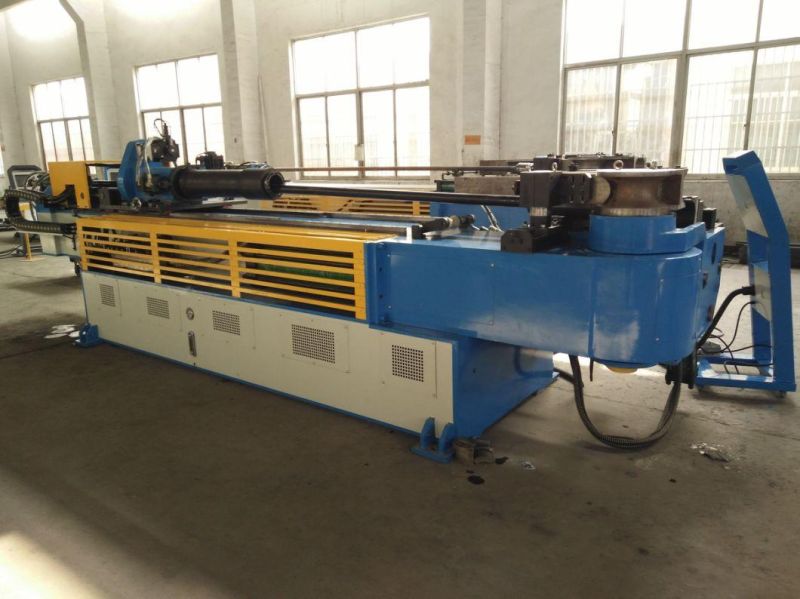

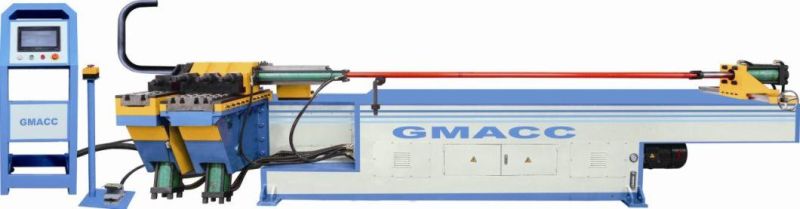

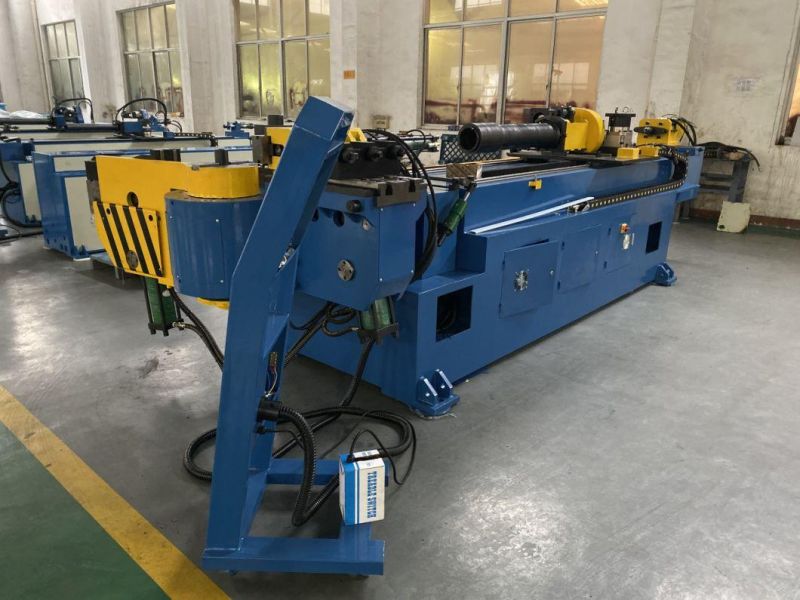

Machine Photos (only for your reference)

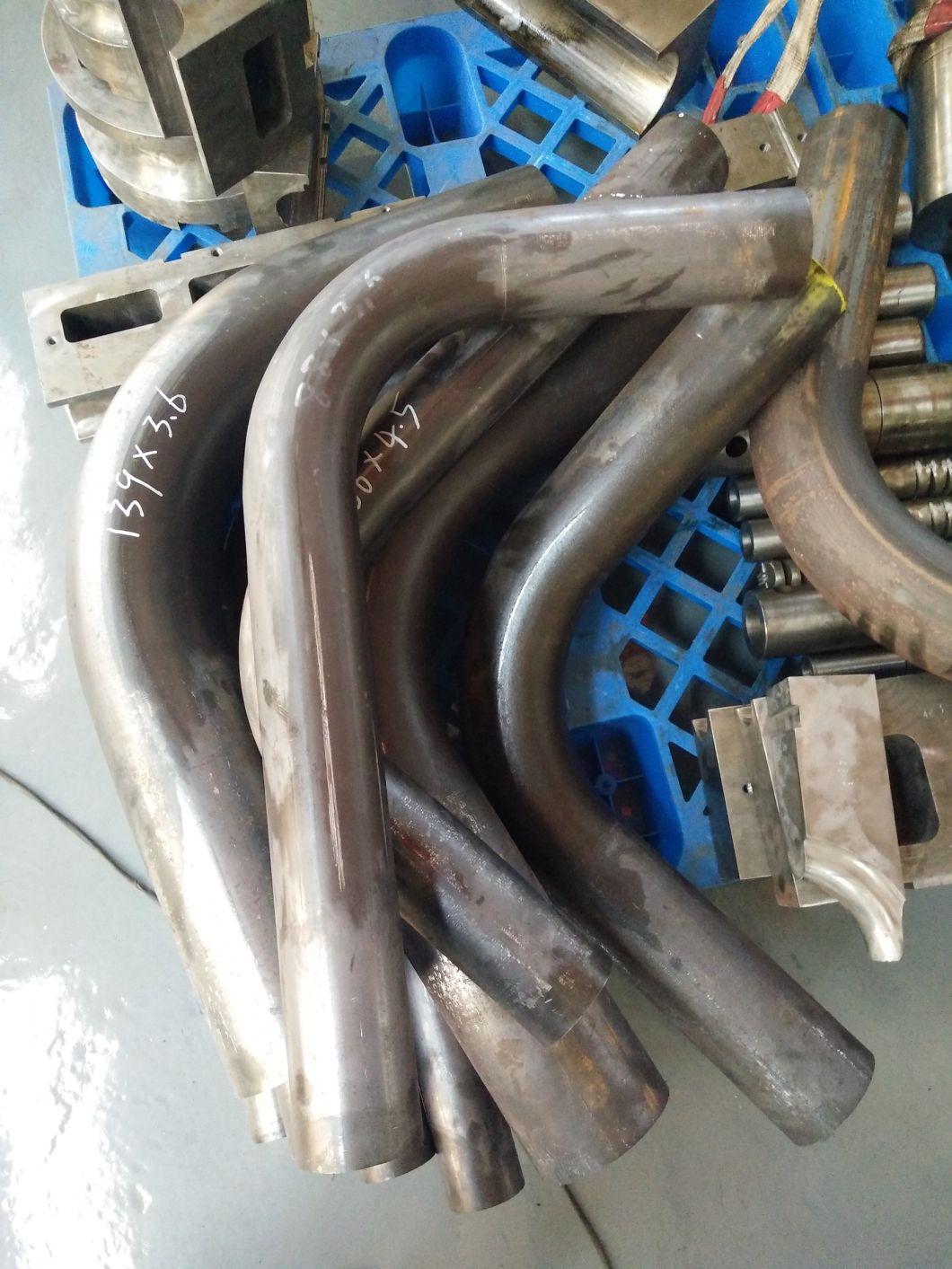

Tooling Samples Bending Die Clamp Die Pressure Die
Mandrel Wiper Die(optional)
Company Photos
CNC Machining Center
