• Model NO.：GM-SB-100NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China

Basic Info.

Model NO. GM-SB-100NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-100NCB

• Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

• Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	¢100*8
Mild steel square tube	mm	70*70*6
Mild steel rectangular tube	mm	75*65*6
Mild steel round solid bar	mm	¢45
Mild steel square solid bar	mm	40*40
Min. bending radius	mm	40
Max. Bending radius(Standard)	mm	400
Head overhang (on bending centre)	mm	460
Head height (on bending centre)	mm	610
Bending centre height (from floor)	mm	1140
Max. Bending Angle	°	190°
Through Effective Distance	mm	4000
Bending Speed(Max.)	°/sec	25
Bending angle Precision	°	±0.10
System Motor Power	KW	11
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	5300*1350*1200
Machine Weight	T	ABOUT 4.5

• Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)/Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Transformer	Wuxi Xinyu
Contactor	SCHNEIDER

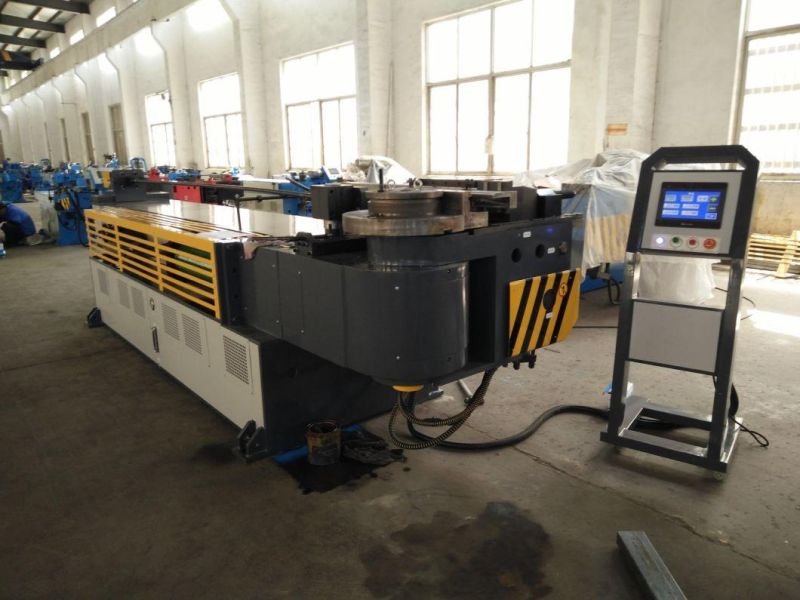

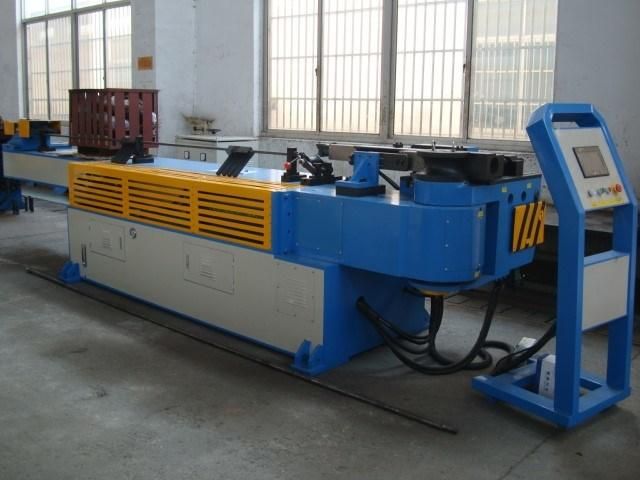

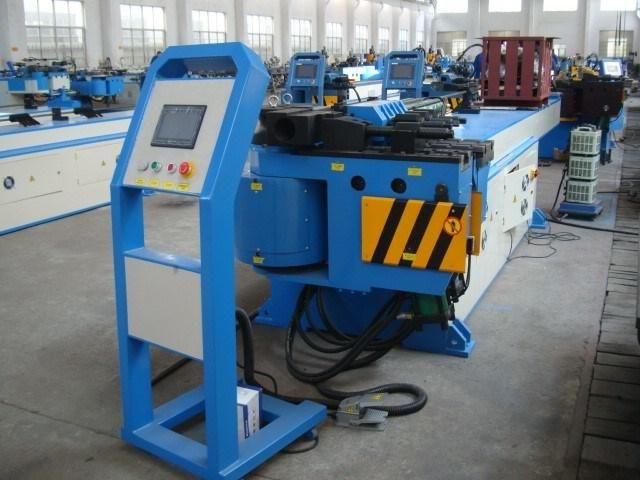

MODEL:GM-SB-100NCB



 Tooling Samples  Bending Die                                     Clamp Die                                      Pressure Die



                                             Mandrel                              Wiper Die(optional)
