High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-76NCB
  • Type：Pipe and Tube Bending Machine
  • Transport Package：Iron Frame,Wooden Case
  • Specification：CE
  • Trademark：GMACC
  • Origin：China

Description

Basic Info.

Model NO. GM-SB-76NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-76NCB
  • Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
  • Main Technical Parameter
NameUnit Parameter
Max. Bending Capacitymm¢76*5
Bending Radius Rangemm30-350
Max. Bending Angle° 190°
Though Effective Distancemm3800
Bending Speed°/sec30
Bending Precision°±0.10
System Motor PowerKW7.5
Oil Pump Delivery VolumeL23
Max. PressureMpa16
L*W*H (Packaging Dimension)mm4800*1200*1350
Machine WeightTAbout 3.5
  • Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorGermany Siemens(Beide) or Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardTaiwan Shanghong (Imported)
CylinderShanghai Qifan
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerTaiwan Mingwei
ContactorSchneider
Transformer Wuxi Xinyu

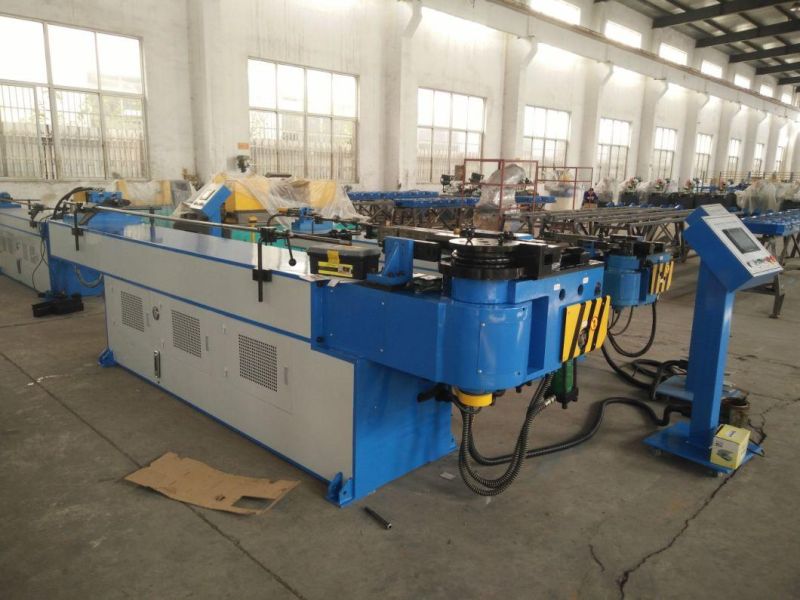

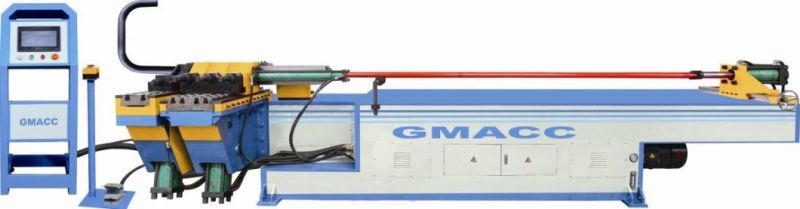

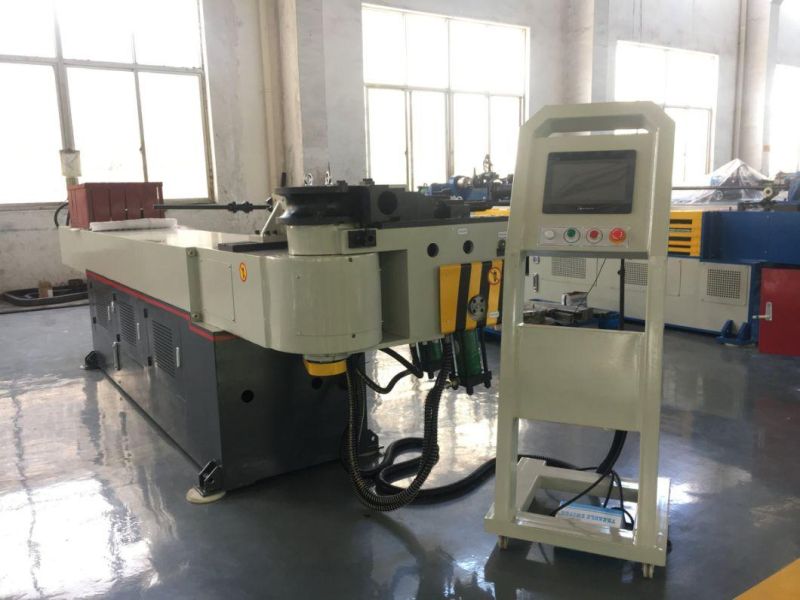

MODEL:GM-SB-76NCBMachine PhotosHigh Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb
High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb

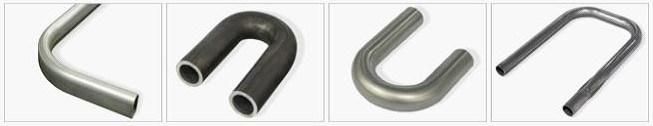

High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncbBending SamplesHigh Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncbTooling Samples  Bending Die                                     Clamp Die                                      Pressure Die

High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb  High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb    High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb

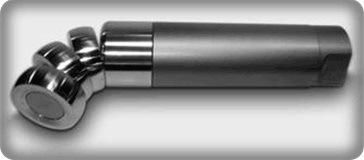

                                             Mandrel                              Wiper Die(optional)

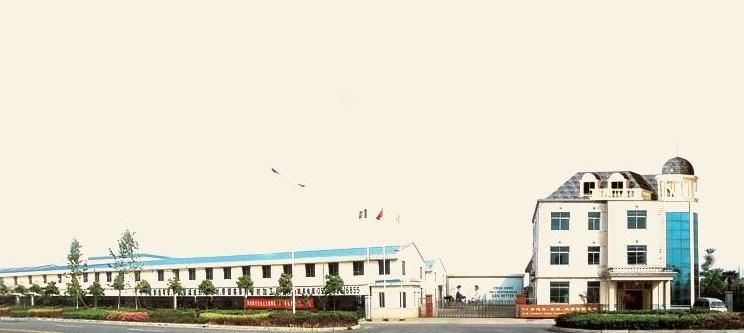

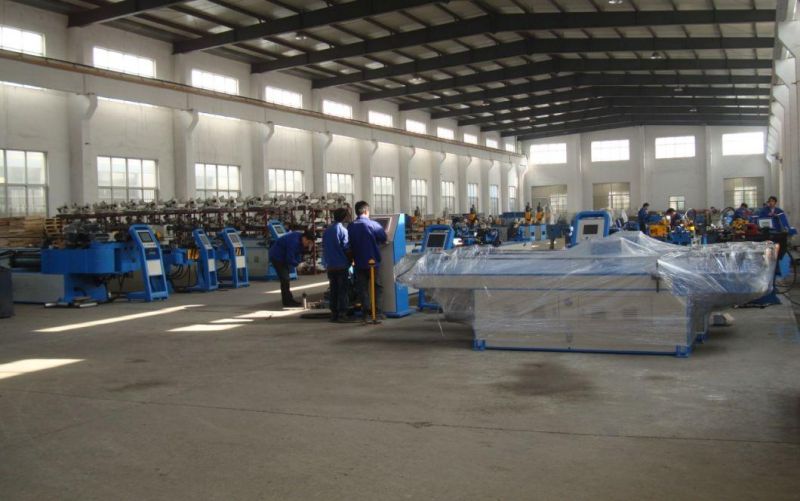

High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncbHigh Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb                                                    Company Photos

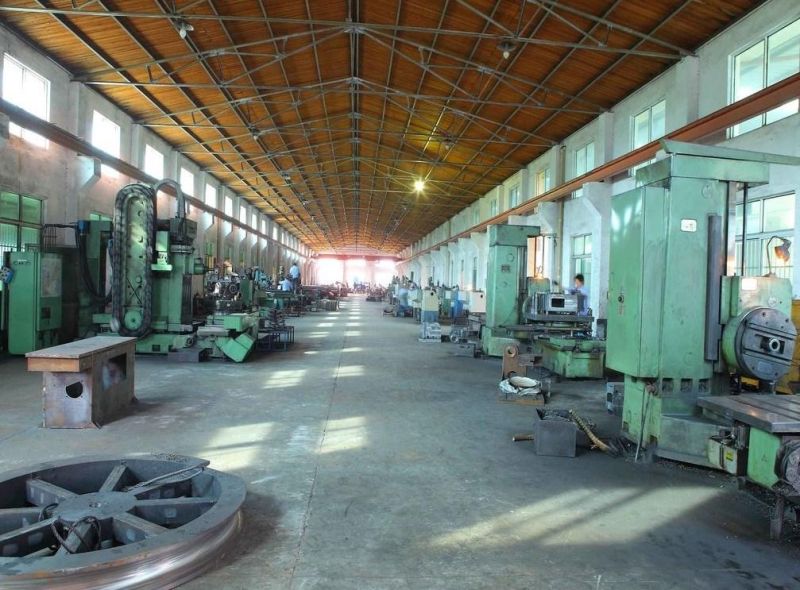

High Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncbCNC Machining CenterHigh Quality Fully Automatic High Speedipe Bending Machine GM-Sb-76ncb
