• Model NO.：W11-16X2000
• Type：Roller-Bending Machine
• Mechanical Type：Motor and Gear Drive
• Application：Machinery & Hardware, Textiles, Chemical, Medical
• Type for Fold-bending Machine：Hydraulic Fold-bend Machine
• Max Thickness：16mm
• Transport Package：Steel Pallet
• Specification：Capacity: 20x2500mm
• Trademark：HAVEN
• Origin：China
• HS Code：8462290
• Production Capacity：100 Units,Month

Basic Info.

Model NO. W11-16X2000 Type Roller-Bending Machine Mechanical Type Motor and Gear Drive Application Machinery & Hardware, Textiles, Chemical, Medical Type for Fold-bending Machine Hydraulic Fold-bend Machine Max Thickness 16mm Transport Package Steel Pallet Specification Capacity: 20x2500mm Trademark HAVEN Origin China HS Code 8462290 Production Capacity 100 Units/Month

Product Description

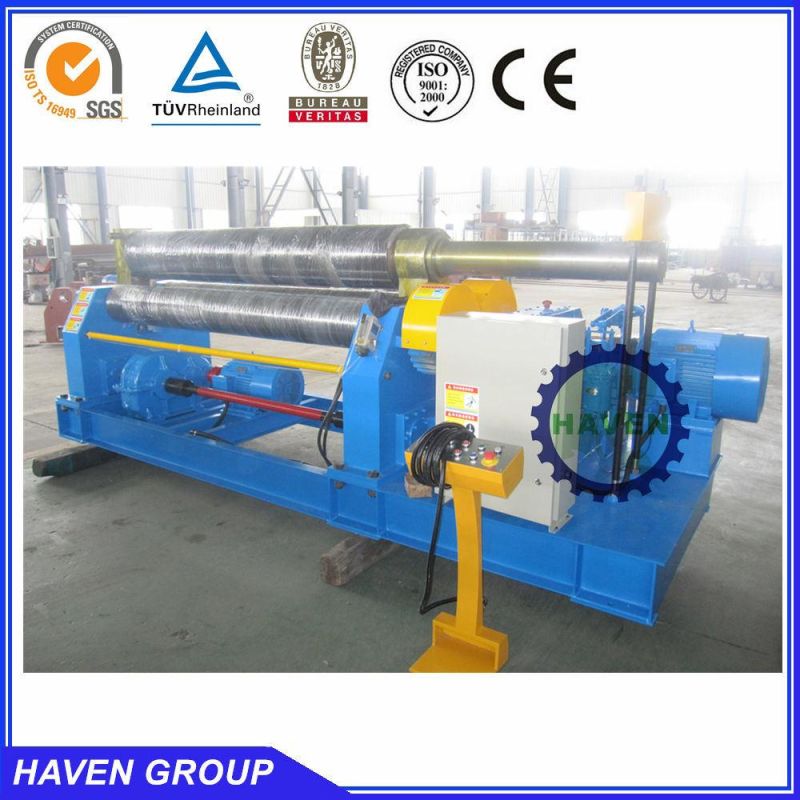

W11-16X2000 Mechanical Type three roller Rolling and Bending Machine:





W11S:
1. Main functions:
1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
4. The shape of "O", "U", "R" or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high working efficiency.
6. PLC is from SIEMENS or OMRON;
7. Digital Screen is from DELTA, Taiwan;
8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
9. Motors are from SIEMENS brand
10. Main electric parts are from SIEMENS or SCHNEIDER
11. Gearbox is from China famous brand
12. Machine frame is welded with quality steel plate
13. Top roller is made with 42CrMo forded alloy steel
14. Bottom rollers are made with 45# forged alloy steel
15. To strong the bottom rollers, support rollers are adopted


Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor	Net weight (About)
W11-4*3000	4mm	3000mm	5m/min	450mm	140mm	160mm	220mm	5.5kw	3200kgs
W11-6*2000	6mm	2000mm	5m/min	430mm	170mm	170mm	220mm	5.5kw	2890kgs

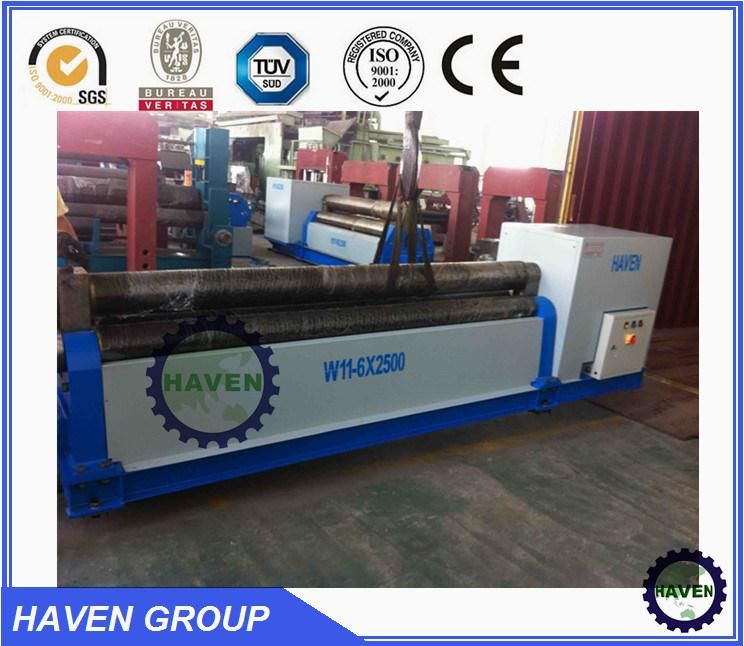

W11-6*2500	6mm	2500mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	3200kgs
W11-6*3000	6mm	3000mm	4m/min	600mm	240mm	190mm	280mm	7.5kw	4500kgs
W11-8*2000	8mm	2000mm	5m/min	480mm	190mm	170mm	220mm	5.5kw	3300kgs
W11-8*2500	8mm	2500mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-8*3000	8mm	3000mm	4m/min	600mm	240mm	180mm	280mm	11kw	5200kgs
W11-10*2000	10mm	2000mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	4100kgs
W11-10*3000	10mm	3000mm	4m/min	650mm	260mm	220mm	340mm	11kw	5800kgs
W11-12*2000	12mm	2000mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4800kgs
W11-12*2500	12mm	2500mm	4m/min	650mm	260mm	220mm	320mm	11kw	5800kgs
W11-12*3000	12mm	3000mm	4m/min	700mm	280mm	240mm	360mm	15kw	8000kgs
W11-16*1500	16mm	1500mm	5m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-16*2000	16mm	2000mm	4m/min	650mm	260mm	220mm	320mm	11kw	5050kgs
W11-16*2500	16mm	2500mm	4m/min	700mm	280mm	240mm	360mm	15kw	6500kgs
W11-16*3200	16mm	3200mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*2000	20mm	2000mm	4m/min	700mm	280mm	240mm	360mm	11kw	6450kgs
W11-20*2500	20mm	2500mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*3000	20mm	3000mm	4m/min	930mm	370mm	280mm	440mm	22kw	11500kgs
W11-25*2000	25mm	2000mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8400kgs
W11-25*2500	25mm	2500mm	4m/min	930mm	370mm	280mm	480mm	22kw	12500kgs
W11-30*2000	30mm	2000mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs


2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement


3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
