• Model NO.：W11-16X2500
• Type：Roller-Bending Machine
• Application：Machinery & Hardware, Textiles, Chemical, Medical
• Type for Cutting Machine：Rolling Machine
• Type for Fold-bending Machine：mechanical Type
• Machine：As your demand
• Power supply：380V,50Hz,3pH or as yoru demand
• Control voltage：24V
• Transport Package：Steel Pallet
• Specification：CE Standard, SGS
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：80 PCS,Month

Basic Info.

Model NO. W11-16X2500 Type Roller-Bending Machine Application Machinery & Hardware, Textiles, Chemical, Medical Type for Cutting Machine Rolling Machine Type for Fold-bending Machine mechanical Type Machine As your demand Power supply 380V/50Hz/3pH or as yoru demand Control voltage 24V Transport Package Steel Pallet Specification CE Standard, SGS Trademark HAVEN Origin China HS Code 84622990 Production Capacity 80 PCS/Month

Product Description

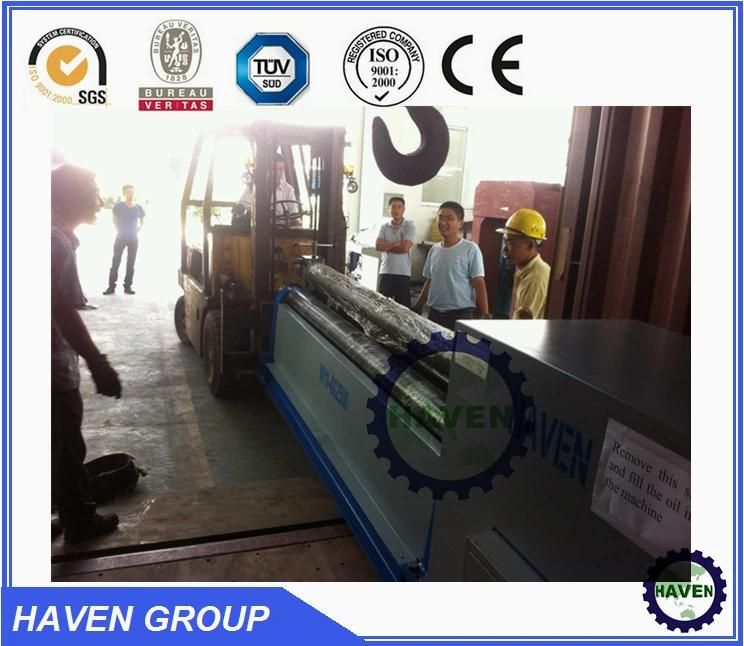

W11-16X2500 W11 Series Mechanical Type 3 Rollers Rolling and Bending Machine







1. Main functions:
1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
4. The shape of "O", "U", "R" or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high working efficiency.
6. PLC is from SIEMENS or OMRON;
7. Digital Screen is from DELTA, Taiwan;
8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
9. Motors are from SIEMENS brand
10. Main electric parts are from SIEMENS or SCHNEIDER
11. Gearbox is from China famous brand
12. Machine frame is welded with quality steel plate
13. Top roller is made with 42CrMo forded alloy steel
14. Bottom rollers are made with 45# forged alloy steel
15. To strong the bottom rollers, support rollers are adopted

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.




Model	Max.   thickness (mm)	Max.   width (mm)	Max.   Bending speed(m/min)	Workpiece Min.   Dia. (mm)	Top  roller  dia   (mm)	Bottom  roller Dia.     (mm)	Dis.   of  bottom rollers  (mm)	Main  motor   power(kw)	Net  weight (t)	Overall Dimensions (cm)

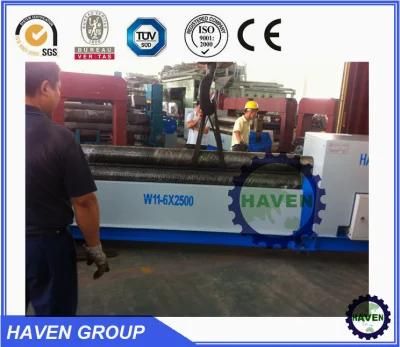

W11-6*2500	6	2500	7.0	500	190	170	260	7.5	4.6	431*121*133
W11-  6*3200	6	3200	7.0	500	240	200	310	11	7.2	520*140*120
W11-8*2000	8	2000	7.0	450	190	170	260	7.5	4.1	381*121*133
W11-  8*2500	8	2500	6.0	500	230	190	300	11	6.7	450*142*161
W11-10*2000	10	2000	6.0	500	230	190	300	11	5.9	405*142*161
W11-12*2500	12	2500	5.0	750	280	240	360	22	9	500*150*180
W11-12*3200	12	3000	5.0	650	280	240	360	22	12.1	500*150*180
W11-16*2500	16	2500	5.0	750	280	240	360	22	8.5	500*150*180
W11-16*3200	16	3200	5.0	900	340	280	440	30	15.6	630*160*190
W11-20*2000	20	2000	5.0	750	280	240	360	22	7.8	450*150*190
W11-20*2500	20	2500	5.0	850	340	280	440	30	14.7	560*160*190
W11-25*2500	25	2500	4.5	900	380	300	490	37	16.7	600*160*215
W11-25x3200	25	3200	4.0	1200	400	310	520	37	20.5	680*180*215
W11-30*2500	30	2500	4.0	1200	400	310	520	40	21.6	580*180*215
W11-30*3000	30	3000	4.0	1200	400	310	520	45	25.3	630*180*215
