• Model NO.：W11F-1.5X1300
• Type：Roller-Bending Machine
• Mechanical Type：Capacity: 8X2000mm
• Application：Machinery & Hardware
• Type for Cutting Machine：Rolling Machine
• Type for Fold-bending Machine：Rolling Machine
• Max. width：1300mm
• Max Thickness：1.5mm
• Transport Package：Steel Pallet
• Specification：Capacity: 8x2000mm
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：50 Units,Month

Basic Info.

Model NO. W11F-1.5X1300 Type Roller-Bending Machine Mechanical Type Capacity: 8X2000mm Application Machinery & Hardware Type for Cutting Machine Rolling Machine Type for Fold-bending Machine Rolling Machine Max. width 1300mm Max Thickness 1.5mm Transport Package Steel Pallet Specification Capacity: 8x2000mm Trademark HAVEN Origin China HS Code 84622990 Production Capacity 50 Units/Month

Product Description

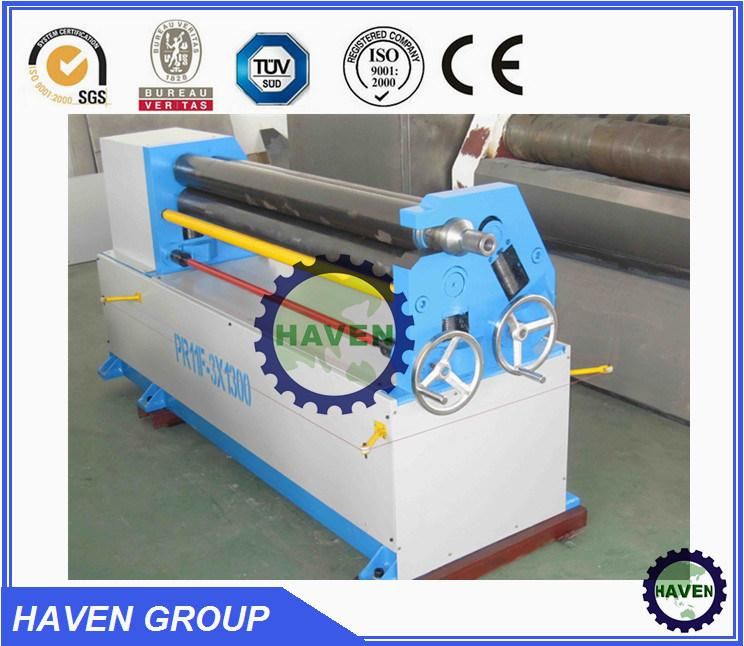

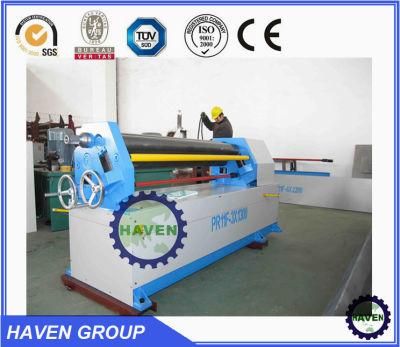

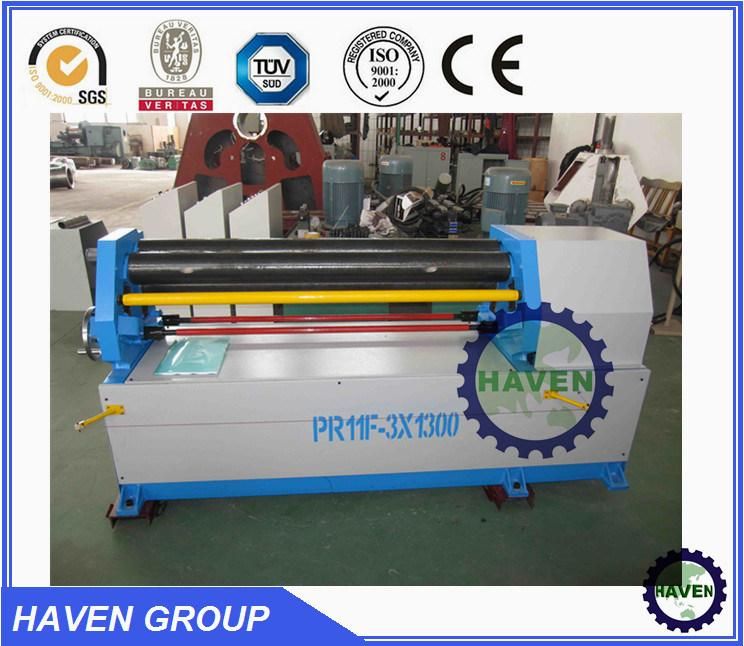

W11F-1.5X1300 Bending Roll Machine/ 3 Rollers Plate Bending Machine/ Steel Plate Rolling Machine





1. Main functions:
1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
4. The shape of "O", "U", "R" or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high working efficiency.
6. PLC is from SIEMENS or OMRON;
7. Digital Screen is from DELTA, Taiwan;
8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
9. Motors are from SIEMENS brand
10. Main electric parts are from SIEMENS or SCHNEIDER
11. Gearbox is from China famous brand
12. Machine frame is welded with quality steel plate
13. Top roller is made with 42CrMo forded alloy steel
14. Bottom rollers are made with 45# forged alloy steel
15. To strong the bottom rollers, support rollers are adopted

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.




Model	Max. thick (mm)	Max. width (mm)	Yield Strength (MPa)	Working speed (m/min)	Min. work Diameter (mm)	Top roller diameter (mm)	Bottom roller Diameter (mm)	Side roller diametr (mm)	Main Motor power (Kw)	Side Roller Adjust     Motor ( Kw )
W11F-1.5*1300	1.5	1300	245	6	250	80	80	80	1.5	without
W11F-3.0*1300	3	1300	245	8.1	250	125	125	125	1.5	without
W11F-2.0*1600	2	1600	245	8.1	250	125	125	125	1.5	without
W11F-3.0*2000	2	2000	245	8.1	250	125	125	125	2.2	0.75
W11F-2.0*2500	2	2500	245	5.4	250	130	130	130	2.2	0.75
W11F-3.0*2500	3	2500	245	5.4	250	135	135	135	2.2	0.75
W11F-4.0x2000	4	2000	245	4.0	450	145	145	145	3	1
W11F-6.0x2000	6	2000	245	4.0	450	160	160	160	4	1.5
