Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

Nanjing Jinqiu CNC Machine Tool Co., Ltd.
  • Warranty:2-year
  • Condition:New
  • Certification:CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy
  • Type:Cnc Bending Machine

Base Info

  • Model NO.:KCN-10040
  • Table Length:4000mm
  • Max.Slider Stroke:200mm
  • Between Columns:3200mm
  • Throat Depth:350mm
  • Main Motor Power:7.5kw
  • Colour:Customized
  • Voltage:220,380,Customized
  • Controller System:CT12,CT8?Da52s,
  • Brand:Kingball
  • Gear Pump:Sunny
  • Transport Package:Plastic
  • Specification:3200*1450*2150mm
  • Trademark:KING BALL
  • Origin:China
  • HS Code:84622990
  • Production Capacity:200,Sets,Month

Description

17Overall dimensionL   4500mmW 1750mmH  2450mm18Weight8000kg
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

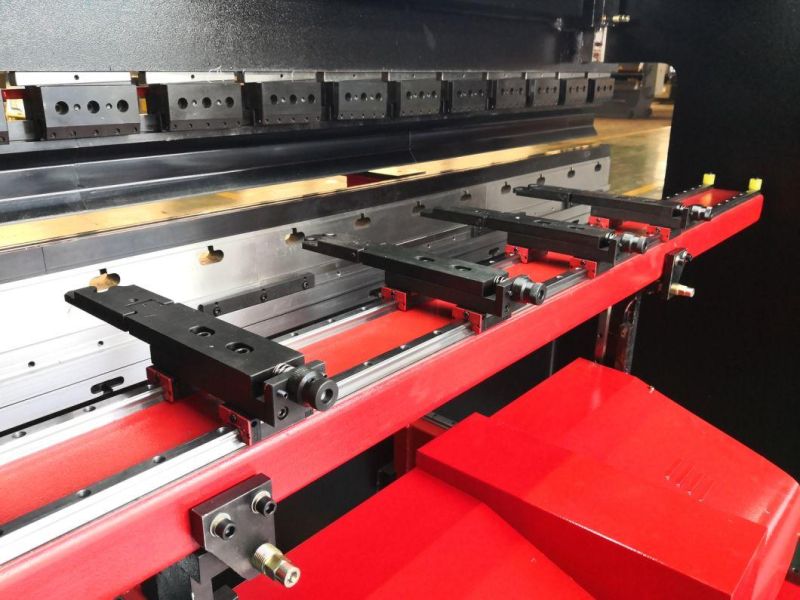

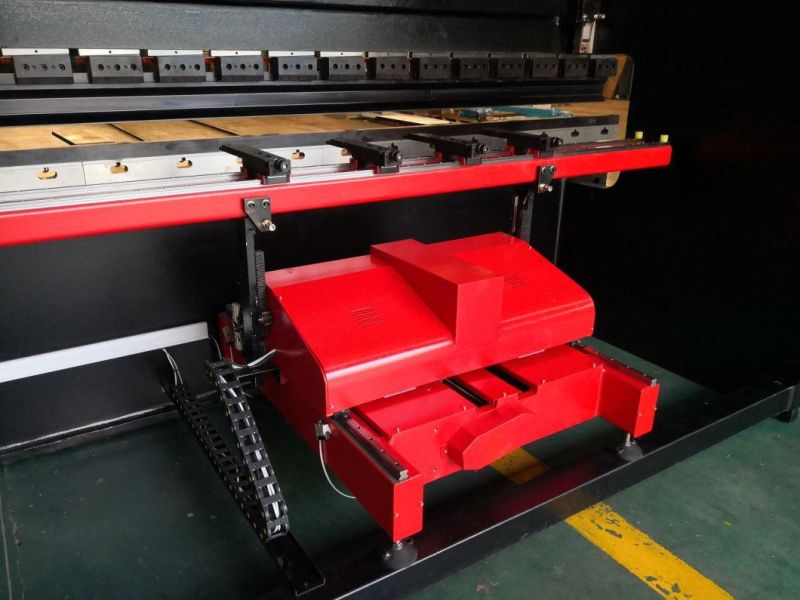

Backgauge with ball screw and linear guide, high precision, fast speed and low noise.
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040        Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

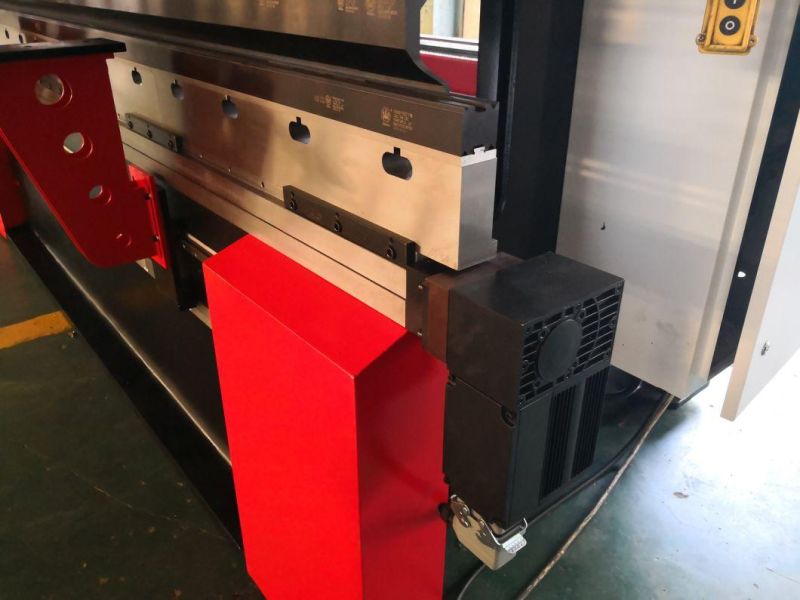

Double sliding front support arm installed on the linear guide, movable easy.              High precision electric table crowning
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040
        Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

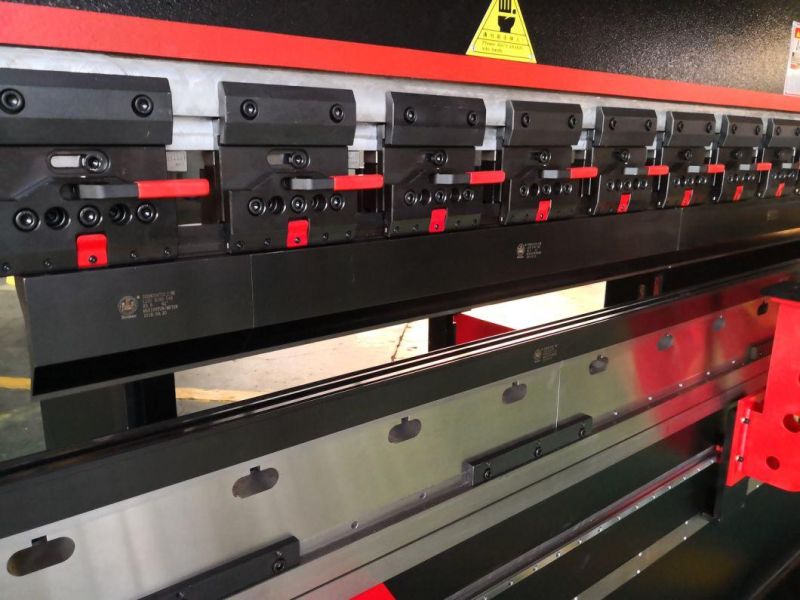

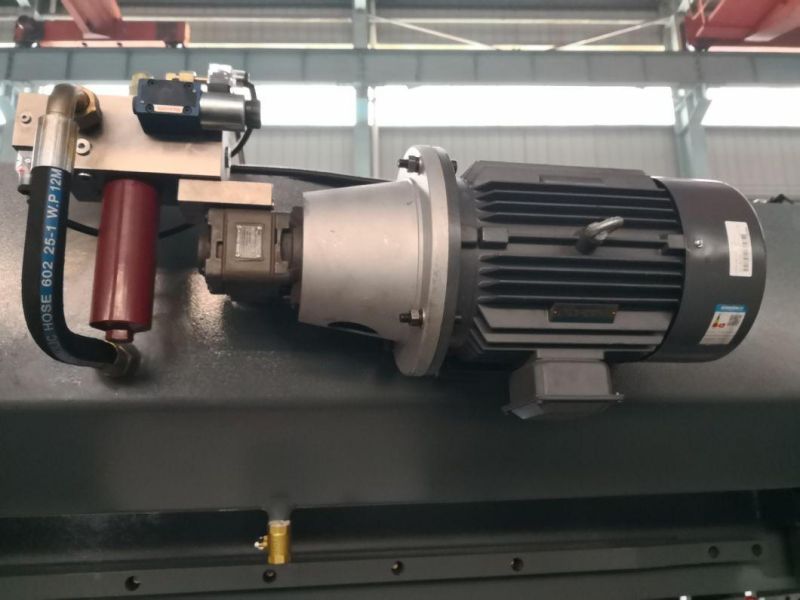

Siemens main motor German brand.                                                 European style quick release clamping.
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040       Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

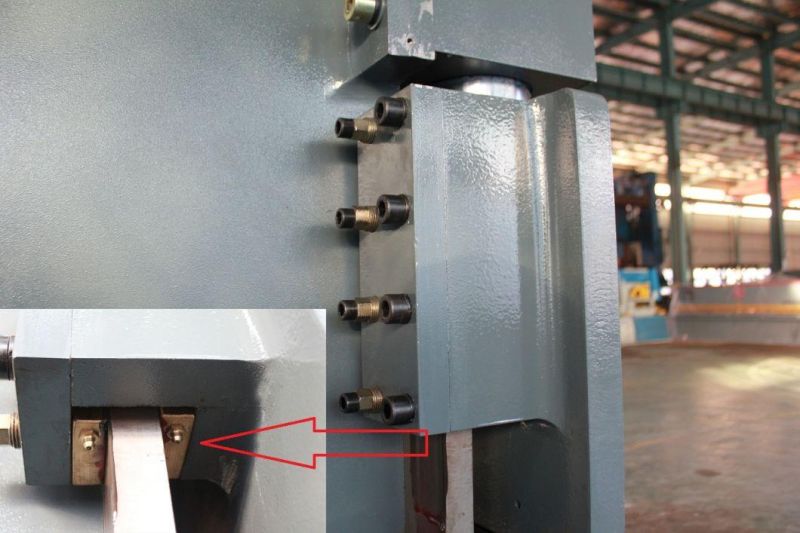

The guideway use the brass, wear-resisting, long service life.

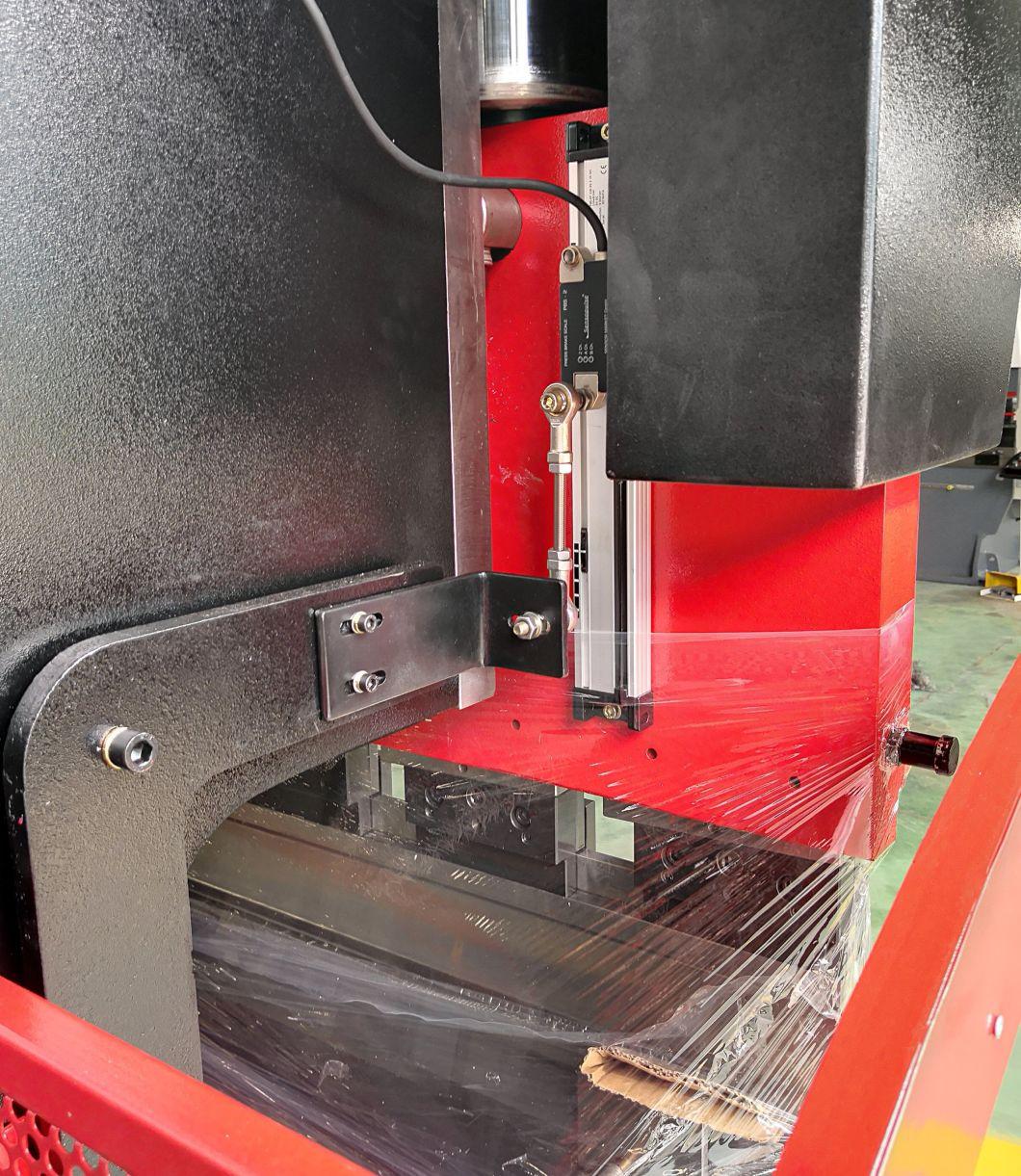

High-precision grating scale mounted on C-board.
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040
         Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040

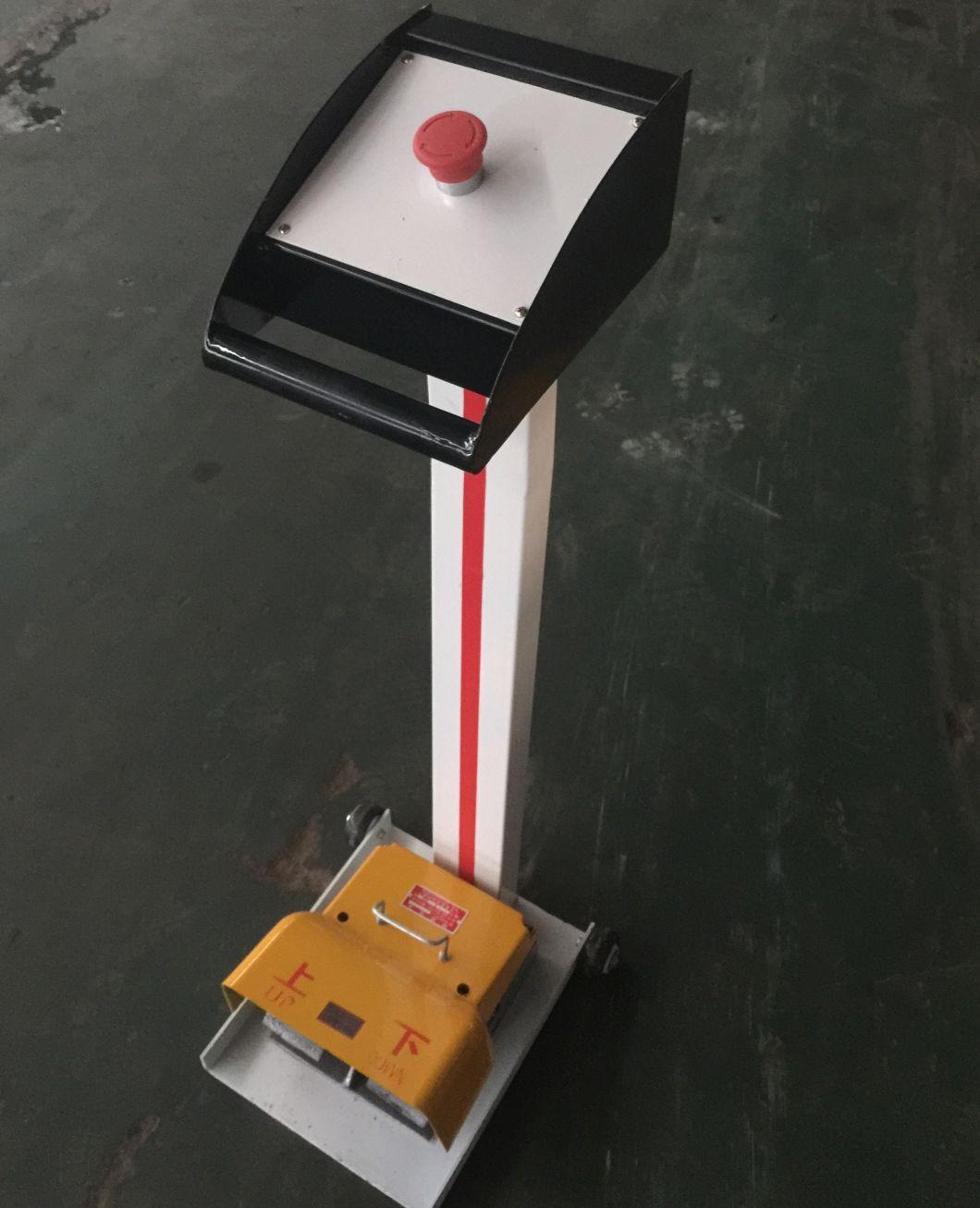

The stopper move left and right on two linear guides.                        Pedal switch with emergency stop.

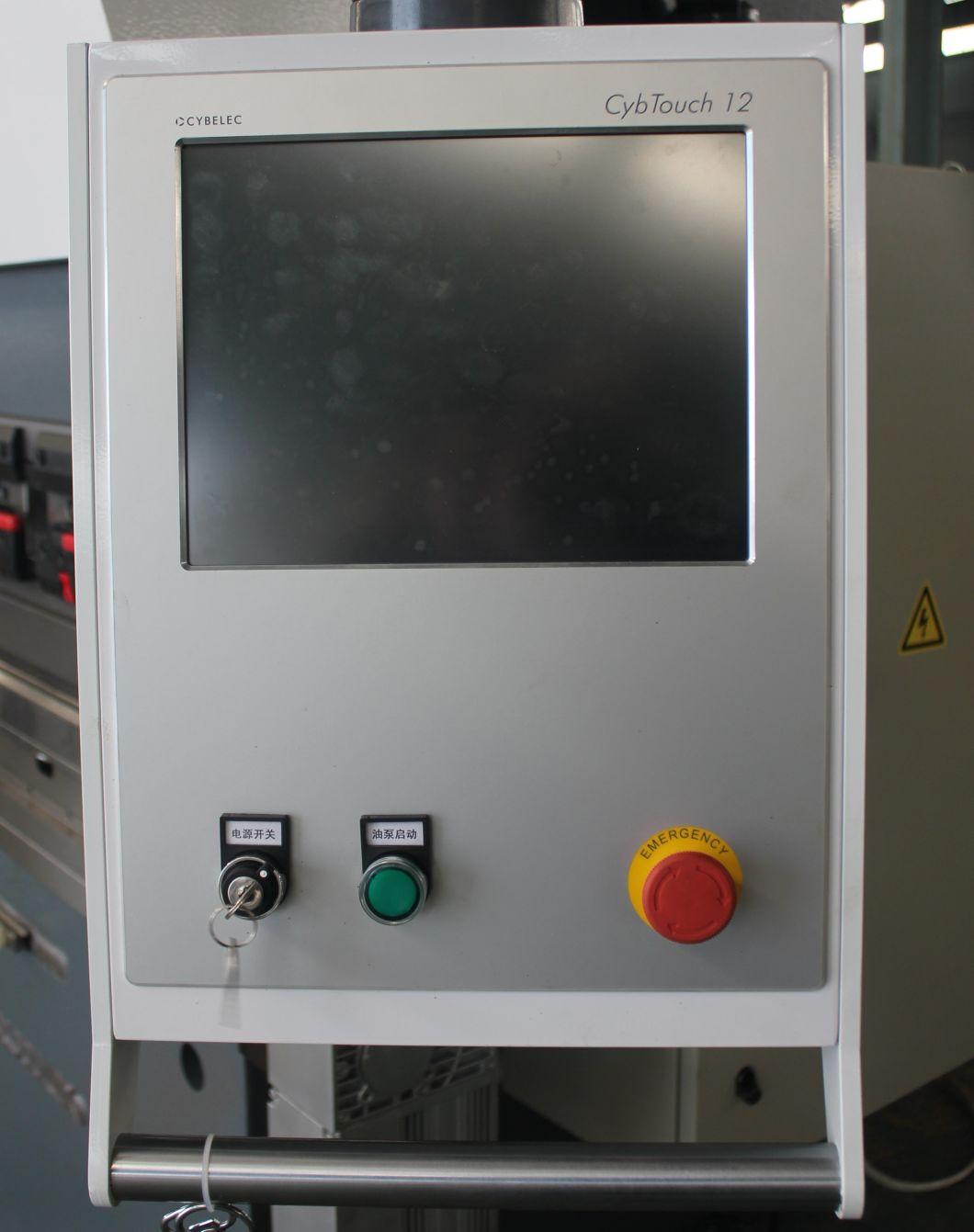

Main configurationNameProducerCNC controllerCT12                     Main motorSiemensElectrical componentsSchneiderGear pumpSunnySeal ringNOKHydraulic systemBoschrexrothBall screw,Linear guideHIWINGrating rulerGIVITubing connectorEMBServo Motor and driver ThinkvoCybTouch 12 CNC controller
Cost Effective Electro Hydraulic Synchronous CNC Press Brake Machine Kcn-10040


Easy Operating

Large, vivid and high-contrast fully touchscreen.
Simple pages, clear display, large keys.
Intuitive user-friendly interface.
Complete programming for efficient mass-production with multiple bends.
Easy single bends with Easy Bend page.
On-line help and interactive warning pop-ups.
Comfortable wireless data backup and software updating using PC or Notebook.
Large variety of languages available.

Better Bending

Various automatic calculations of bend functions.
Bending sequences and programs can be memorized.
Angle, pressure and crowning management.
Easy manual movement.
Offline 2D software available.

Powerful

Controls 4 axes.
Automatic bend sequencing (option).
Bend allowance calculation.
Pressure - crowning calculation.
Modular tools for each part or bend.
Angle and back gauge correction.
Tele maintenance via wireless connection with PC or notebook.
USB port for memory stick for data transfer/backup.


The standard accessories are in the below:
  1. Anchor bolt
  2. Hex nut
  3. Seal ring
  4. Gasket
  5. Grease gun
  6. Allen wrench
  7. Foot switch
  8. Front support arms
  9. Electrical box key, control panel key
  10. Operation manuals
Our Service

Pre-sales services:

1. inquiry and consulting support
2. sample testing support
3. visit our factory

After-sales services:

1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
