Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

Nanjing Jinqiu CNC Machine Tool Co., Ltd.
  • Warranty：2-year
  • Condition：New
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type：Press Brake

Base Info

  • Model NO.：KCN-25060
  • Table Length：6000mm
  • Max.Slider Stroke：250mm
  • Between Columns：4800mm
  • Throat Depth：400mm
  • Main Motor Power：18.5kw
  • Voltage：220,380,Customized
  • Controller System：E21s
  • Return Speed：90mm,S
  • Gear Pump：Sunny
  • Brand：Kingball
  • Backgauge Stoppers：2
  • Transport Package：Plastic
  • Specification：4500*2150*3100mm
  • Trademark：KINGBALL
  • Origin：China
  • HS Code：84622990
  • Production Capacity：200,Sets,Month

Description

No.ItemParameterUnit1Nominal pressure2500KN2Table length6000mm3Max.Slider stroke250mm4Max.Shut height530mm5Between columns4800mm6Throat depth400mm7Main motor power18.5KW8Down Speed90mm/S9Pressing Speed8mm/S10Return Speed90mm/S11Control axesX+Y/12X axes Stroke500mm13Backgauge Stoppers2/14Overall dimensionL   6500mmW 2200mmH  3500mm15Weight25500kg
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060


Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

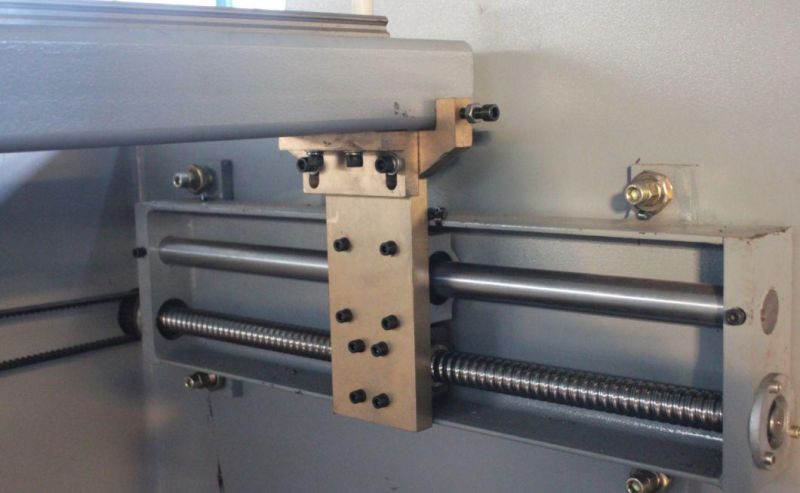

Backgauge with ball screw and round guide

Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

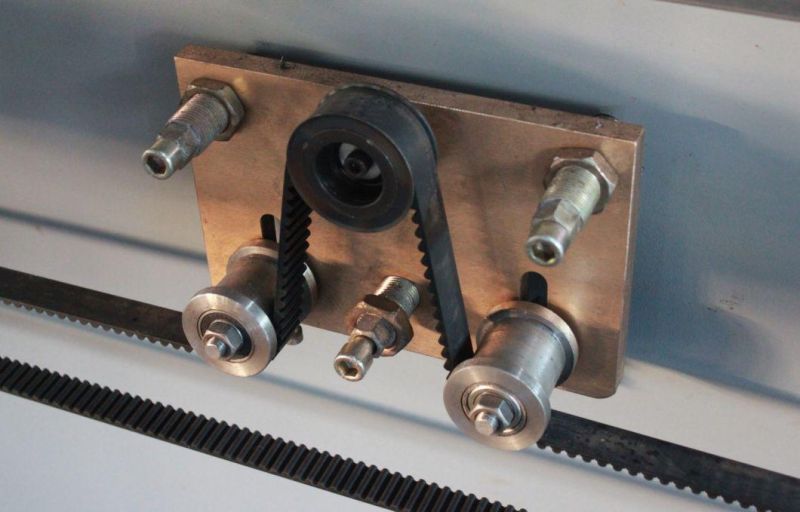

Multifunction adjustment of the tightening wheel.
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

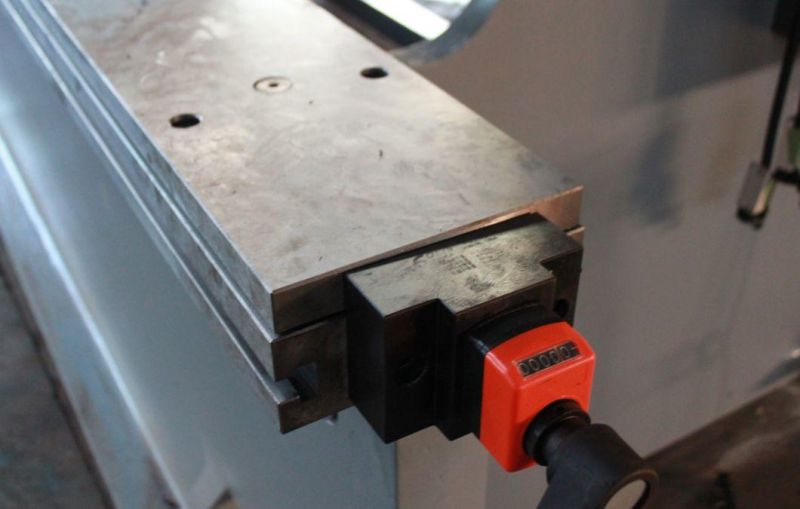

 Manual table crowning(optional).
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

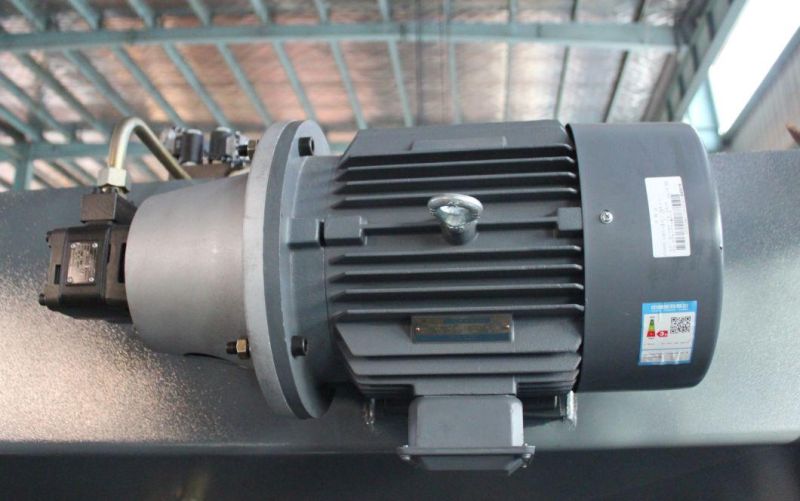

Siemens main motor German brand.
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

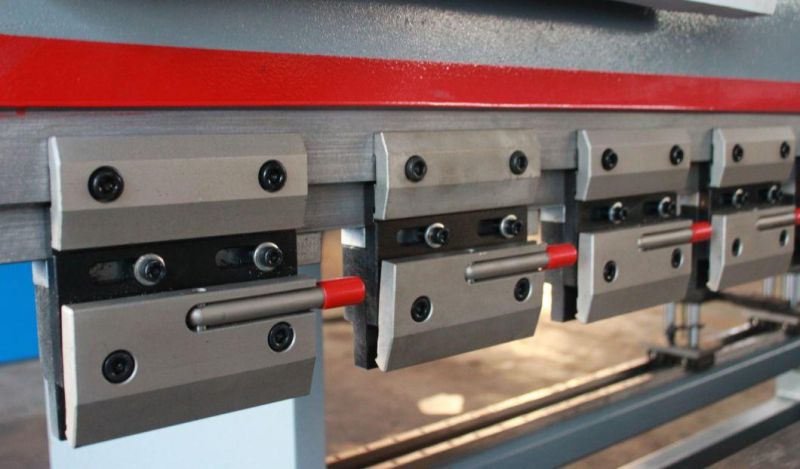

European style quick release clamping
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

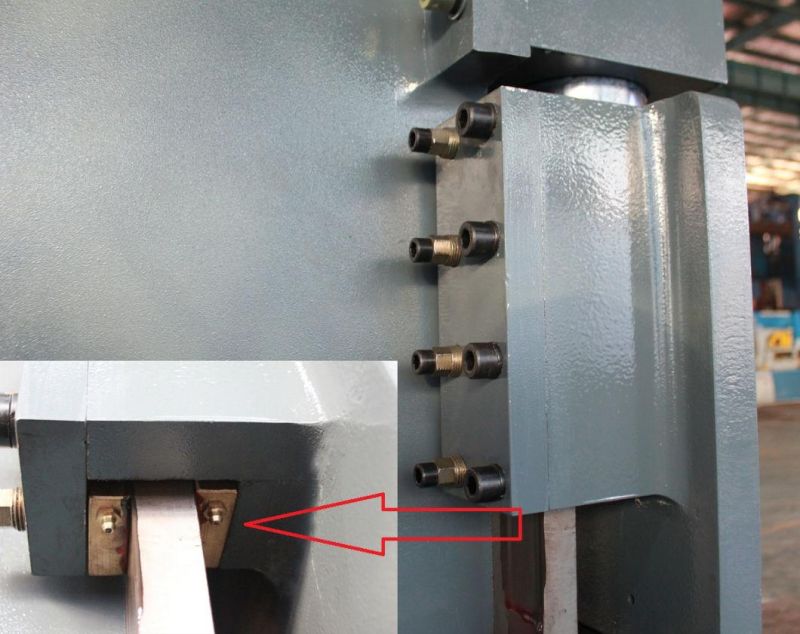

The guideway use the brass, wear-resisting, long service life.

Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

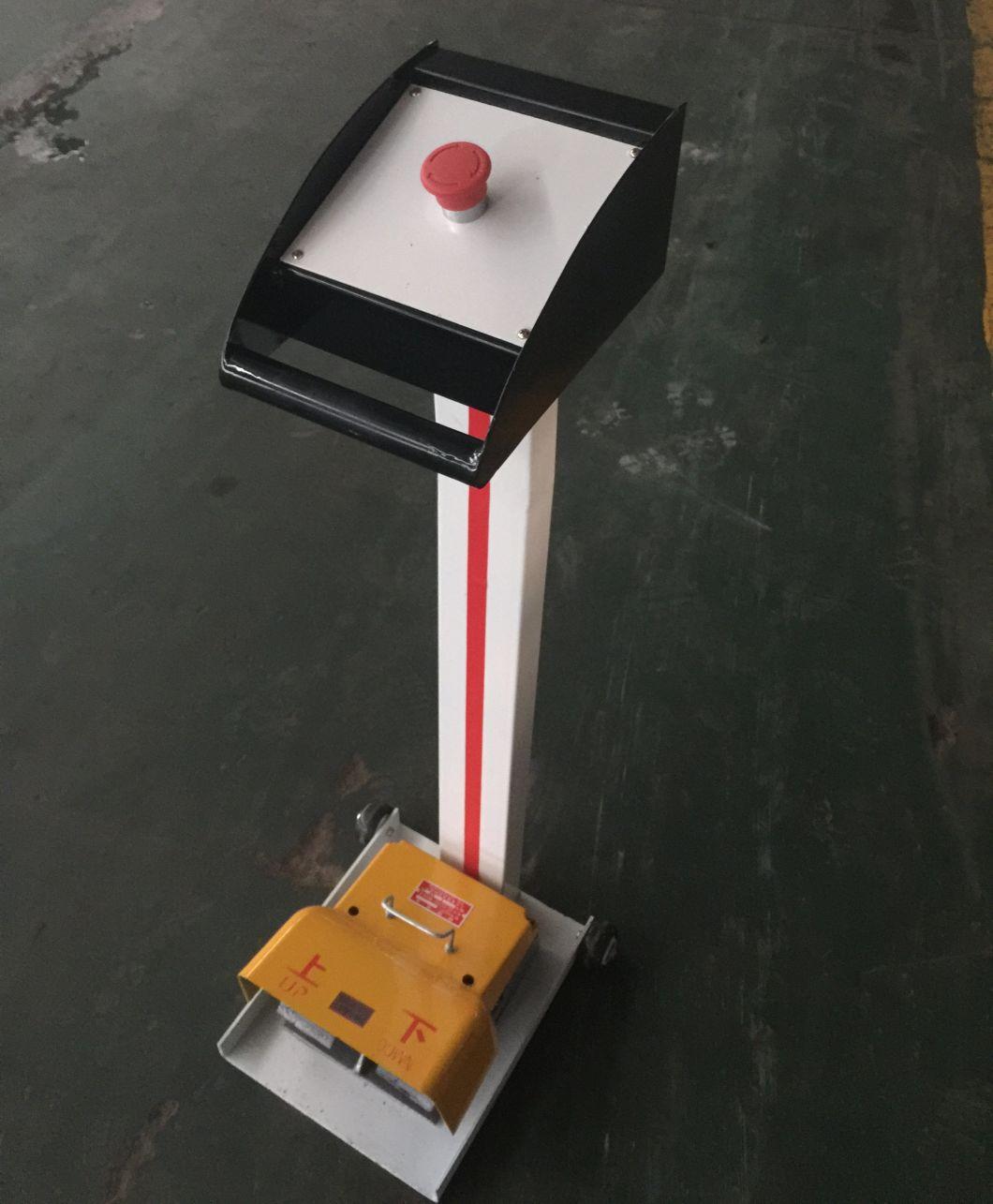

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

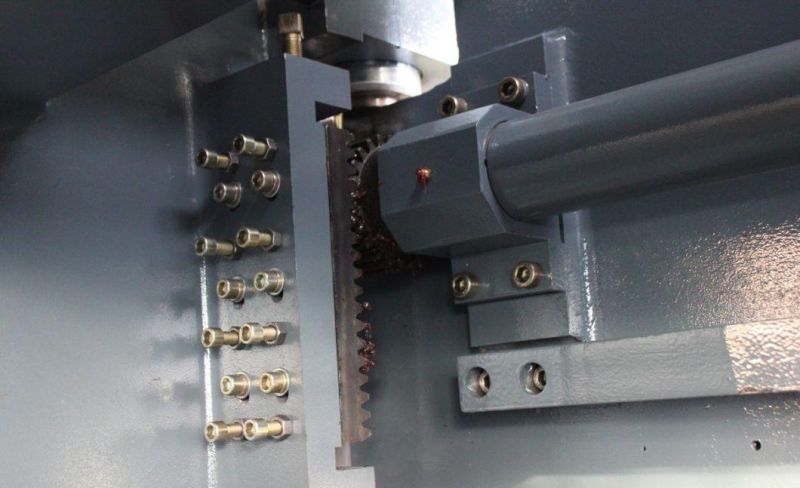

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization.The connector use wear - resistant brass.
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060

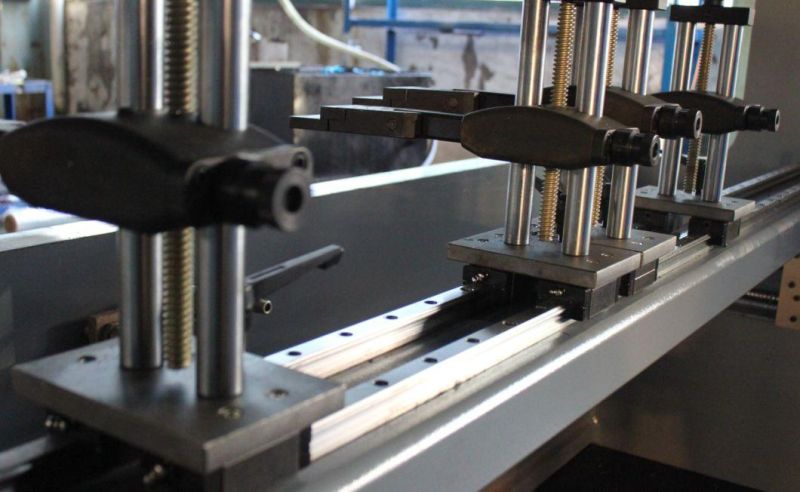

The stopper up and down by manual, move left and right on two linear guides.

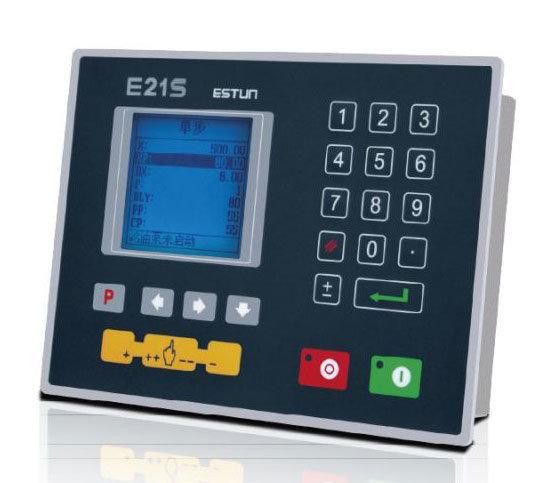

Main configurationNameProducerCNC controllerE21 Estun       China BrandMain   motorSiemens         Germany  brandElectrical componentsSchneider        France  brandGear  pumpSunny           USA  brandSeal  ringNOK                  Japan  brandHydraulic systemBoschrexroth    Germany  brandBall screw ,Linear guideHIWIN        Taiwan  brandTubing connectorEMB           Germany  BrandVariable frequency drive  Shihlin          Taiwan    brandE21 NC controller
Torsion Bar Synchronous Nc Press Brake Machine Kcn-25060
Backgauge and block control
Control for general AC motors, frequency inverter Intelligent positioning
Stock counter Holding/decompression time setting
Program memory of up to 40 programs Up to 25 steps per program
One side positioning Retract function
One key backup/restore of parameters mm/inch
Chinese /English

The standard accessories are in the below:
  1. Anchor bolt
  2. Hex nut
  3. Seal ring
  4. Gasket
  5. Grease gun
  6. Allen wrench
  7. Foot switch
  8. Front support arms
  9. Electrical box key, control panel key
  10. Operation manuals
Packing
Press brake is packaged by plastic,toolings are packaged by wooden.

Our Service

Pre-sales services:
1. inquiry and consulting support
2. sample testing support
3. visit our factory

After-sales services:

1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
