3m Steel Plate Folding Machine with Da66t System

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation:Automatic
  • Suitable for:Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel
  • Type:Press Brake

Base Info

  • Model NO.:HPB 100T3200
  • System:Da66t
  • Pressure:100ton
  • Bending Length:3200mm
  • Bending Thickness:4mm with Length of 3m
  • Weight:7900kg
  • 2D Programming:Yes
  • Compensation:Automatic CNC Compensation
  • Hydraulic System:Bosch Rexroth
  • Main Motor:Energey Saving Servo Motor
  • Main Electrics:Schneider
  • Transport Package:40hq
  • Specification:3800× 1750× 2580mm
  • Trademark:lzk
  • Origin:China, Maanshan
  • HS Code:8462219000
  • Production Capacity:100 Set,Month

Description

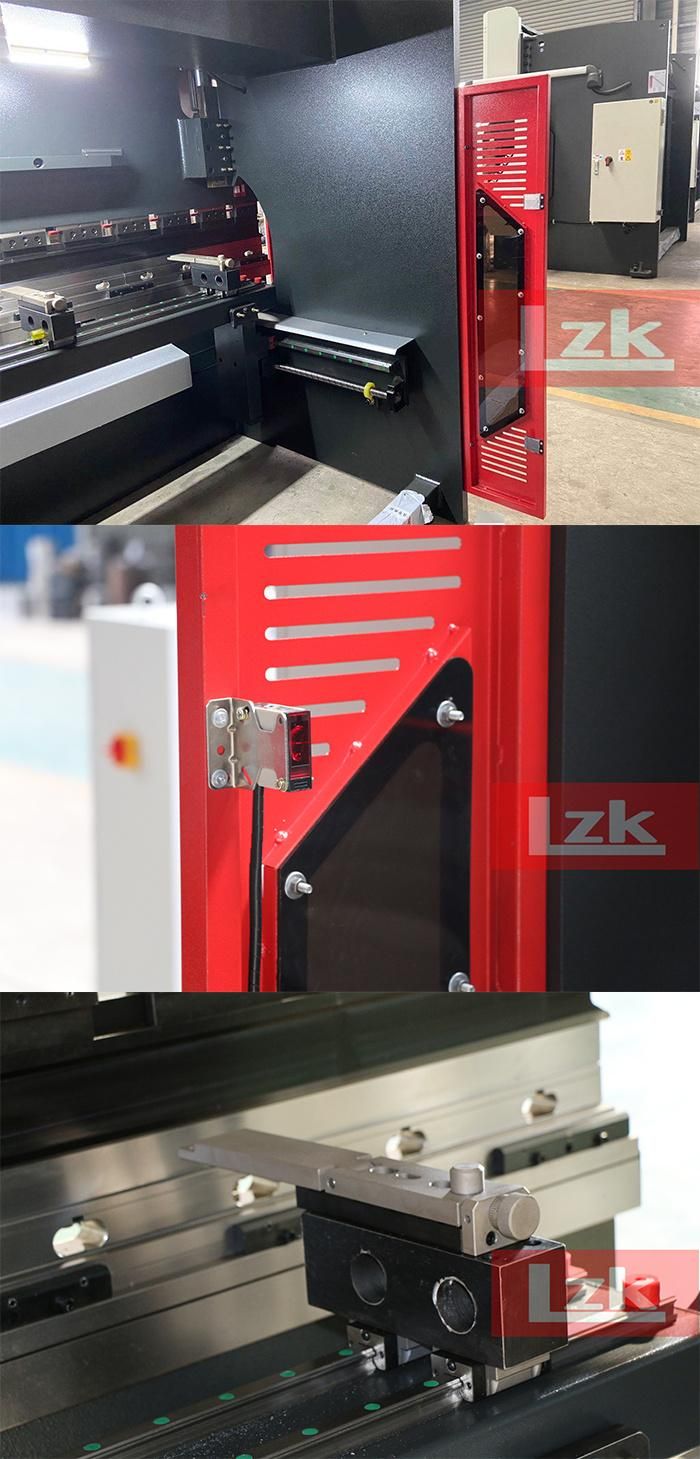

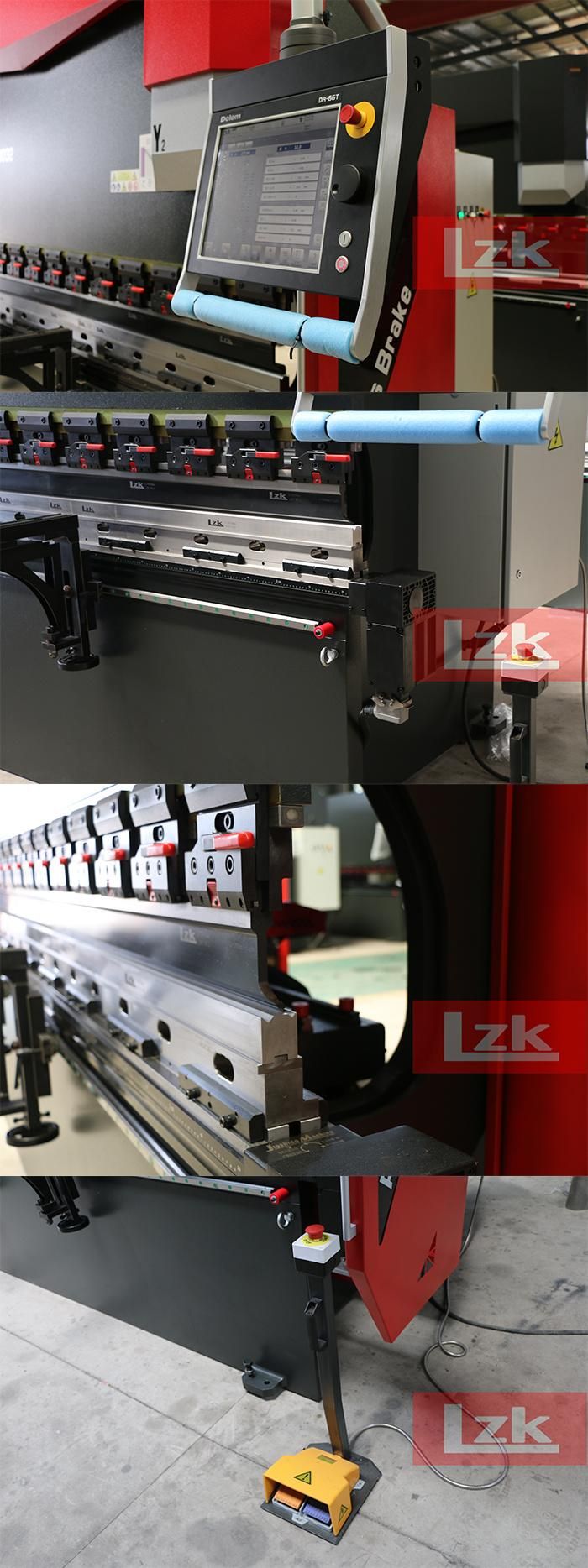

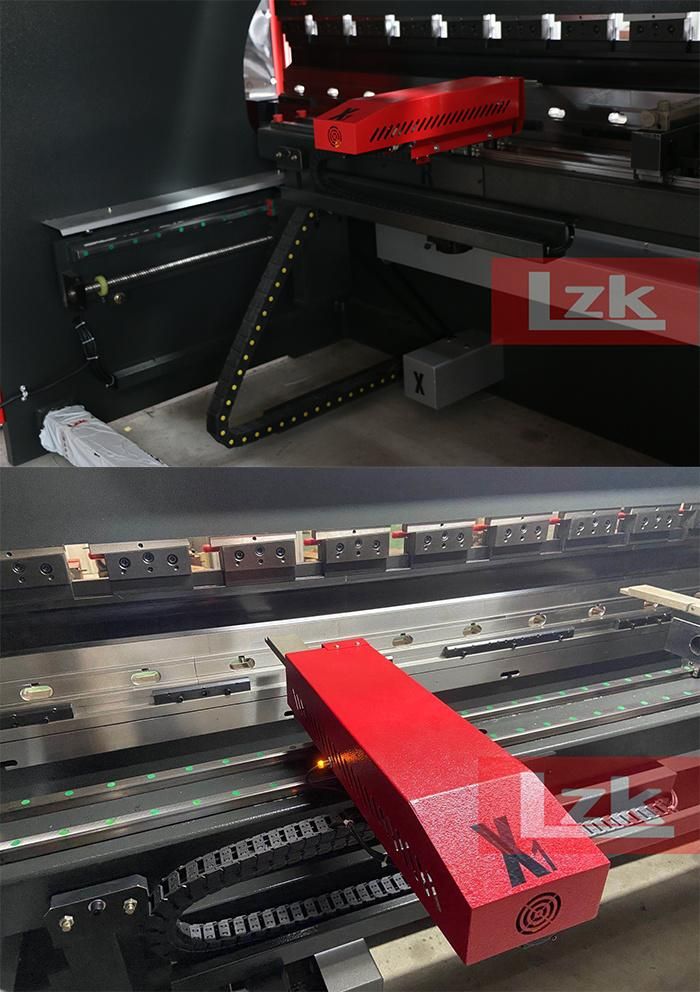

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.3m Steel Plate Folding Machine with Da66t SystemDELEM DA66T CNC SYSTEMQuick clampElectrical crowning One set of standard V8+V12 die, it can also be customized by customer's productFoot pedal3m Steel Plate Folding Machine with Da66t SystemBack guage is X, R, X1 axes Ball screw and linear guide railServo motor controlled X, R, X1 axes3m Steel Plate Folding Machine with Da66t SystemLight curtain for safety protectionWith 2 backgauge fingers as standard3m Steel Plate Folding Machine with Da66t SystemMain motor is with SERVO MOTOR, good for energy saving, low noise, longer lifeSunny oil pumpBosch Rexroth valve 3m Steel Plate Folding Machine with Da66t SystemSchneider main electrical componentsServo drive

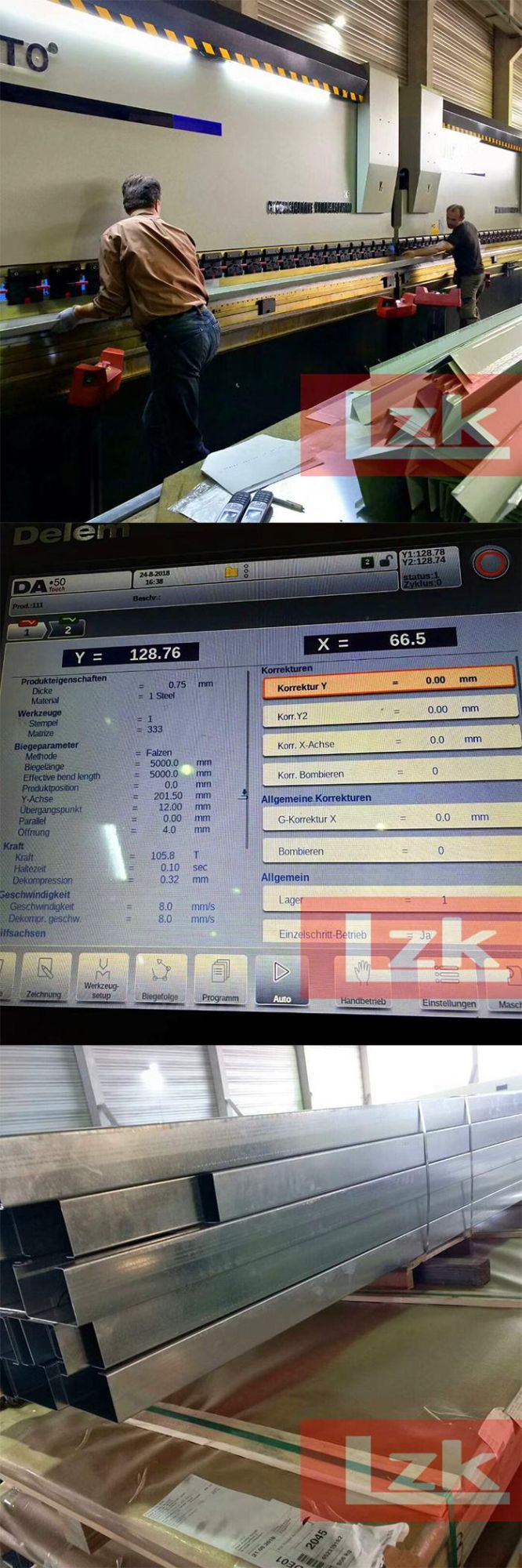

German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

3m Steel Plate Folding Machine with Da66t System

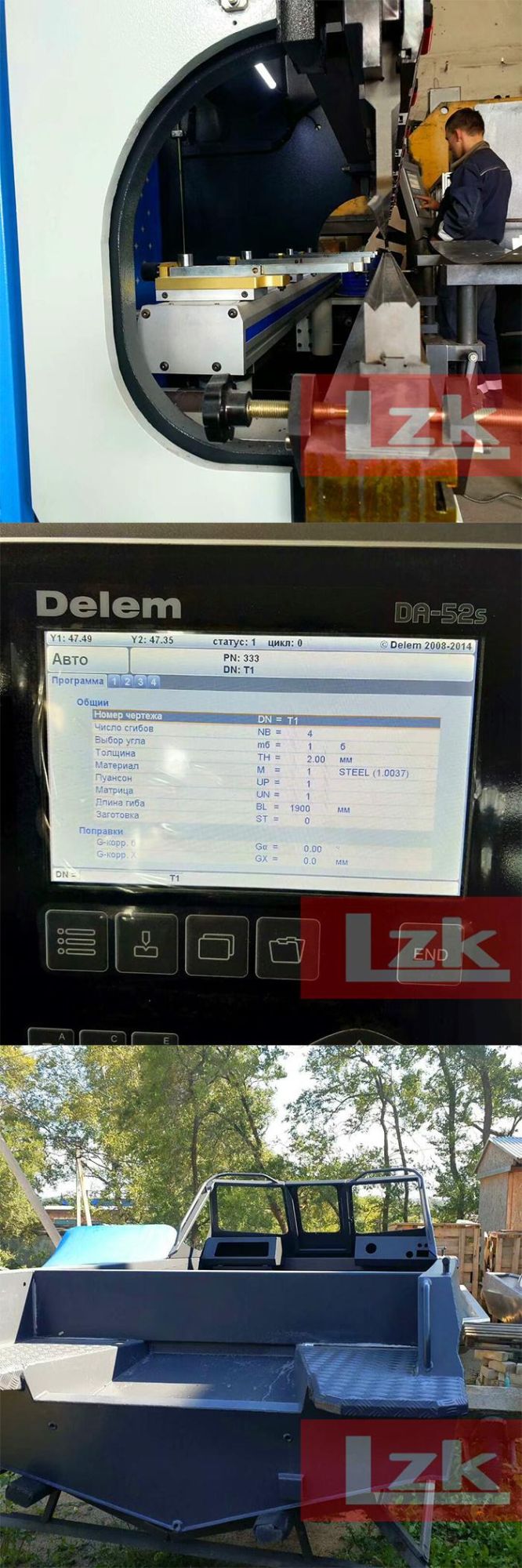

Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.
3m Steel Plate Folding Machine with Da66t System
Customer form different countries come for inspection and cooperation.
