100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers

Nantong Woke Machinery Equipment Co., Ltd.
  • Waterproof Rating：IPX-3
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2008, CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：WE67K-100T,3200
  • Type：Press Brake
  • Control System：Delem, Cyb
  • Control Axis：Y1, Y2, X, R, Z1, Z2, V
  • Power Supply：Customized as You Request
  • Hydraulic System：Rexroth
  • Auto Crowning：Standard
  • Processing Material：Stainless, Mild Steel, Aluminum, So on
  • Machine Color：Customized
  • Core Electrics：Famous Brand in World
  • Voltage：220-450V
  • Key Word：CNC Press Brake Machine
  • Transport Package：Nude Packing, Steel Pallet
  • Specification：12CBM
  • Trademark：WOKE
  • Origin：Nantong, Jiangsu, China
  • HS Code：8462299000
  • Production Capacity：40PCS,Month

Description

The CNC press brake uses the top tool and v dies (general or special) to bend the cold metal plate into workpieces with various geometric section shapes. It is a plate forming machine designed for cold-rolled sheet metal processing. It is widely used in plate bending processing in automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicle and other industries. With the development of economy and society, users have higher and higher requirements for the automation of the bending machine, especially for the bending of some metal sheets or lengthened workpieces, which have high requirements for straightness and angle. These workpieces need NC bending machine for bending processing. CNC bending machine not only has high speed, high efficiency, but also high precision, and the scrap rate of bent workpieces is very low.


TECHNICAL PARAMETERS

ModelNominal pressureWorktable lengthDistance between columnsThroat depthOpeningMotorDimension(LXWXH)
 TonmmmmmmmmKwmm
40T/1500401500118025032541850×1300×2100
40T/2000402000155025032542250×1300×2100
40T/2500402500205025032542750×1300×2100
63T/250063250020502503605.52750×1350×2230
63T/320063320026002503605.53450×1350×2230
80T/250080250020503203807.52750×1400×2350
80T/320080320026003203807.53450×1400×2350
100T/2500100250020503203807.52750×1450×2380
100T/3200100320026003203807.53450×1450×2380
100T/4000100400032003203807.54250×1450×2380
125T/2500125250020503203807.52750×1450×2380
125T/3200125320026003203807.53450×1450×2380
125T/4000125400032003203807.54250×1450×2380
160T/250016025002050320380112750×1700×2600
160T/320016032002600320450113450×1700×2600
160T/400016040003200320450114250×1700×2600
200T/320020032002600320470153450×1850×2860
200T/400020040003200320470154250×1870×2950
250T/32002503200260040053018.53450×1920×3050
250T/40002504000320040053018.54250×1950×3150
300T/320030032002600400560223450×2200×3130
300T/400030040003200400560224250×2250×3320
300T/600030060004700400560226100×2250×4250
400T/320040032002600400640303200×2280×3250
400T/400040040003200400640304000×2300×3600
400T/600040060004700400640306000×2350×4650
500T/600050060004700400640376000×2450×4700
600T/600060060004700460650456000×2700×5710

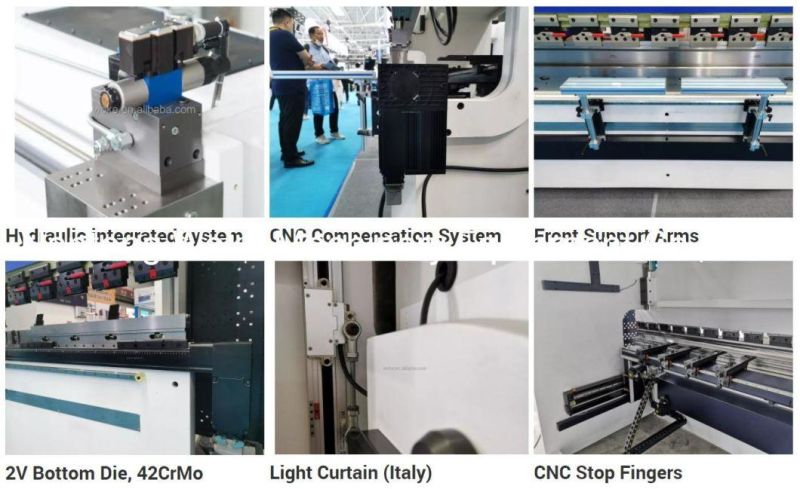

FRODUCT CONFIGURATION

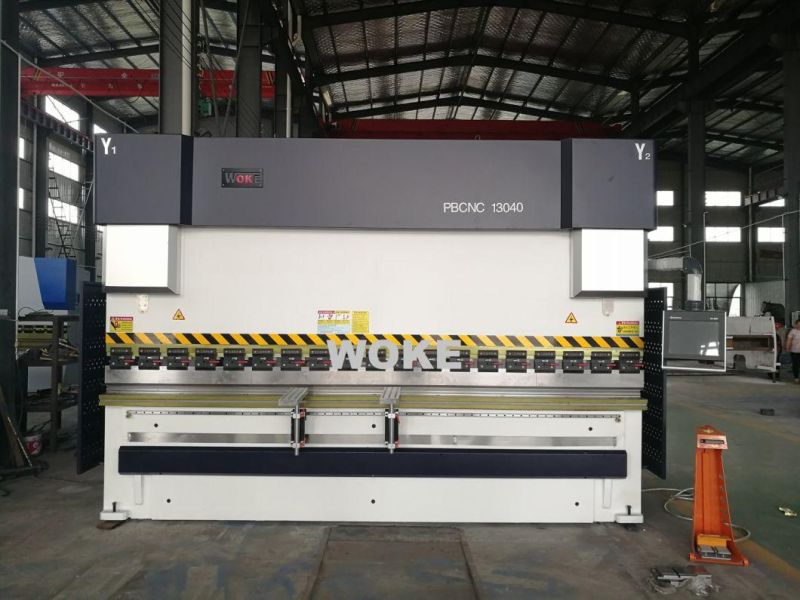

100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers


CNC PRESS BRAKE MACHINE DESIGN IS CUSTOMIZED

100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers

100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers
100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers

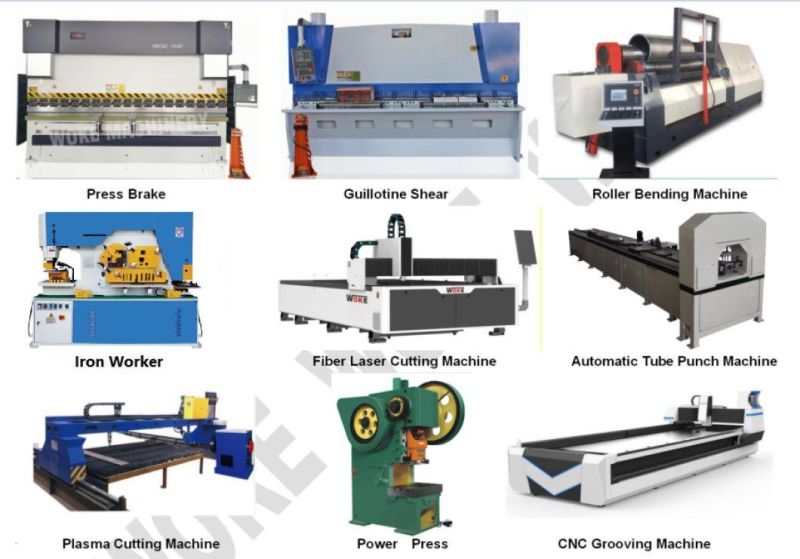

100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake ManufacturersWOKE MACHINERY SUPPLY RANGE                                                                            100t 3200mm 200ton Electric Hydraulic CNC Delem Press Brake Manufacturers
