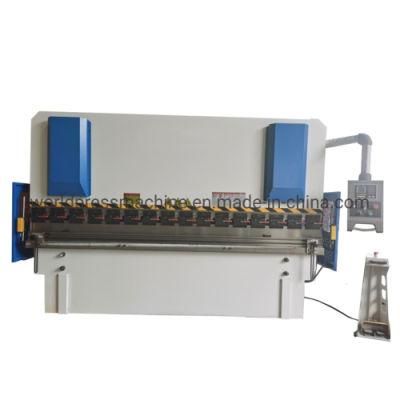

8 Feet CNC Automatic Plate Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year

Base Info

  • Model NO.:EPB-130T3200
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type:Press Brake
  • CNC System:Esa S640
  • Axes:Y1, Y2, X, R, Z1, Z2
  • Max Bending Length:3200mm
  • Max Bending Thickness:5mm for 3m Sheet
  • Weight:9500kg
  • Backgauge:600mm Distance, Ball Screw and Linear Guide Rail
  • Main Motor:Servo Motor
  • Main Motor Power:5.7kwx2
  • Main Electrical Components:Schneider
  • Hydraulic System:Bosch-Rexroth
  • Clamping System:Wila Hydraulic Clamping System
  • Grating Ruler:Italy Givi
  • Transport Package:20gp
  • Specification:3850× 1850× 2600mm
  • Trademark:LZK
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month
  • Package size per unit product:4100.00cm * 1700.00cm * 2000.00cm
  • Gross weight per unit product:6500.000kg

Description

--EPB full servo bending machines are manufactured in accordance with the most stringent quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals.

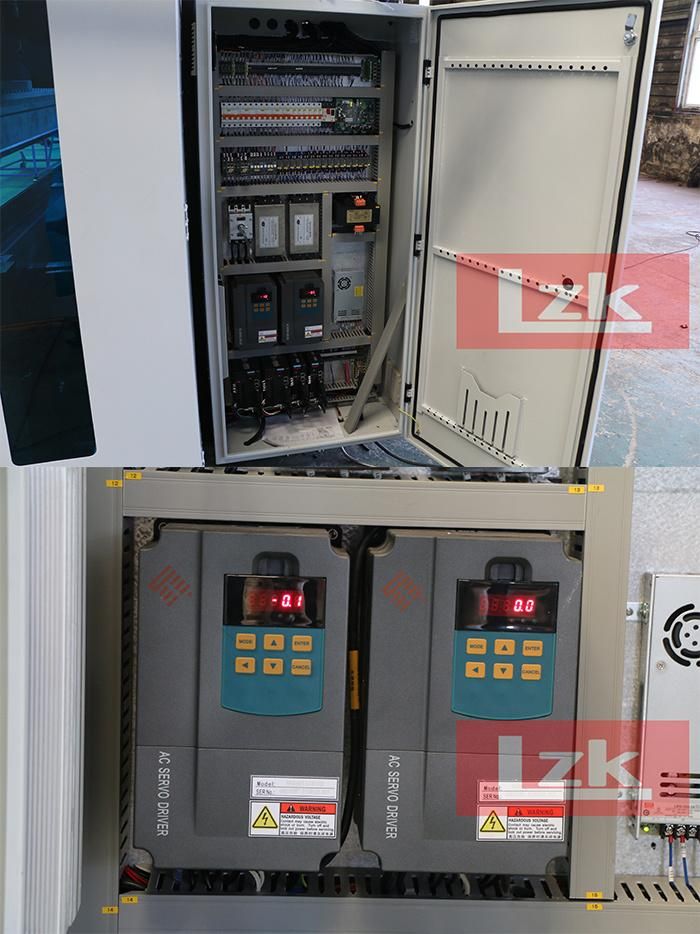

--Because of their high speed and high precision, they are widely used in robotic bending cells; EPB works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well-suited for high-speed robotic bending applications.8 Feet CNC Automatic Plate Bending MachineWith ESA S640 control system, can also be replaced with DELEM system, LZ1000 system8 Feet CNC Automatic Plate Bending MachineMain electrical components from Schneider, with double servo motor

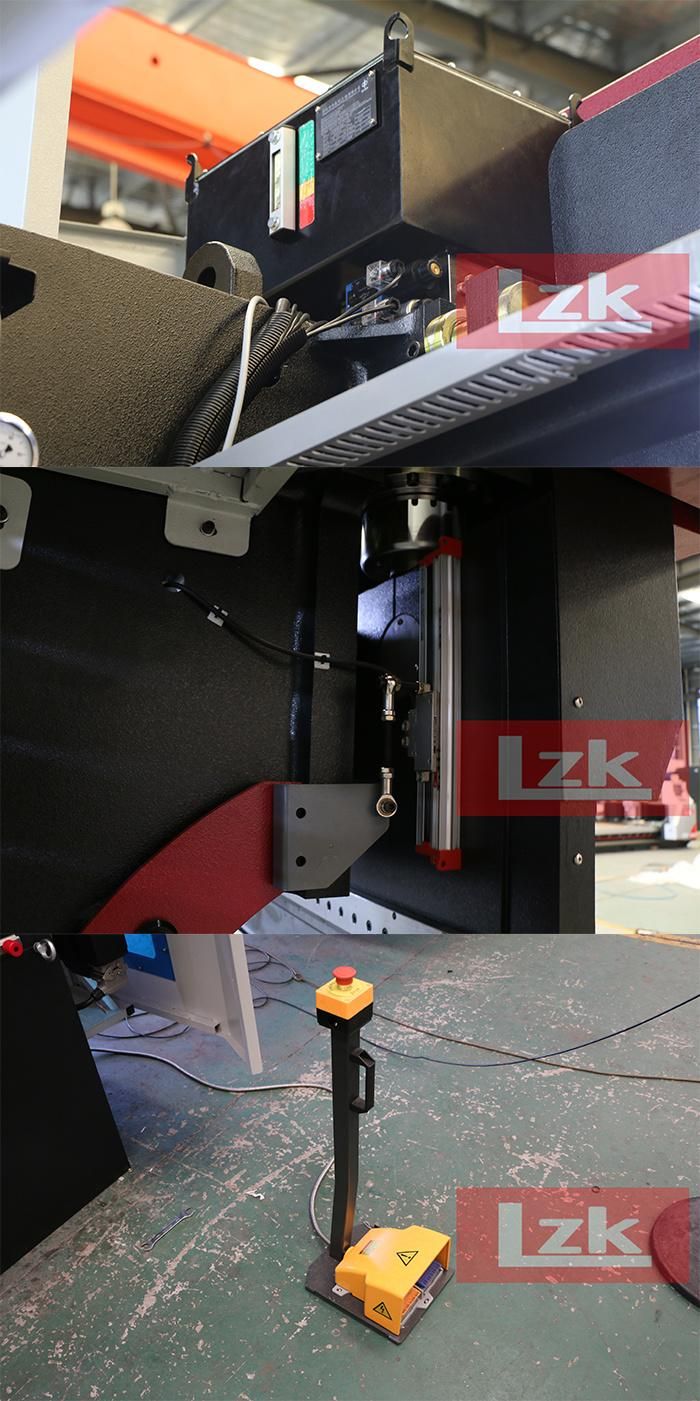

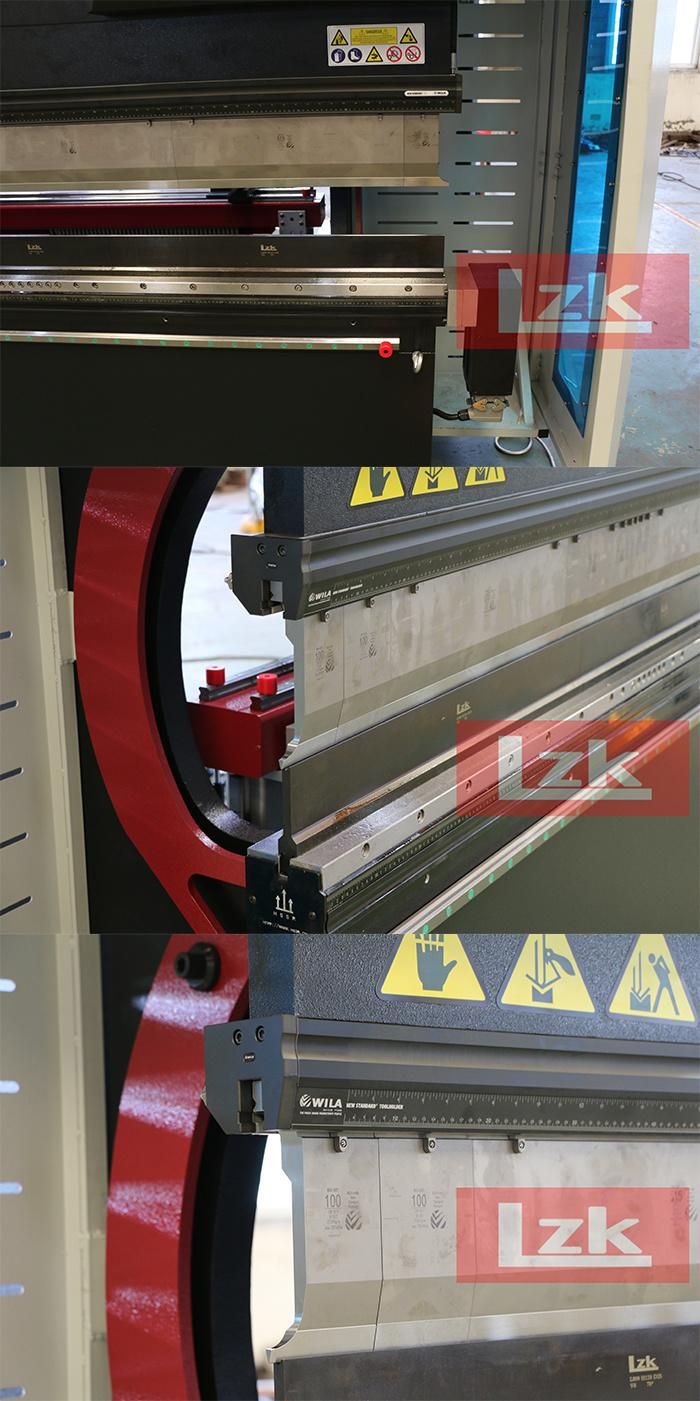

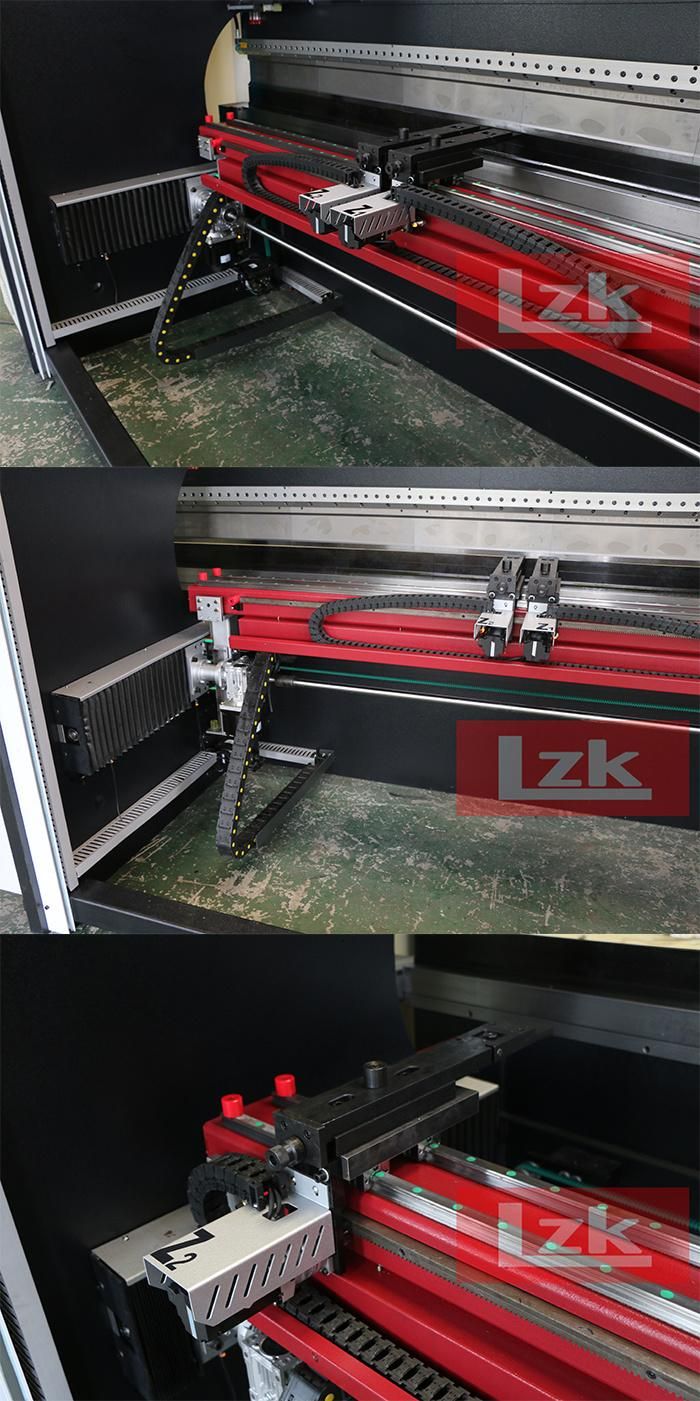

8 Feet CNC Automatic Plate Bending Machine--The EPB bending machine is equipped with CNC mechanical crowning/compensation--The EPB bending machine is equipped with a fast front-loading quick fixture as standard, which further saves tool change time and improves efficiency.8 Feet CNC Automatic Plate Bending Machine--WILA hydrauilc clamping system8 Feet CNC Automatic Plate Bending MachineBack gauge with X, R, Z1, Z2 axes, servo motor controlled8 Feet CNC Automatic Plate Bending Machine--The EPB bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs.--ITALY GIVI greating ruler--KACON footpedal
Our press brakes work well in customer's workshop
8 Feet CNC Automatic Plate Bending MachineGerman Customer8 Feet CNC Automatic Plate Bending MachineRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection
