• Model NO.：ZD-3D-308
• Condition：New
• Certification：ISO 9001:2008, CE
• Automation：Automatic
• Suitable for：Alloy, Carbon Steel, Stainless Steel
• Type：Cnc Bending Machine
• Suitable Wire Diameter：2-8mm
• Axis Number：5
• Arm-Turning Servo Motor Power：4.5kw
• Cutting Servo Motor Power：1kw
• Feeding Shaft Servo Motor Power：4.5kw
• Bending Servo Motor Power：2kw
• Moving Axis Servo Motor Power：1kw
• Weight：2000kg
• Transport Package：Strong Standard Wooden Case
• Specification：2800*1400*2700mm
• Trademark：Greatcity
• Origin：China
• HS Code：8463300000
• Production Capacity：30sets,Day
• Package size per unit product：2800.00cm * 1420.00cm * 1700.00cm
• Gross weight per unit product：1300.000kg

Basic Info.

Model NO. ZD-3D-308 Condition New Certification ISO 9001:2008, CE Automation Automatic Suitable for Alloy, Carbon Steel, Stainless Steel Type Cnc Bending Machine Suitable Wire Diameter 2-8mm Axis Number 5 Arm-Turning Servo Motor Power 4.5kw Cutting Servo Motor Power 1kw Feeding Shaft Servo Motor Power 4.5kw Bending Servo Motor Power 2kw Moving Axis Servo Motor Power 1kw Weight 2000kg Transport Package Strong Standard Wooden Case Specification 2800*1400*2700mm Trademark Greatcity Origin China HS Code 8463300000 Production Capacity 30sets/Day

Packaging & Delivery

Package size per unit product 2800.00cm * 1420.00cm * 1700.00cm Gross weight per unit product 1300.000kg

Product Description

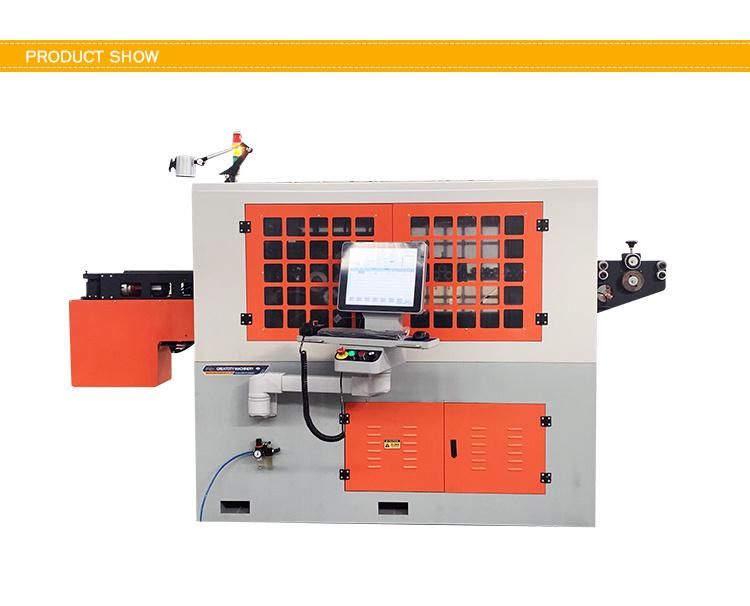

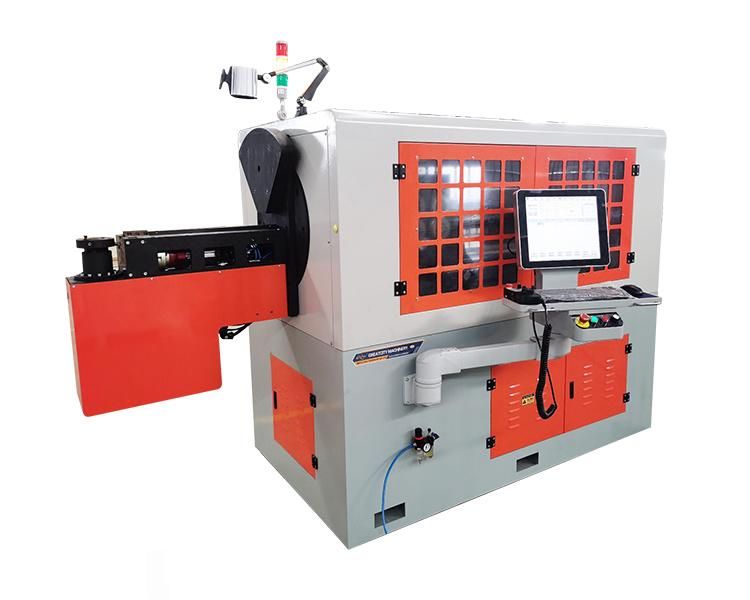

Automatic 3D CNC Wire Bending Machine

Advantages & Feature:

3D CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorband screen display with Taiwan controller.

3-4 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.

Application Field of 3D CNC wire bending machine:
1) Auto Industry area
2) Metal wire industry
3) Furniture and kitchen
5) Hardware industry
6) Mattress, sofa spring area
7) Architecture area
8) Hardware Artcrafe

Pls contact with me freely, i will show more testing video 3D CNC wire bending machine as your request.

ZD-3D-308 model 3D CNC wire bending machine technical specification:


Processing line specification	Hard material: Φ2-Φ6mm Soft material: Φ3-Φ8mm
Wire motor power	3.5KW     China Taizhou
wire reducer	1:5
Rotary arm motor power	2.7KW   Taiwan brand
rotary arm reducer	1:7
Angle motor power	2.0KW   Taiwan brand
angle reducer	1:10
Lift motor power	1.0KW   Germany brand
lifting reducer	1:32
Cutter motor power	1.0KW
cutter speed reducer	1:28     Taiwan brand
Control axis number	5-axis

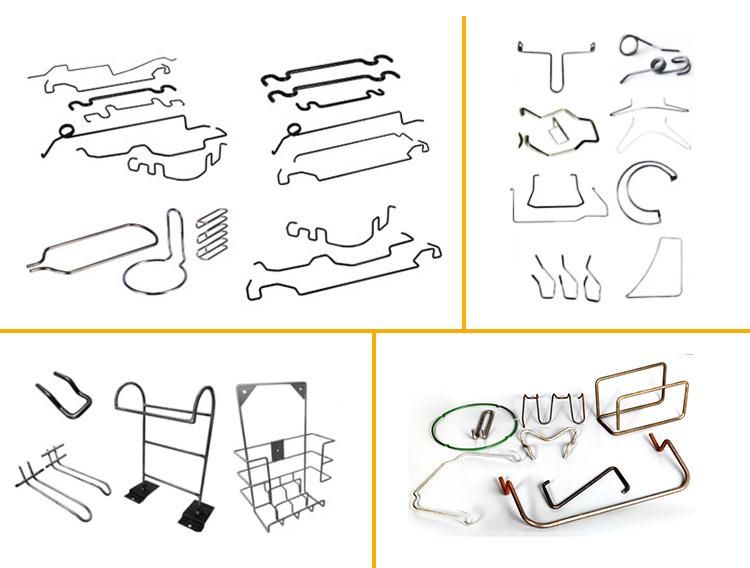

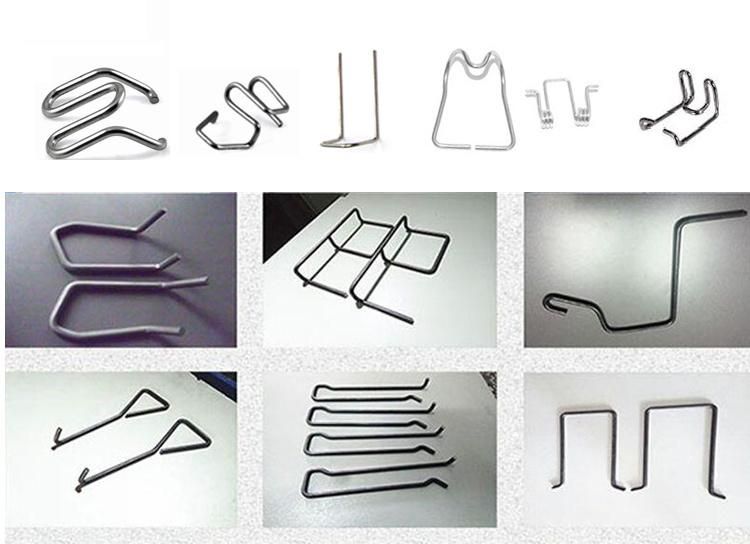

Workpiece made by our 3D CNC wire bending machine
Why choose Judu 3D CNC wire bending machine ?
20 years of CNC machine tool manufacturing experience sales cover more than 60 countries supporting international leading parts system international professional machine tool manufacturing team professional enterprise management team reliable after-sales service system.
1. Judu has a customer group  in more than 60 countries around the world,and a large user group has proved everything.
2. Judu has nearly 20 years of self-service production and manufacturing experience machine,and its quality is more guaranteed.
Judu has an international professional machine tool manufacturing technology team,leading the same industry in design and processing.
4. the imported system is used for the CNC bending machine produced by Judu.
5. Judu has an international professional enterprise management team and a group of conscientious and skilled workshop workers.
6. after sales,customers can enjoy two years free maintenance service and lifetime technical guidance.
