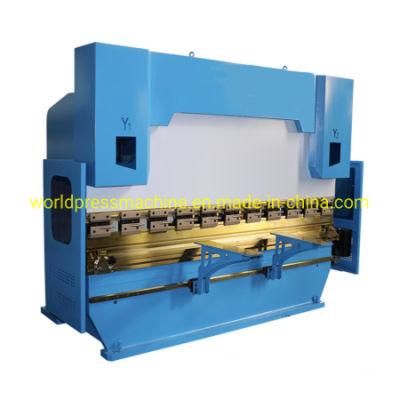

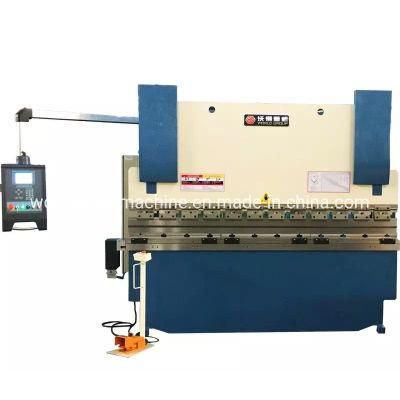

Programmable Metal Sheet Bending Machine with Hydraulic Power
Shanghai YingXin World Machinery Co., Ltd.- After-sales Service：Available
- Waterproof Rating：IPX-5
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
Base Info
- Model NO.：WC67Y-100,2500
- Suitable for：Aluminum, Carbon Steel, Stainless Steel
- Type：Press Brake
- Hydraulic Press Brake：Hydraulic Bending Machine
- Motor Brand：Siemens
- Pump：Sunny
- Valve：Rexroth
- Control System：Estun E21 Nc System
- Color：Customized
- Transport Package：in Container
- Specification：bending width to 6000mm
- Trademark：WORLD
- Origin：China
- HS Code：84622190
- Production Capacity：2000PCS,Year
Description
hydraulic press brake and cnc press brake
- hydraulic press machine
SpecificationsItems unit WC67Y-80/2500 WC67Y-80/3200 WC67Y-80/4000 Nominal pressure kN 800 800 800 Length of table mm 2500 3200 4000 Distance between uprights mm 1900 2300 1900 Throat depth mm 320 320 320 Ram stroke mm 120 120 120 Daylight mm 380 380 380 Approach speed mm/s 120 110 100 Bend speed mm/s 10 10 9 Return speed mm/s 100 100 90 Main motor kW 7.5 7.5 7.5 Length mm 2600 3400 4100 Width mm 1400 1400 1400 Height mm 2300 2300 2300
- hydraulic press machine
Specifications
| Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
| Nominal pressure | kN | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2400 | 3000 |
| Throat depth | mm | 300 | 320 | 320 |
| Ram stroke | mm | 160 | 150 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3300 | 4000 |
| Width | mm | 1600 | 1800 | 1800 |
| Height | mm | 2500 | 2500 | 2300 |
