• Model NO.：JT-SLT-900
• Rewinding Type：Inverter Motor Drives Magnetic Clutch
• Auto Tension：2 Sets, Inplant The PLC
• Synchronic Belt：Avoid Overlap Problem
• Speed：150m,Min
• Processing：by CNC
• Unwinding Type：Magnetic Brake for Unwinding Tension
• Cutting Type：Disc Blades
• Red Line Marker：Available, Controlled by PLC
• Type：Cutting Machine
• Application：Machinery & Hardware
• Type for Cutting Machine：CNC Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Transport Package：Flexible Wrapping, Then Wooden Case Delivery.
• Specification：ISO9001, CE
• Trademark：Jota Machinery
• Origin：Ruian, Zhejiang, China
• HS Code：84411000
• Production Capacity：200sets Per Year

SpecificationsCategoryAutomatic Thermal Paper Slitter and Rewinder MachineApplication MaterialThermal paper, Cash Register Paper, Fax Paper, ATM paper, Bond Paper,
Non-woven cloth Caronless Paper,Concern Paper,Queuing Paper,
Air Ticket Paper,,Boarding Paper,Film Paper,Movie Paper,etcApplicable Width of Axial / Material500-900mm / 20"-36" (or as your requestMin. Width of Slitting30mm/1.2"Max. Machine Speed150m/minMax. Unwinding Diameter1000mm /40"Max. Rewinding Diameter200mm/8' (or as your request)Tolerance of Slitting Width±0.1mm(Depending on kinds of material applied)Max Applicable Weight of Material1000 KgRated Frequency50Hz & 60HzRated Voltage380V,415V, 440V, 460V, 480V, Dual-Voltage (or as your requestUnwinding/Rewinding Shaft3" Pneumatic Air Expanding Shaft(or as your request)Overall Dimensions2050*1600*1500mmWeight1500kgComponentsUnwinding Section-3"air expanding rewinding shaft
-Automatic lift-up loading system via motor
-Electromagnetic Brake from Taiwan
-Fully automatic tension controllerSlitting Section-Disc cutter
-Cutter with adjustable and movable blade base.
-Meter counterRewinding Section-0.5",1",1.5",2" or as your request
-Center Rewinding technology
-Pressure roller
-Electromagnetic Clutch from TaiwanControlling Section-Siemens PLC & HMI from Germany
-All the parameters are displayed on the monitor
-Low voltage electrical appliances all from SchneiderTrimmed Waste Edge-Edge Waste Blower with Expulsion TubeOptional-Max. Jumbo roll is up to 3 reels.Environmental RestrictionLocationIndoor. The product should be installed on flat and solid foundation.Voltage Regulation±10%Frequency Regulation±5%Ambient Temperature Range-5°C~40°CAltitudeNot exceed 1000 MetersRelative HumidityLess than 85% RH (Non-Condensation)

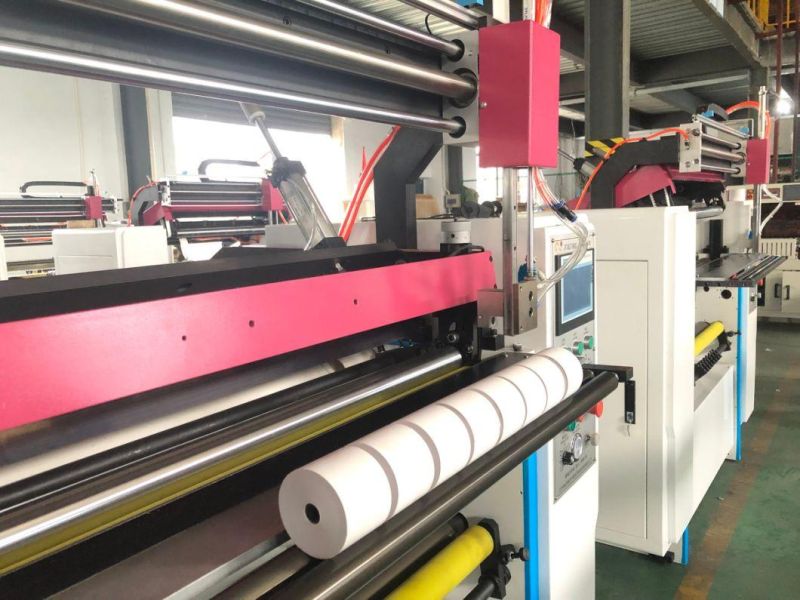

Auto Cutter and Gluer Unit:

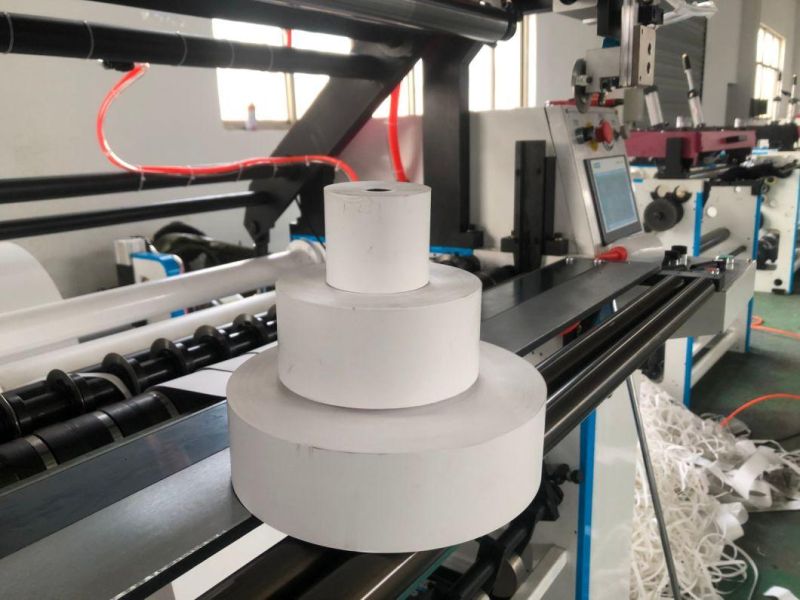

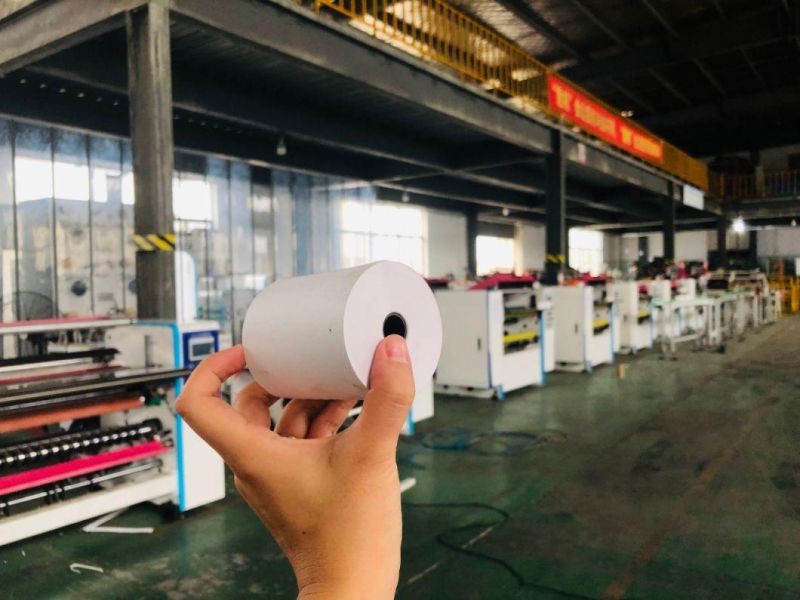

Thermal Paper Finished Rolls Display

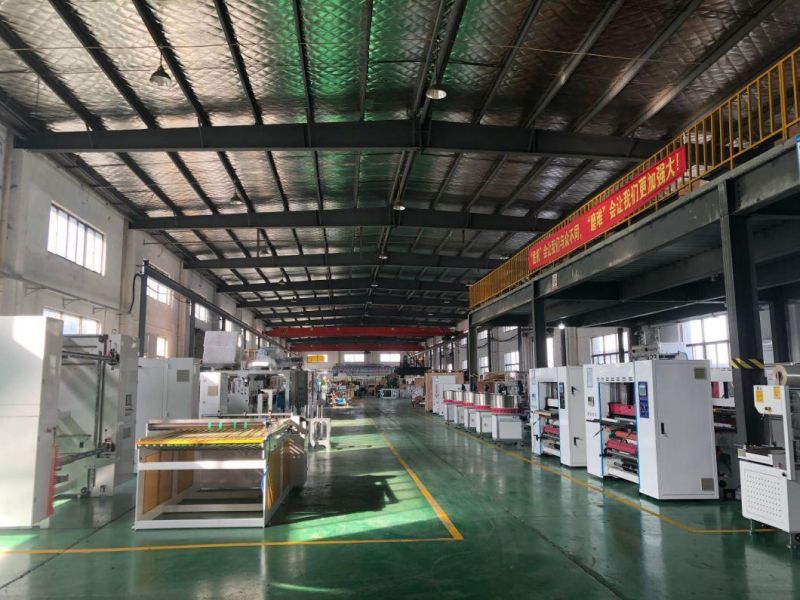

Our Jota Factory

Final Rolls Diameter 20-270mm, suit for pos roll, atm roll, cash register roll, NCR roll, ECG roll,etc...
ConfigurationNameModelPiecesRemarkComputer SystemPLC+HMI1setSiemens from GermanyMain motor 1 setSiemens from GermanyFrequency inverter 1PieceInnovance from ChinaAir Pressure Valve 1 setSMC from JapanCylinder 2PieceAIRTAC from TaiwanAir Expanding Shaft 1 Piece Magnetic Brake 1setFrom TaiwanLow Voltage Electrical Switch  CHINTRelay  Omron from Japan

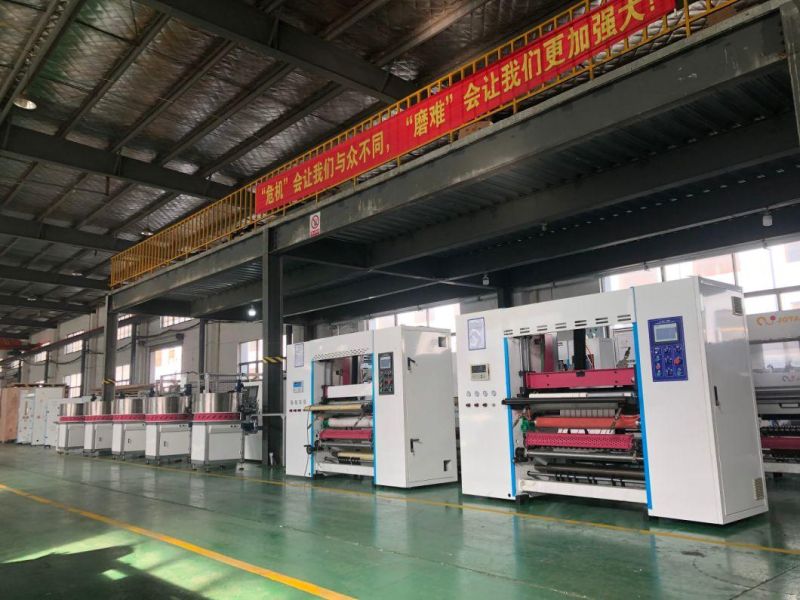

Workshop:

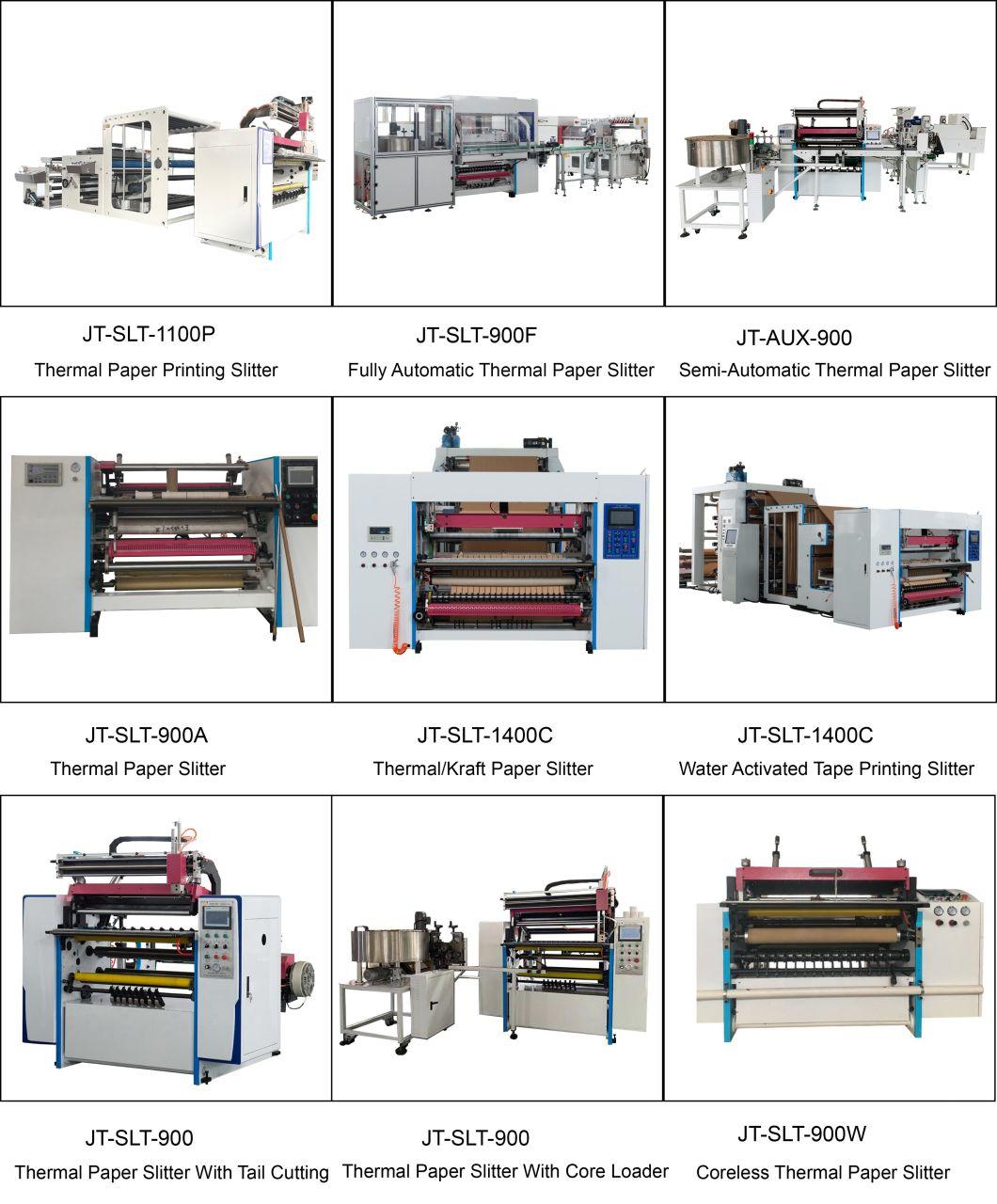

Relation Machines:
