• Model NO.：PEL-800
• Suitable for：Aluminum
• Type：Beading Machine
• Power：4.0kw
• Compressed Air：0.4-0.6MPa
• Control Axis Quantity：5axis
• Min. Bending Radius：R7mm
• Bending Distance From Start：3mm
• Material Thickness：0.6-1.0mm
• Notching Type：Controlled by Servo Motor
• Flanging Type：Pneumatic Flanging for Right Angle
• Flanging Width：14mm
• Servo Motor：4PCS
• Transport Package：Exporting Standard Package
• Specification：CE, ISO, TUV
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：5, 000 sets,year

Basic Info.

Model NO. PEL-800 Suitable for Aluminum Type Beading Machine Power 4.0kw Compressed Air 0.4-0.6MPa Control Axis Quantity 5axis Min. Bending Radius R7mm Bending Distance From Start 3mm Material Thickness 0.6-1.0mm Notching Type Controlled by Servo Motor Flanging Type Pneumatic Flanging for Right Angle Flanging Width 14mm Servo Motor 4PCS Transport Package Exporting Standard Package Specification CE, ISO, TUV Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 5, 000 sets/year

Product Description

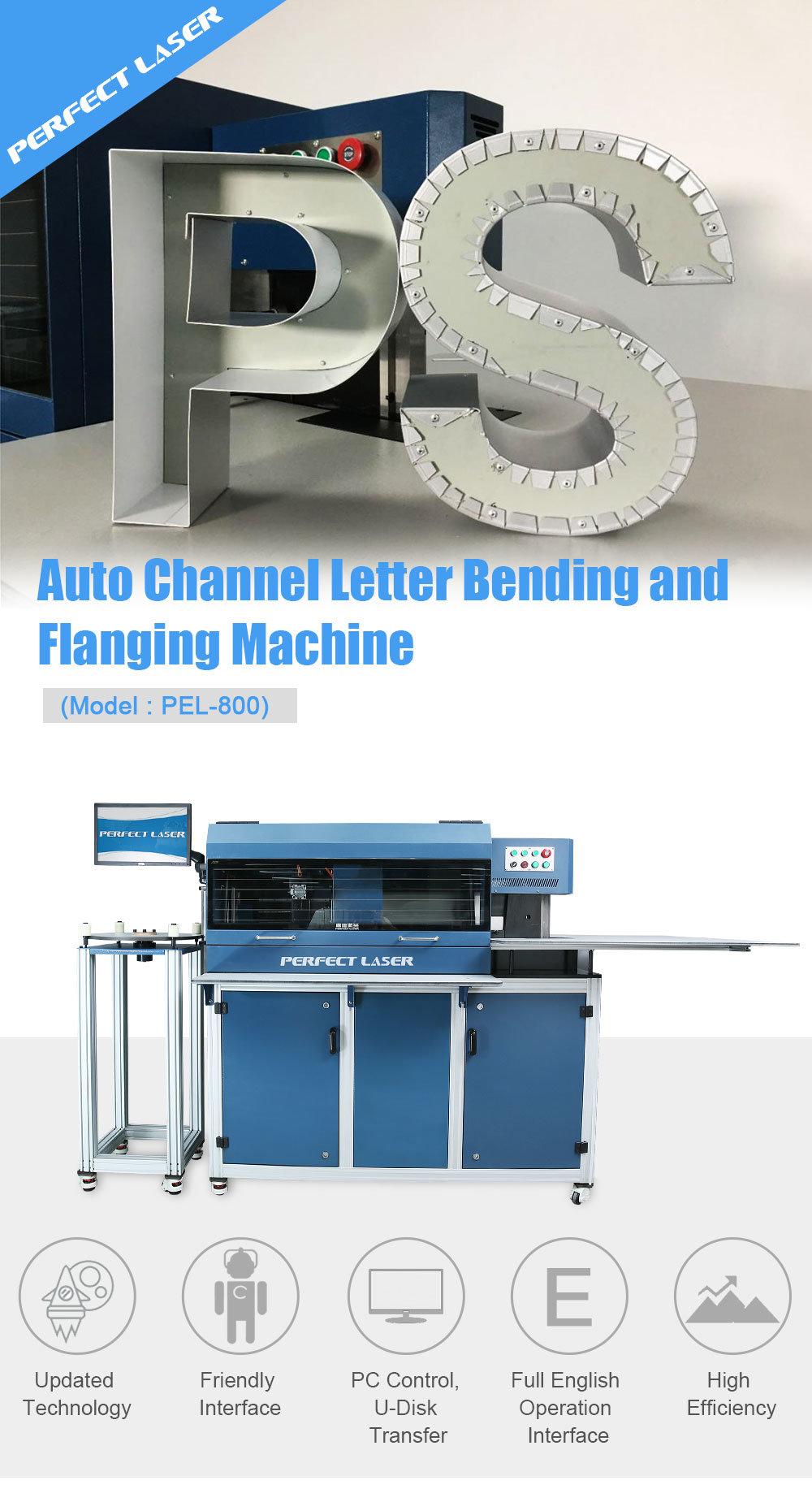

Auto Channel Letter Bender for Trim Cap Aluminum Letters
(Model:PEL-800)


Product Desribption:

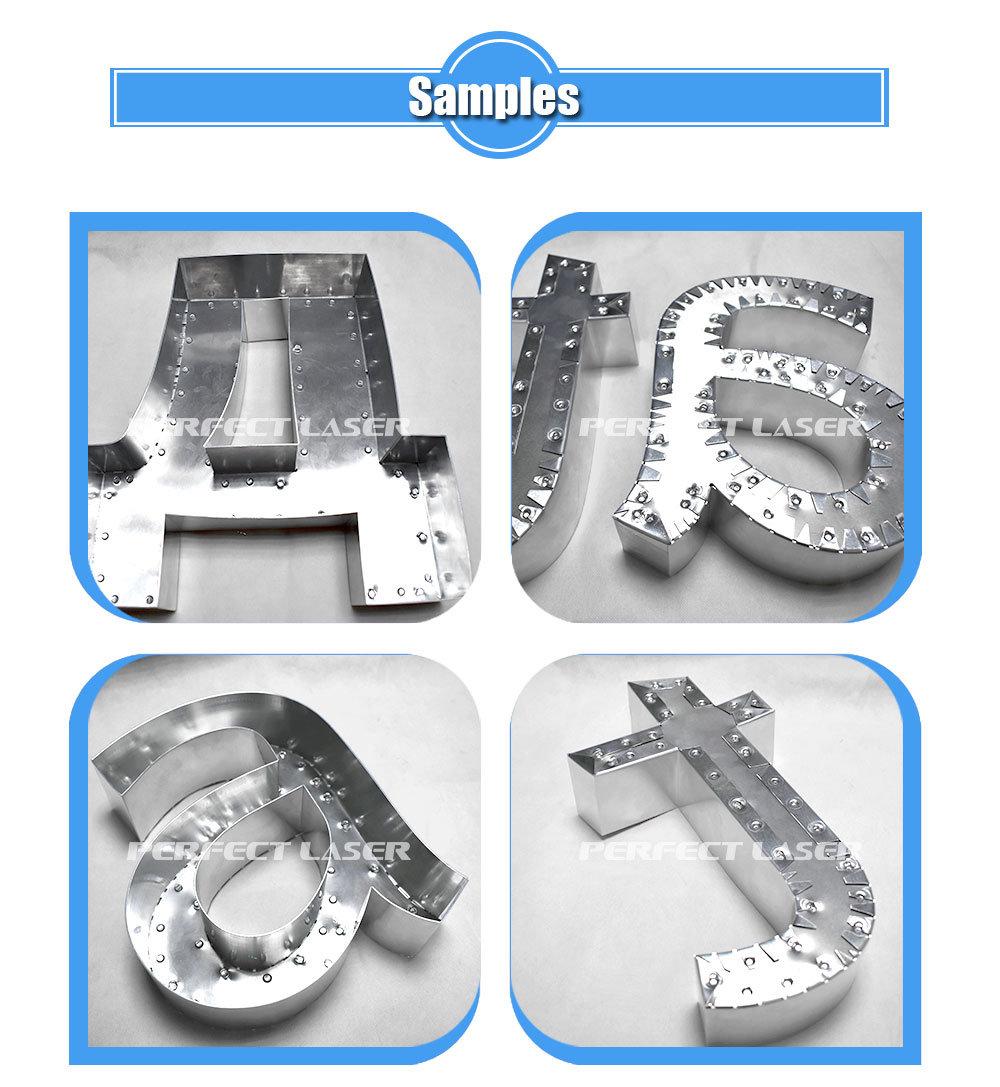

The auto bender machine has all functions of traditional model, and auto bender machine also can make notching and flanging automatically for flat aluminum coil.The type of aluminum brake bender is the high-end bending equipment for the first selection, especially suitable for the high letters (usually found in square and plaza), stainless steel letters, punching letters, resin letters and giant glowing letters, ect.It can be called auto bender machine,channel letter bender price,channel letter bender notching,aluminum brake bender.

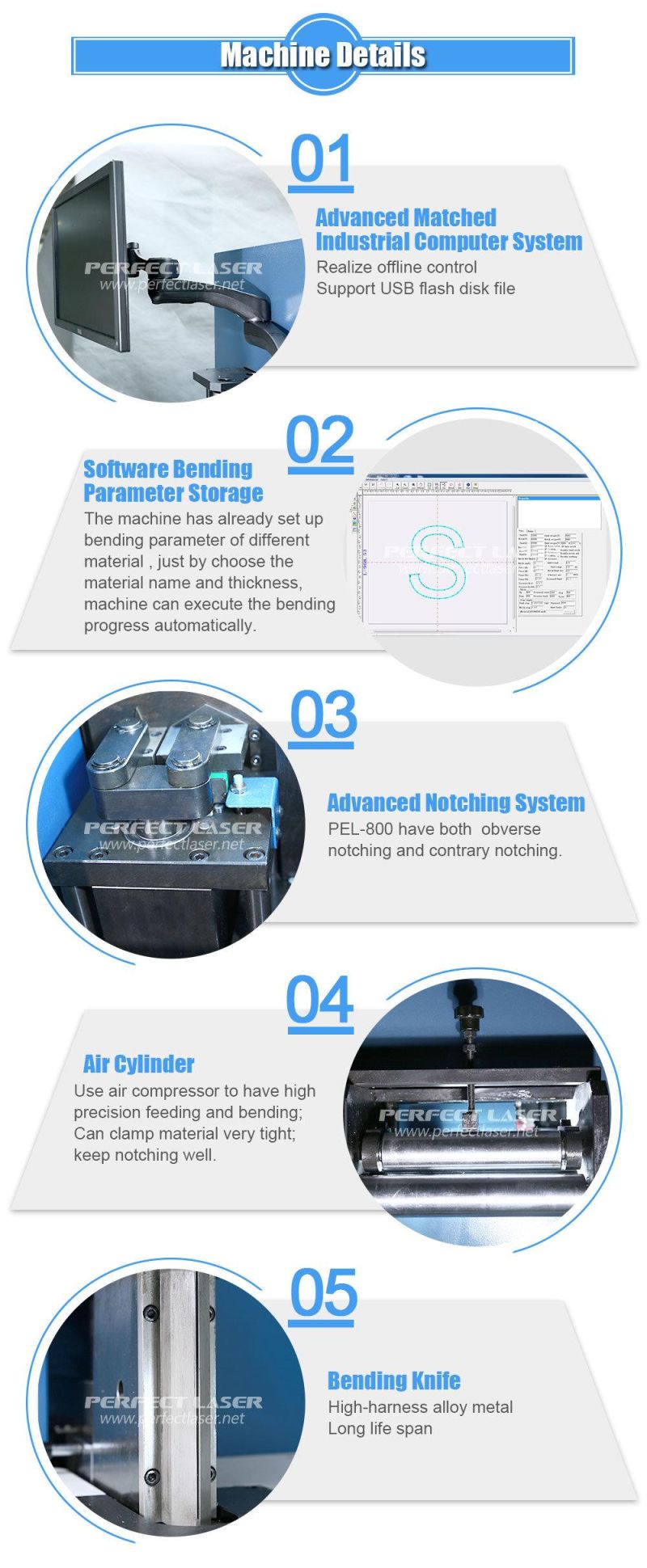

Product Features:
1. Servo motor control notching and flagging mechanism, aluminum brake bender uses servo motor to control notching mechanism with characters of smaller size, higher speed, more stable property, no oil contamination and lower noise.
2. V-shaped slotting mode
The aluminum brake bender controls slot depth intelligently and sets total slot depth, single slot depth and slot numbers; servo motor control and high precision nut driver have advantages of high slot speed, high accuracy and constant torque; V slotting surface is smooth and don't have any burr. Depth is consistent. The R angle id not obvious when bending, which ensures the outline of letters clear and beautiful.
3. Closed loop control system
All Perfect Laser's channel letter bender price is strictly checked by authorities and the channel letter bender notching all have material tracking system. It can real-timely monitor any material stretching and slipping during bending, which ensures closed-loop control of material length and precise match of bent letter and panel face letter.
4. Telescoping double bending bars mechanism
The core of the bending machine is arc shape effect. Perfect Laser automatic channel letter bending machine uses servo control, high rigid gear transmission, telescoping double bending bars, bending mold quick change system, which has advantages of large bending torque, small interference area and no scratch surface. Besides, it fits in with all kinds of material thickness. It is suitable for high-precision and high-strength industrial signs processing.

Product Advantage:
1.Unique bending type of telescopic alternative bending--it greatly reduces the bending scratch, avoids interference in the bending process and substantially increases the bending torque, which ensures high-precision bending.
2.High precision--it is equipped with closed loop testing device for testing feed length inside, assuring the total length deviation bending less than 0.1mm between the product and original document and also assuring the consistency of manufacturing the same document repetitively.
3.High degree of forming--the coincidence degree reaches as high as 98% with the panel cut by other sorts of precise equipment.

4.Low slotting cost--it uses Germany imported high hardness special stainless steel slotting tool whose using cost is low at RMB0.02 per groove.
5.The unique alternating clamp feeding way features the feeding speed, high accuracy, no indentation, etc.
6.The aluminum brake bender controls the depth of groove by numerical control axis and meets the needs of different materials and slot thickness.
7.The aluminum brake bender uses servo motor for notching function with high speed, pneumatic flanging for right angle and no burr with notching.

Technical data:

Power supply	AC200V
Power	4.0KW
Compressed air	0.4-0.6MPa
Control axis quantity	5axis
Min. Bending radius	R7mm
Min. Distance between interior angle and exterior angle	4.5mm
Bending distance from start	3mm
Applied material	Stainless steel, galvanized sheet, aluminum coil
Material thickness	0.6-1.0mm
Processing height	Stainless steel, galvanized sheet(20-175mm);aluminum coil(50-175mm)
Material feeding method	Alternating double screw rails feeding
Notching type	Controlled by servo motor
Notching angle	30°/120°
Flanging type	Pneumatic flanging for right angle
Flanging width	14mm
Servo motor	4PCs
Step motor	1PCs
N.W./G.W.	800Kgs/900Kgs
Dimension	2290(L)*860(W)*1560(H)mm
Software support	DXF/PLT files input, support CAD, TYPE3, CRELDRAW, ILLUSTRATOR, ect.

After- Sale Service:
1> All of our machine will be fullchecked by our quality control department before the shipment. We make sure that customers will be get good products from us. And all of our machine with a 12 months quality guarantee period.
2>We will enclose an"Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
