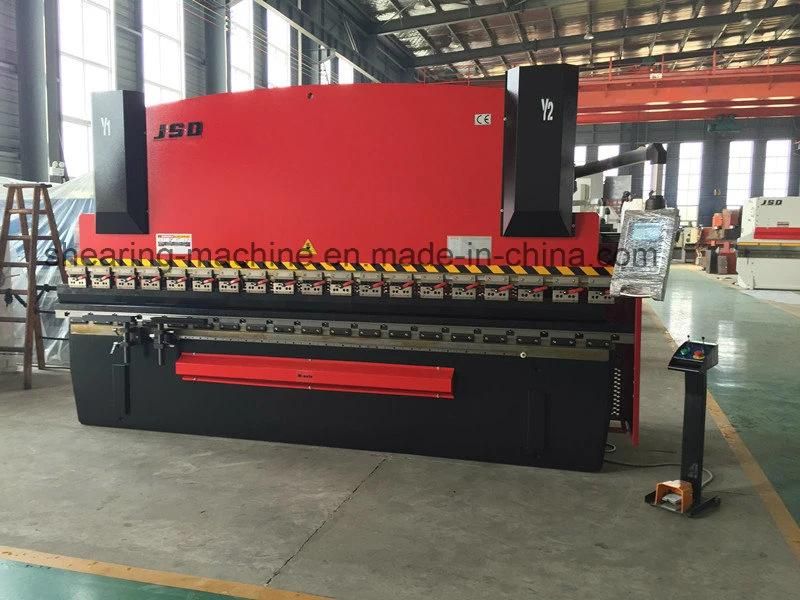

Jsd Hydraulic CNC Sheet Bending Machine with Good Price
LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.- Certification：CE
- Automation：Automatic
Base Info
- Model NO.：WE67K
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Cnc Bending Machine
- Color：as Your Require
- CNC System：Delem Da52s
- Motor：Simenes
- Valve：Rexroth
- Electric：Schneider
- OEM&ODM：Yes!
- Export：All Over The World
- Certificate：Ce
- Factory：Yes!
- Customized：Welcome!
- Transport Package：as Customer Require
- Specification：WE67K-100T*4000
- Trademark：JSD
- Origin：China
- Production Capacity：100 Sets,Month
Description
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2. WD67K Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.
3. High quality and repetitive bending is obtained by using synchronized cylinders and valves.
4. Automatic axis referencing and calibrating when machine is turned on.
5. Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm
6. Well-known top and bottom tool brands are long lasting stiffened and provide precise bending.Silent high pressure pump.
1. 4- axis Delem DA52s programming mode CNC control
2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
5. Light guards
6. Two micrometric backgauge finger-stops with lateral adjustment
7. Steel mono-block construction
8. Polished chrome plated and ground cylinders
9. Long stroke and large open height dimensions
10. High approach and return speeds for production bending.

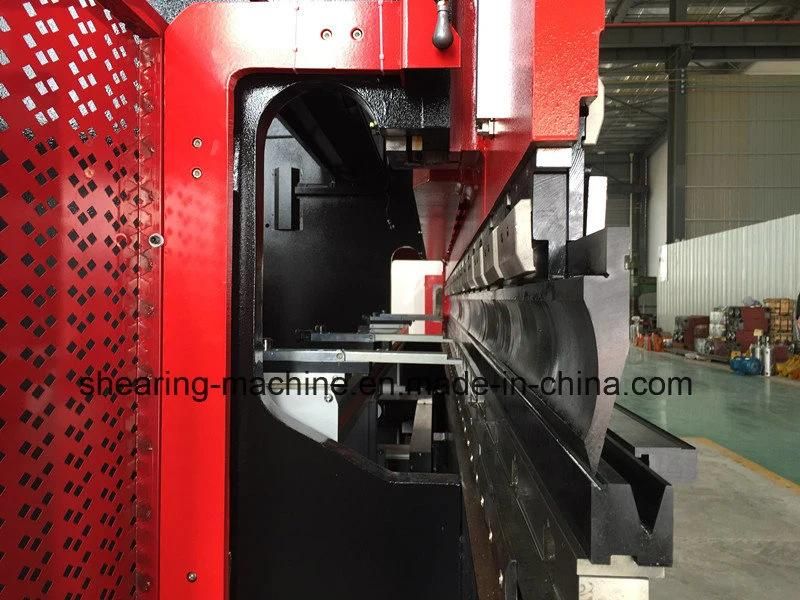

11. Euro style quick release top tool holders with intermediaries including wedges for crowning.
12. 88 degree sectionalised goose neck top tool
13. 4 way sectionalised multi vee bottom tool
14. Double footswitch control and pendant type control arm.
15. AKAS laser tooling guards
16. Electrically interlocked side guards
17. Electrically interlocked read access door
18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.
19. Side guard is standard meeting CE regulations.

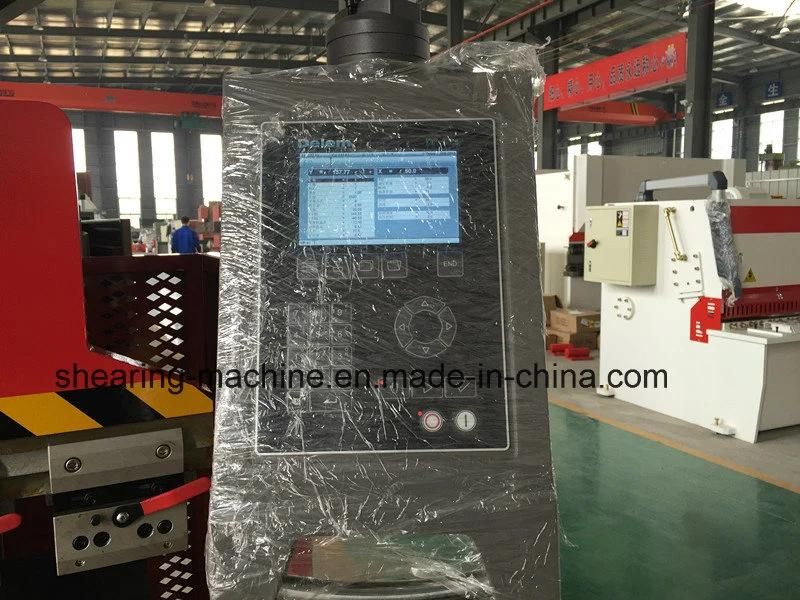

1. 6,4" VGA colour LCD (TFT)
2. Numerical, one page programming
3. Quick, one-page programming
4. Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
5. CNC Crowning control
6. USB, peripheral interfacing
7. Tool/material/product library
8. Servo, frequency inverter and AC control for backgauge axes.

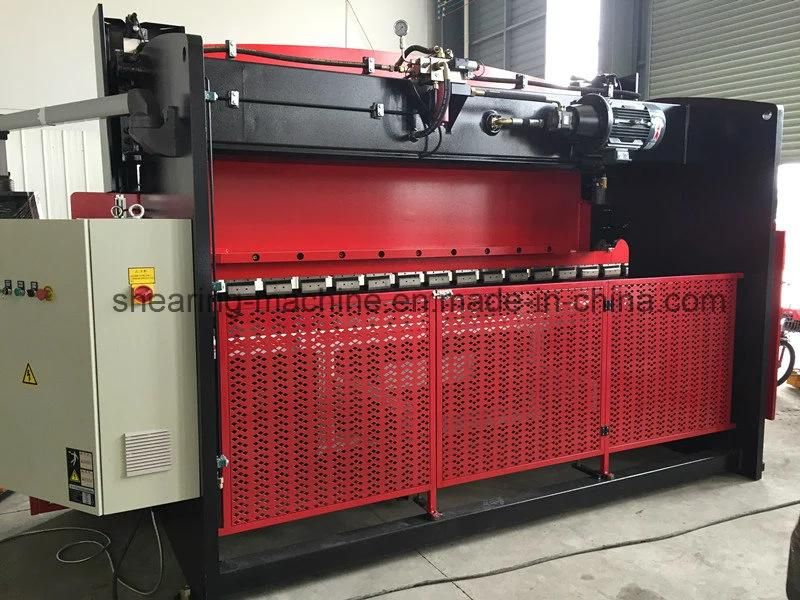

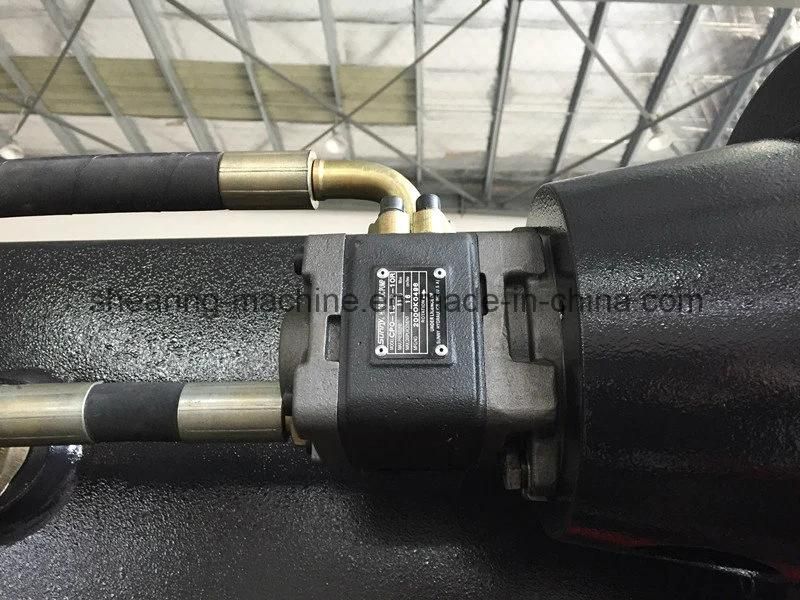

Detail photos
Our Services
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your
technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples
making). We sign the agreement with detailed technical data. Machine warranty is 2 year.
