• Model NO.：QC11K
• Warranty：2 Years

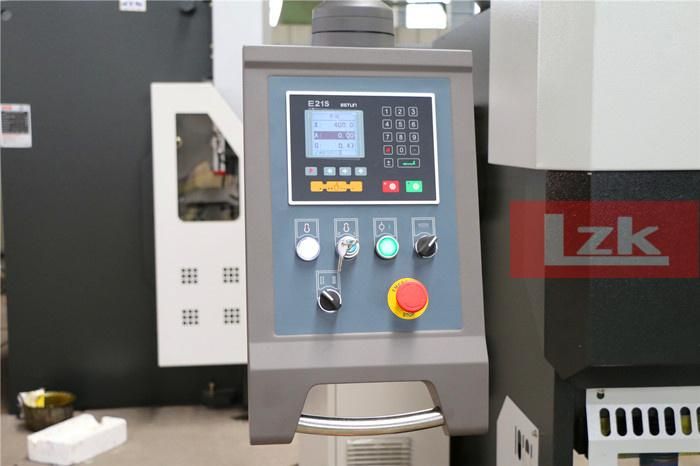

• Control System：E21s
• Machine Type：Guillotine Shearing
• Cutting Thickness：6mm
• Cutting Width：2500mm
• Cutting Material：Steel, Stainless Steel, Carbon Steel, Mild Steel

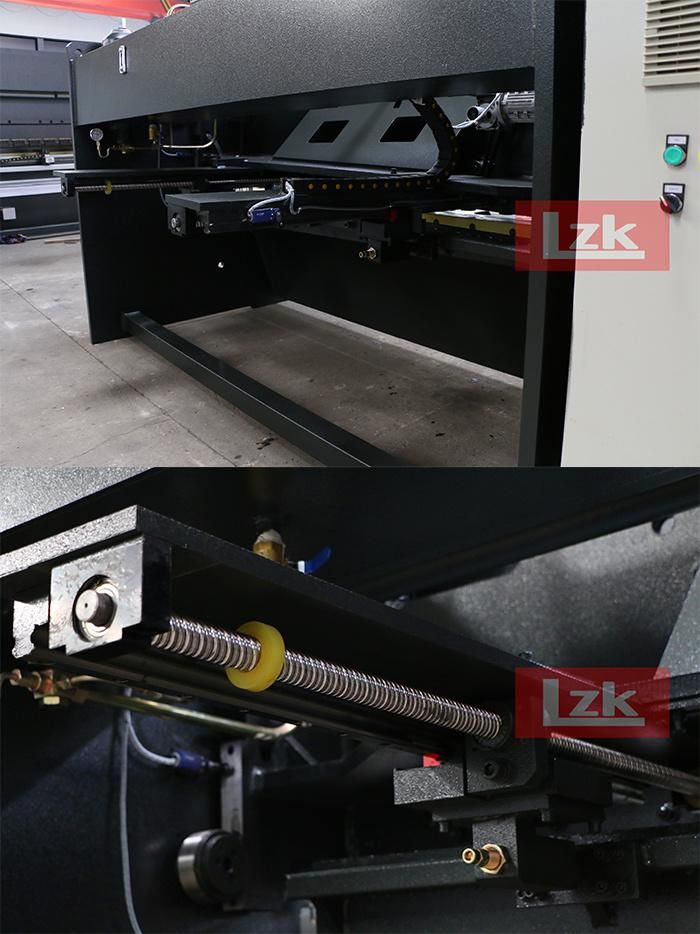

• Backgauge：Hiwin Ball Screw and Linear Guide Rail

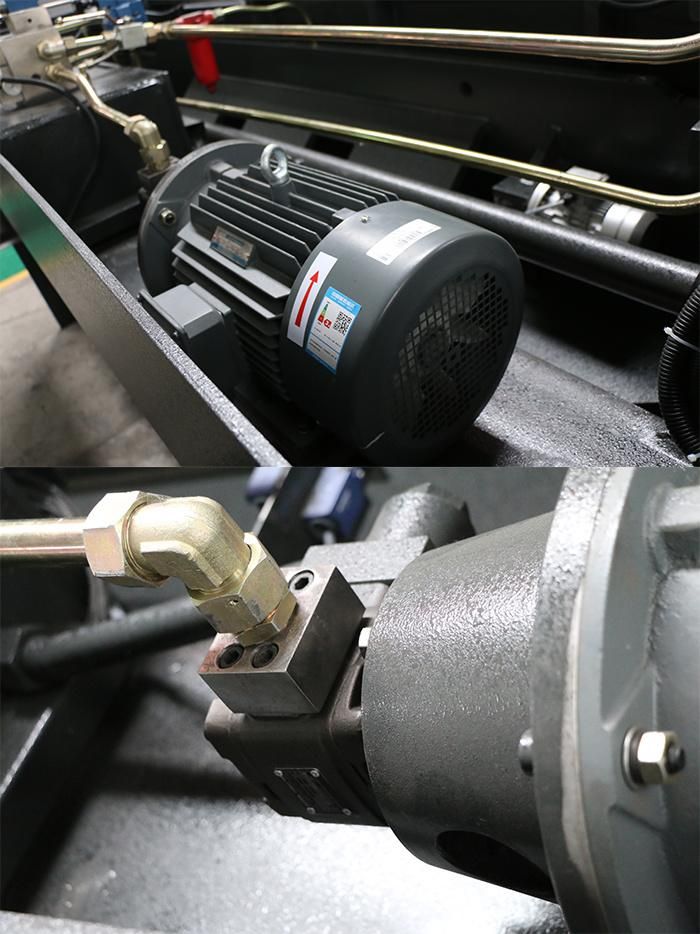

• Main Motor：Siemens

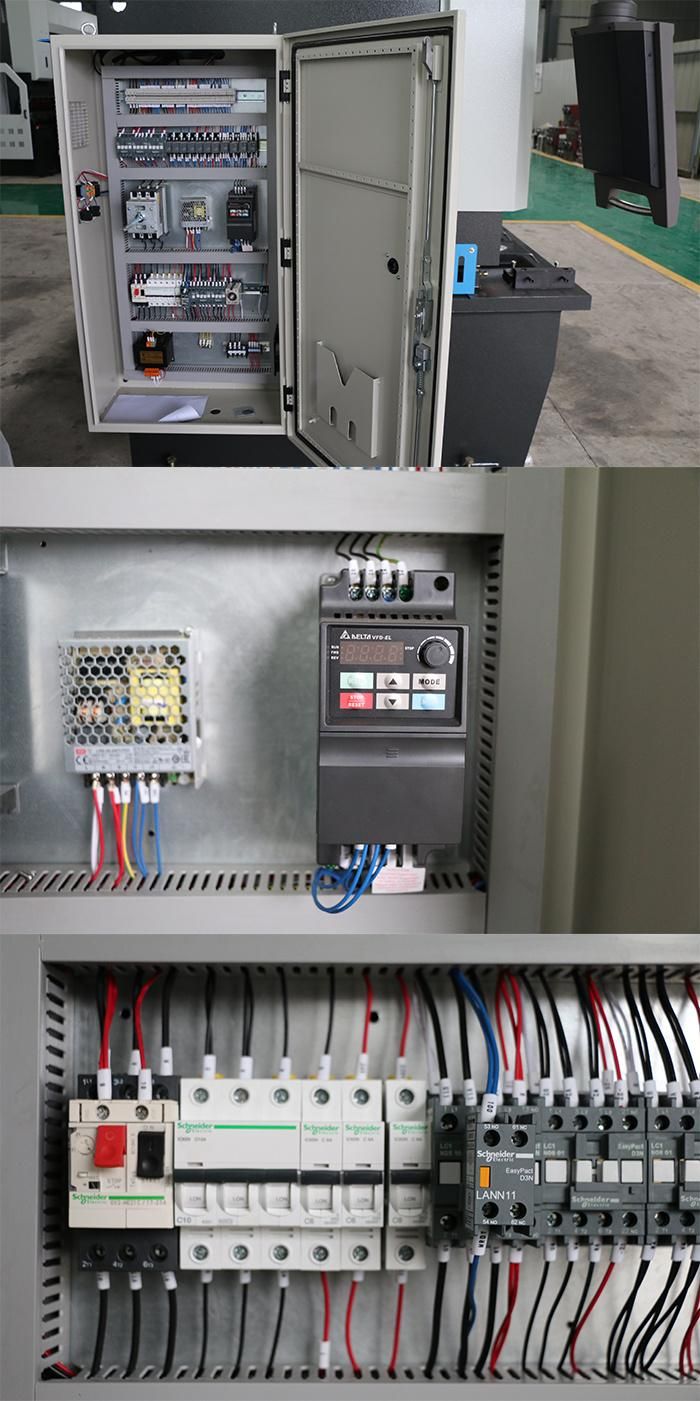

• Main Electrical Components：Schneider

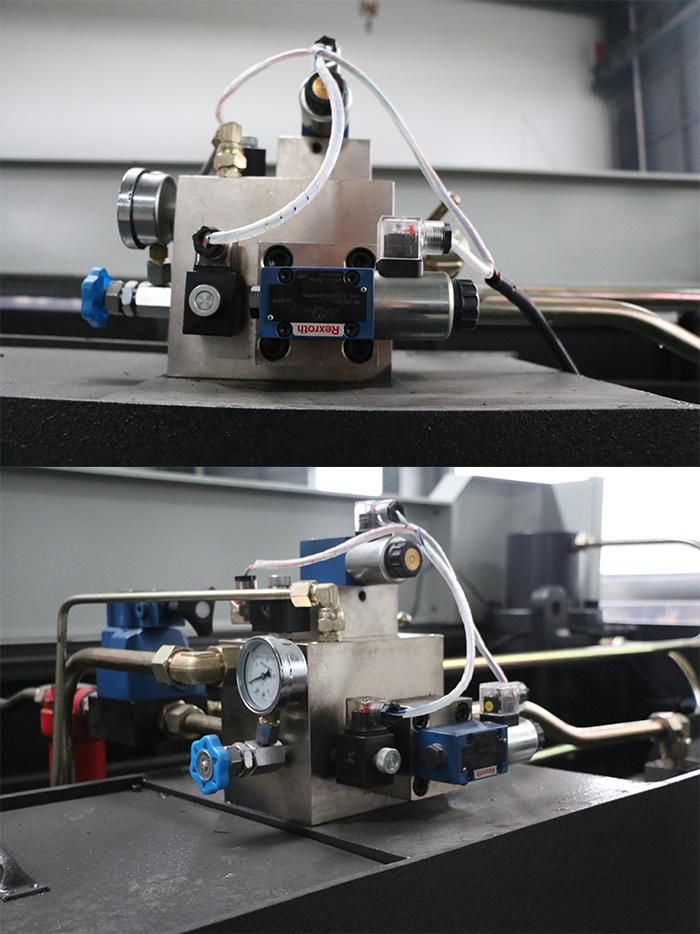

• Valve：Rexroth
• Power：5.5kw
• Size：3130×1650×1620mm
• Weight：3500kg
• Transport Package：20gp
• Specification：QC11K
• Trademark：LZK
• Origin：China
• HS Code：8462391000
• Production Capacity：100 Sets One Month

QC11K hydraulic guillotine sheet metal shearing machine features:The machine adopts the guillotine type structure, which is mainly composed of a frame, a knife holder, a blade gap adjusting mechanism, a pressing material mechanism, a front stopper, a rear stopper, a hydraulic system and an electrical system..The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.The use of German large-scale floor boring and milling machines, using a processing method, for precision machining, to ensure machining accuracy.Simple and effective blade adjusting mechanism rearranges blade clearance by NC system, improving the cutting quality.With reference to ergonomic design, easy operation with NC system surface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.Estun E21 control system, very stable, easy operationBlade Material is 6CrW2SSchneider main electrical components. Taiwan DELTA frequence converter maintaining high precision and stable performance. Germany Rexroth Valve, low noise and long service life. Siemens Main MotorAmerica Sunny Oil PumpTaiwan Ball Screw and Linear Guide Rail, precision positioning result.  Backgauge motor with reducer for good precision.

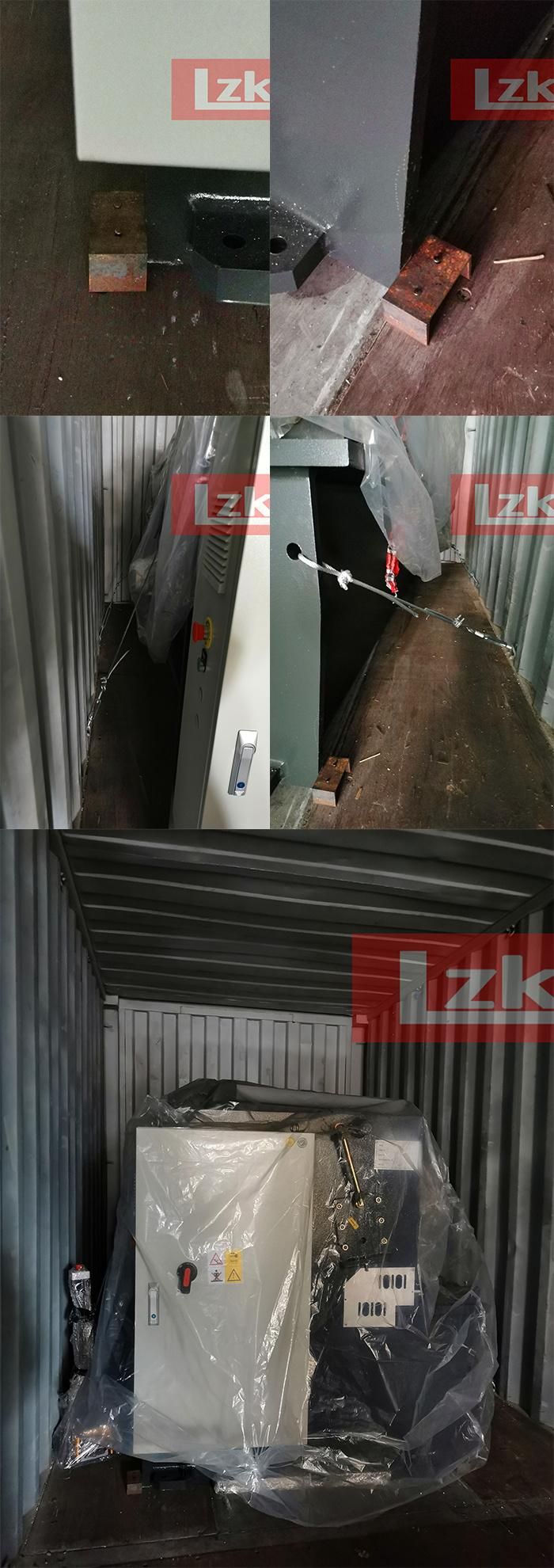

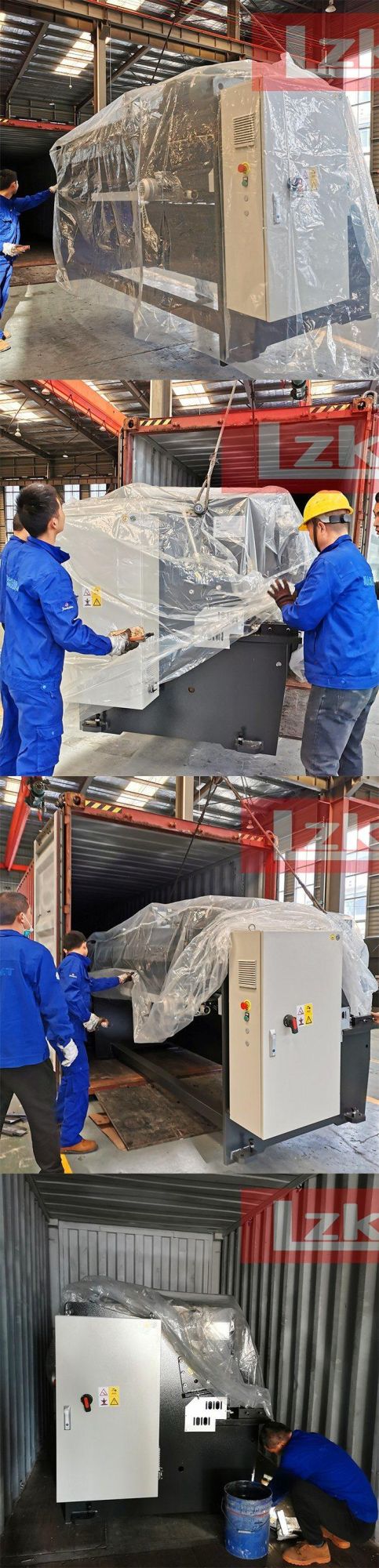

Guillotine loading process
Customer visit from different countries for inspection and cooperation
