Cutting & Fold-bend Machine

QC12y Shearing Machine with Hydraulic Power and Nc

Shanghai YingXin World Machinery Co., Ltd.
  • After-sales Service:Available
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Warranty:2 Years
  • QC12y Shearing Machine:Metal Cutting Machine

Base Info

  • Model NO.:QC12Y 6x2500
  • Control System:E21s Nc
  • Transport Package:in Container
  • Specification:ISO
  • Trademark:WORLD
  • Origin:China
  • HS Code:84295100
  • Production Capacity:1000 PCS,Year

Description

Basic Info.

Model NO. QC12Y 6x2500 Control System E21s Nc Transport Package in Container Specification ISO Trademark WORLD Origin China HS Code 84295100 Production Capacity 1000 PCS/Year

Product Description

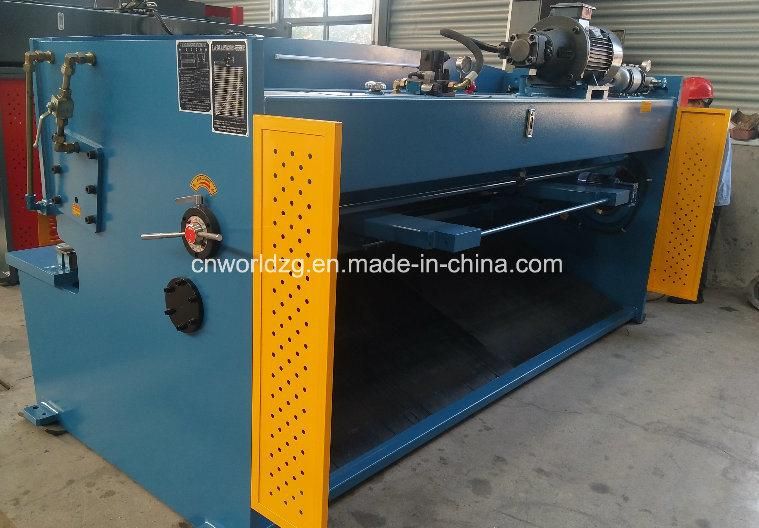

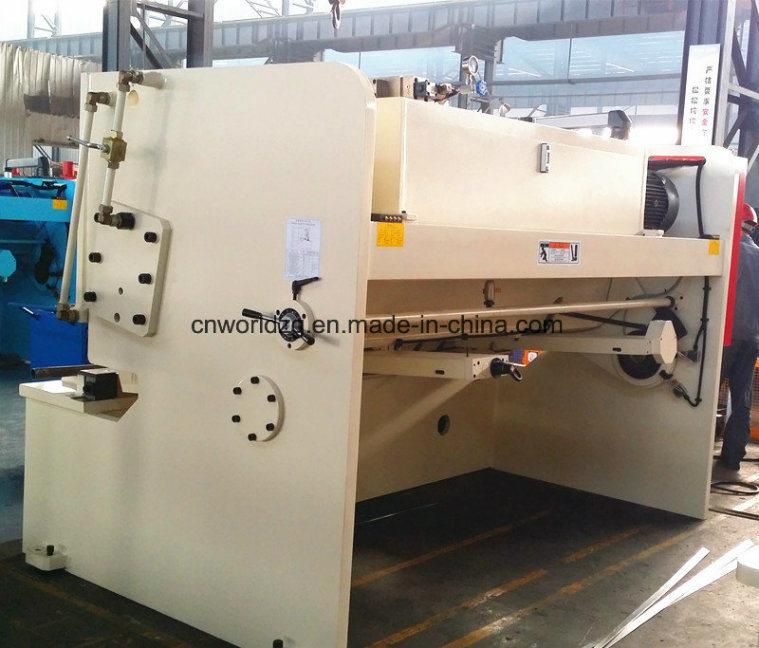

QC12y Swing Beam Type Plate Cutting Hydraulic Shearing Machine

Features:

1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.

Details:

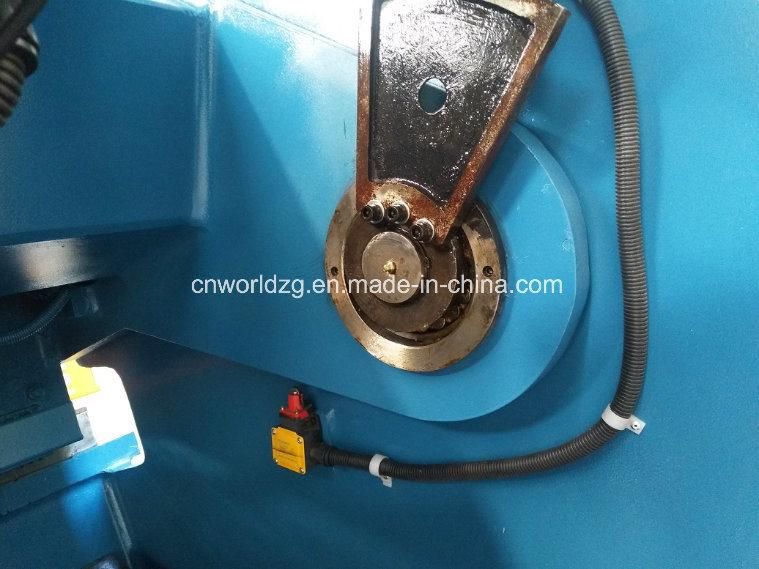

1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.

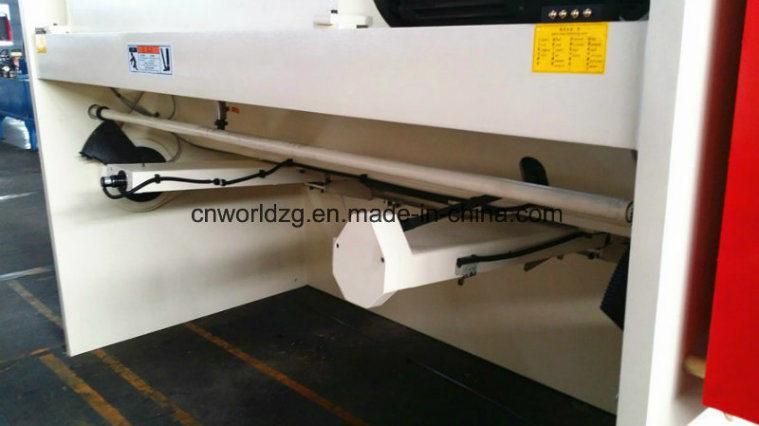

2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.

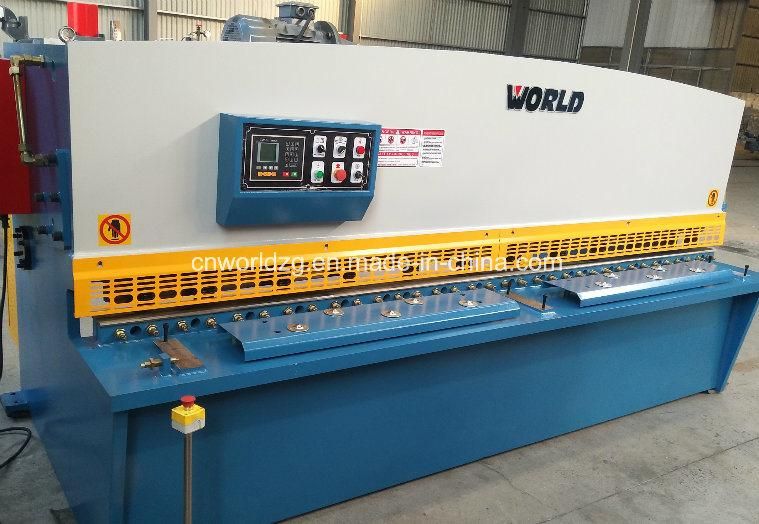

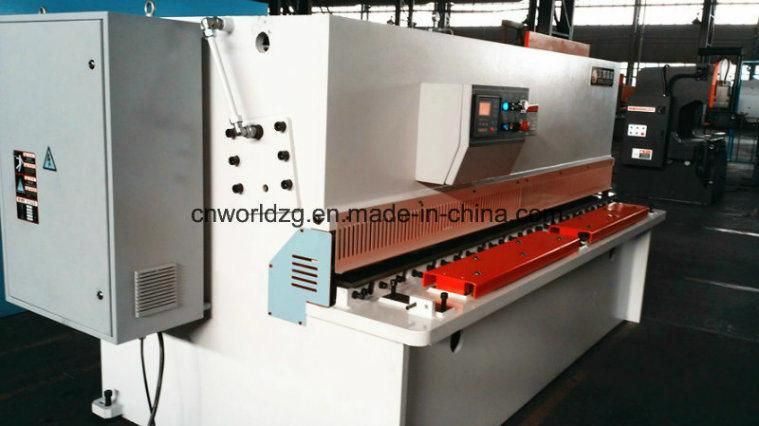

3-English control panel with counter, emergency stop button is equipped for safety.

QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc
QC12y Shearing Machine with Hydraulic Power and Nc

Specifications:
ItemsunitQC12Y-4x2500QC12Y-4x3200QC12Y-4x4000
Max. cutting thicknessmm444
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm161410
Main motorkW45.55.5
Lengthmm304038404800
Widthmm150015001500
Heightmm150016001700
ItemsunitQC12Y-6x2500QC12Y-6x3200QC12Y-6x4000
Max. cutting thicknessmm666
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm151212
Main motorkW7.57.57.5
Lengthmm304038404800
Widthmm165016501650
Heightmm170017001700
ItemsunitQC12Y-8x2500QC12Y-8x3200QC12Y-8x4000
Max. cutting thicknessmm888
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm141210
Main motorkW7.57.511
Lengthmm304038604800
Widthmm170017001700
Heightmm170017001700
