• Model NO.：SMART-CNC30-AE-LR
• Type：Pipe and Tube Bending Machine
• Electric Axis：11 Axis Servo
• CNC System：Mitsubishi
• Bend Direction：Left and Right Bending
• Transport Package：Polywood Case
• Specification：LWH: 4800x1250x1500mm, GW: 2200kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. SMART-CNC30-AE-LR Type Pipe and Tube Bending Machine Electric Axis 11 Axis Servo CNC System Mitsubishi Bend Direction Left and Right Bending Transport Package Polywood Case Specification LWH: 4800x1250x1500mm, GW: 2200kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

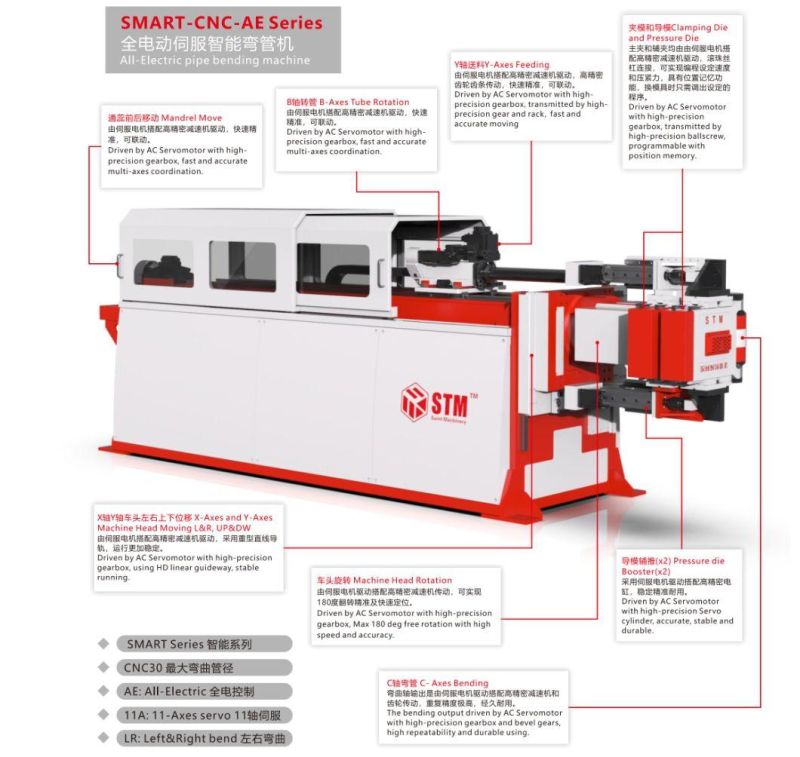

SMART-CNC30-AE is an all-electric left and right CNC tube bending with 11-axis electric servo. It has high precise bending and high challenge processing machine. The main features are followed.
1. Bending (C-axis) by electric servo motor + transmission gears
2. Main clamp die by electric servo motor + transmission gears
3. Pressure die clamped by electric servo motor + transmission gears, slide by electric servo motor + electric actuator (2 sets).
4. Carriage (Y-axis) by electric servo motor + transmission gears
5. Collet (B-axis) : rotation by electric servo motor + transmission gears, grip by pneumatic.
6. Tooling shift : motion up-down + left-right by electric servo motors(2 servomotors), can equip 6-stack toolings; one stack can be the rolling tooling for push bending.
7. Rotative workhead by electric servo motor + transmission gears.
8. Mandrel moving by electric servo motor + transmission gears.
9. Automatic friction pieces lubrication
10. Standing pedestal, serves double foot pedals, double controlled buttons. the emergency stop and realizes remote control
10. Industrial PC equipped with Windows system and assorted with touch screen display, capable of 3D bending simulation, 3D preview.
