Kt Pneumatic High Speed Pipe Facing Machine

Watt Machinery Technology Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Control：Automatic
  • Application：Metal, Plastic

Base Info

  • Model NO.：KT
  • Power Source：Pneumatic
  • Layout：ID Mounted
  • Cutting Model：Blade Cutting
  • Beveling Angle：0,30,37.5 Degree
  • Motor Brand：Pneumatic
  • Beveling Type：Cold
  • Transport Package：Wooden Case
  • Trademark：Watt
  • Origin：China
  • HS Code：846190
  • Production Capacity：500

Description

Model

KT-24

KT-24A

KT-48

KT-48A

Feeding

Manual

Auto

Manual

Auto

Working range

Φ12.4-24mm

Φ12.4-24mm

Φ20-48mm

Φ20-48mm

Feeding stoke

20mm

20mm

20mm

20mm

Max thickness

5mm

5mm

5mm

5mm

No-load speed

300rpm

300rpm

300rpm

300rpm

Torque

50Nm

50Nm

50Nm

50Nm

Power

1.3HP

1.3HP

1.3HP

1.3HP

Air requirement

     1500-2000L/min @0.63-0.8Mpa

Machine Max width

59mm

59mm

59mm

59mm

Weight

7KG

12KG

8KG

13KG

Above parameters just for reference only, not acceptance criteria

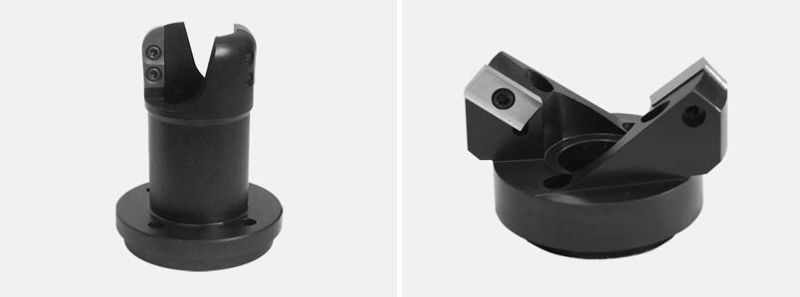

TOOLING

Other bevel angles and pipe material, please declare before order
Kt Pneumatic High Speed Pipe Facing Machine

Order Guide
Before you place order to us, please let us know the following information:
  • Choose the right ModelConfirm the beveling angel required
  • Confirm the welding joint required (U, V, Double V or Compound preparation)
  • Advise your pipe material ( Carbon steel, stainless steel or others)
  • Other special demands about machine
  • The spare parts needed
  •
Method of operation:
1. Measure the size of the pipe to be machined, select the swelling block according to the swelling block diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.
2. According to the processing requirements, select the tool table in the appropriate angle of the tool, installed in the machine cutter, tighten the bolt, fixed tool.
3. Rotate the feed hand wheel to extend the feed spindle.
4. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left enough feed space.
5. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.
6. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.
7. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the machine from the tube.
