ISD ISF SKD HYD Split Frame Pipe Cutting and Beveling Machine
Wenzhou Co-Pack Machine Co., Ltd.- Certification:CE, ISO 9001:2008
- Condition:New
Base Info
- Model NO.:ISD ISF SKD HYD
- Control:Semi-Automatic
- Application:Metal
- Power Source:Electric , Pneumatic , NC , Hydraulic
- Layout:Portable
- Transport Package:Wooden Case , Metal Box (Optional)
- Trademark:Co-Pack
- Origin:Wenzhou, China
- HS Code:8461909000
- Production Capacity:1000 Sets,Year
Description
Pipe Capacity ODWall Thickness Rotating Electric Pneumatic mm inch mm rpm ISDS1 ISFS1 Ф12.5~25.4 0.5"~1" ≤15 34 ISDS1.5 ISFS1.5 Ф25.4~38.1 1"~1.5" ≤15 24 ISDS2 ISFS2 Ф38.1~50.8 1.5"~2" ≤15 23 ISDS2.5 ISFS2.5 Ф50.8~63.5 2"~2.5" ≤15 23 ISDS3 ISFS3 Ф63.5~76.2 2.5"~3" ≤15 23 ISDS3.5 ISFS3.5 Ф76.2~88.9 3"~3.5" ≤15 23 ISDS4 ISFS4 Ф88.9~101.6 3.5"~4" ≤15 20 ISDS5 ISFS5 Ф101.6~127 4"~5" ≤15 20 ISDS6 ISFS6 Ф127~152.4 5"~6" ≤15 14 Above parameters just for reference only, not acceptance criteria.
Power Supplies
Tooling
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand
Power Supplies

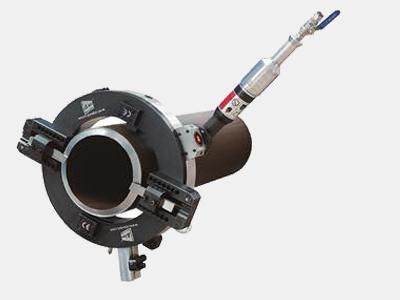

Electric Convenient power supply Stable performance Popular choice Electric requirement: 220-240V 1PH 50/60HZ Power: 1.43KW, 1.7KW, 2.4KW Double motor for big model or heavy duty | Pneumatic Explosion Proof Stable performance Easy to maintenance Air requirement: 1500-2000L/min @0.63-0.8Mpa Power: 2HP, 3HP, 4HP Double motor for big model or heavy duty |

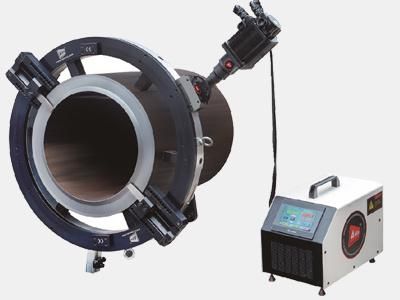

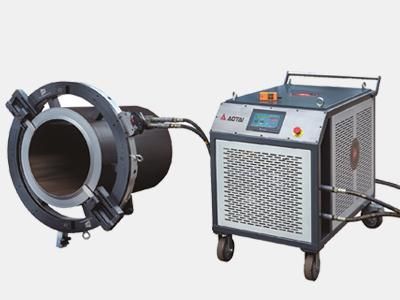

NC Powerful drive, high efficiency Low noise, stable performance Ideal for heavy wall thickness & large size pipe Electric requirement: 230V 1PH 50/60Hz; 380V 3PH 50/60Hz Power: 2.0KW or 3.0KW Double motor for big model or heavy duty | Hydraulic Powerful drive, high efficiency Stable performance, low noise, anti-explosion Ideal for heavy wall thickness & large size pipe Hydraulic requirement: 28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated Pressure: 13MPa Rated flow: 28L/min Max. Torque: 380NM |
Tooling
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand

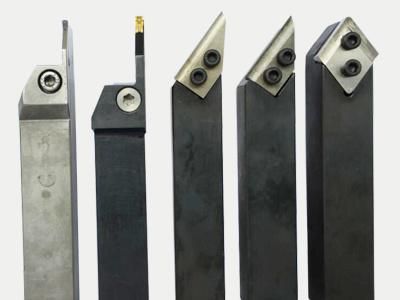

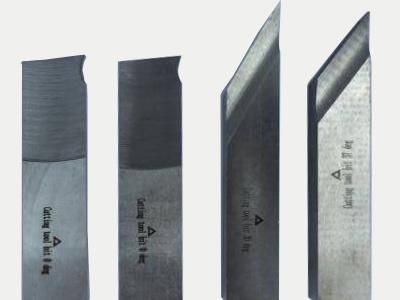

Form Style Material: M42 and M35 Type: Sever, bevel, double bevel compound bevel,counter bore Angle: 0°, 30°, 37.5° Double 30°, 37.5°+10° Size: 90mm, 150mm, 200mm | Insert style Material: Holder HSS Insert: HSS-Co or Carbide Type: Sever, bevel, double bevel, compound bevel Angle: 0°, 30°, 37.5°, Double 30°, 37.5°+10° Size: 90mm, 150mm, 200mm |
