PLC/Ipc Controlling CNC Mandrel Pipe Bending Machine with Servo Motor Driven (GM-SB-28CNC-3A-1S)
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:1-year
- Condition:New
- Certification:ISO 9001:2000, CE
- Automation:Automatic
- Suitable for:Copper, Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.:GM-SB-28CNC-3A-1S
- Type:Cnc Bending Machine
- Transport Package:Iron Frame
- Specification:4000X650X1300mm
- Trademark:GMACC
- Origin:China
- HS Code:8462219000
- Production Capacity:5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-28CNC-3A-1S Type Cnc Bending Machine Transport Package Iron Frame Specification 4000X650X1300mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description

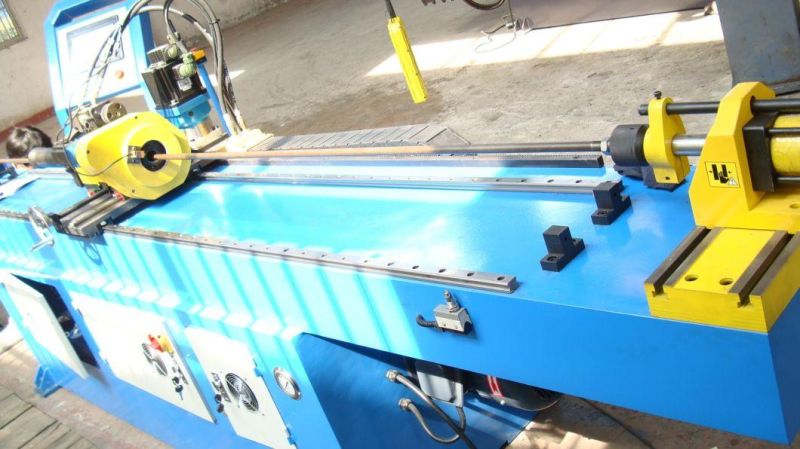

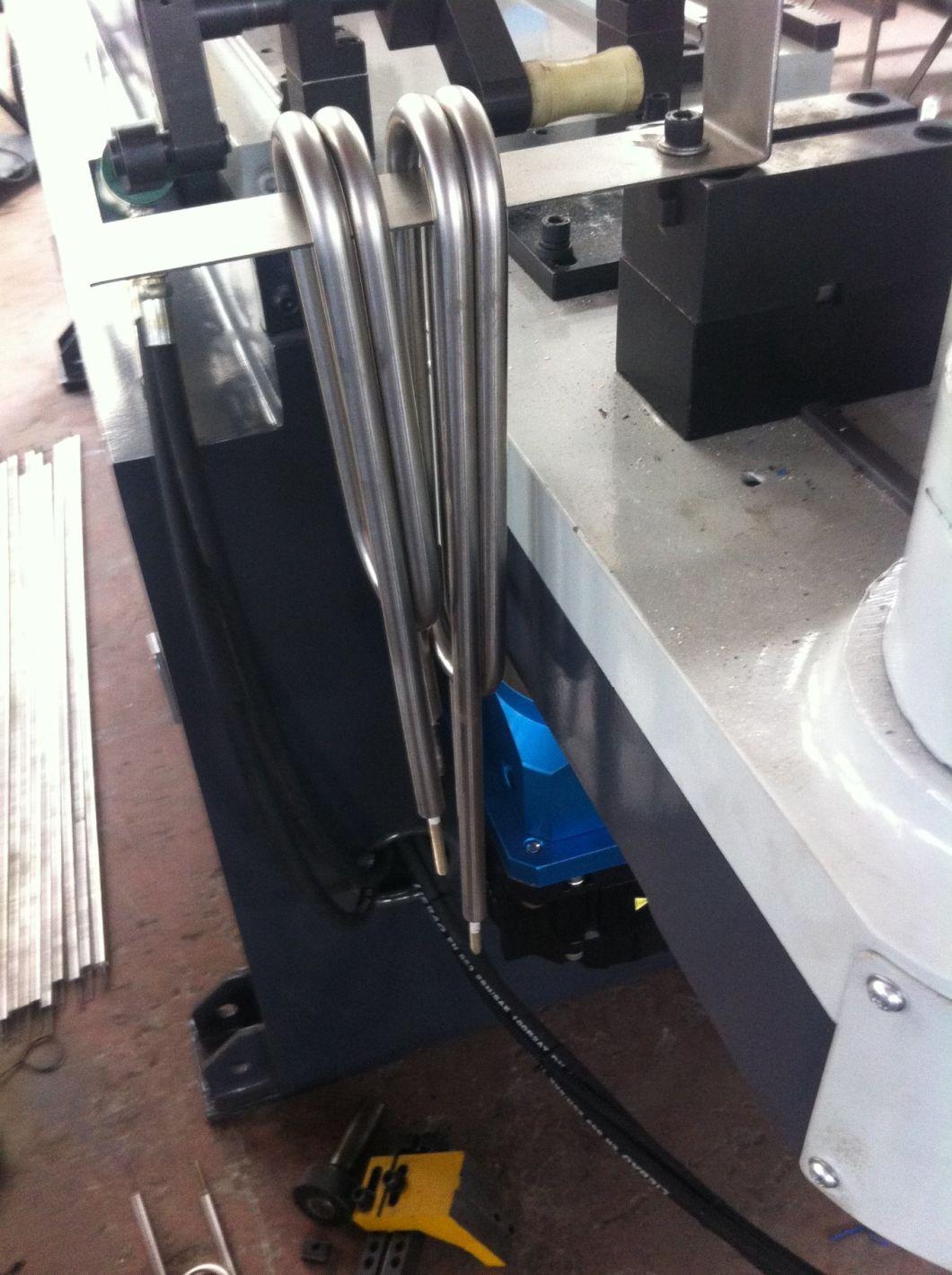

GM-SB-28CNC Full-Auto Numerical Control Single-Head Bending MachineModel:SB28×3A×1S
- Machine Characteristics
- SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.Pipe rotating (B axis) and pipe feeding(Y axis) and pipe bending(C axis) are all driven by servomotor.
- Main Technical Parameter
Name | Unit | Parameter |
Max. Bending Capacity | mm | ¢28*2 |
Bending Radius Range | mm | 20-180 |
Max. Bending Angle | ° | 190° |
Bending Speed | °/sec | 180 |
Turning Speed | °/sec | 280 |
Feeding Speed | mm/sec | 1000 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |
Turning Servomotor Power | kW | 0.4 |
Feeding Servomotor Power | kW | 0.4 |
Through effective distance | mm | 3200 |
L*W*H (Packaging Dimension) | mm | 2900*800*1500 |
Weight | T | 1.0 |
- Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Siemens Beide or Suzhou Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Oil way Board | Suzhou Boguan |
Cylinder | Shanghai Qifan |
Oil tube | Suzhou Kejia |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Servo Motor | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Switch power | Wenzhou Changxing |
Contactor | German SCHNEIDER(Imported) |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3. Q: What certificate do you have?

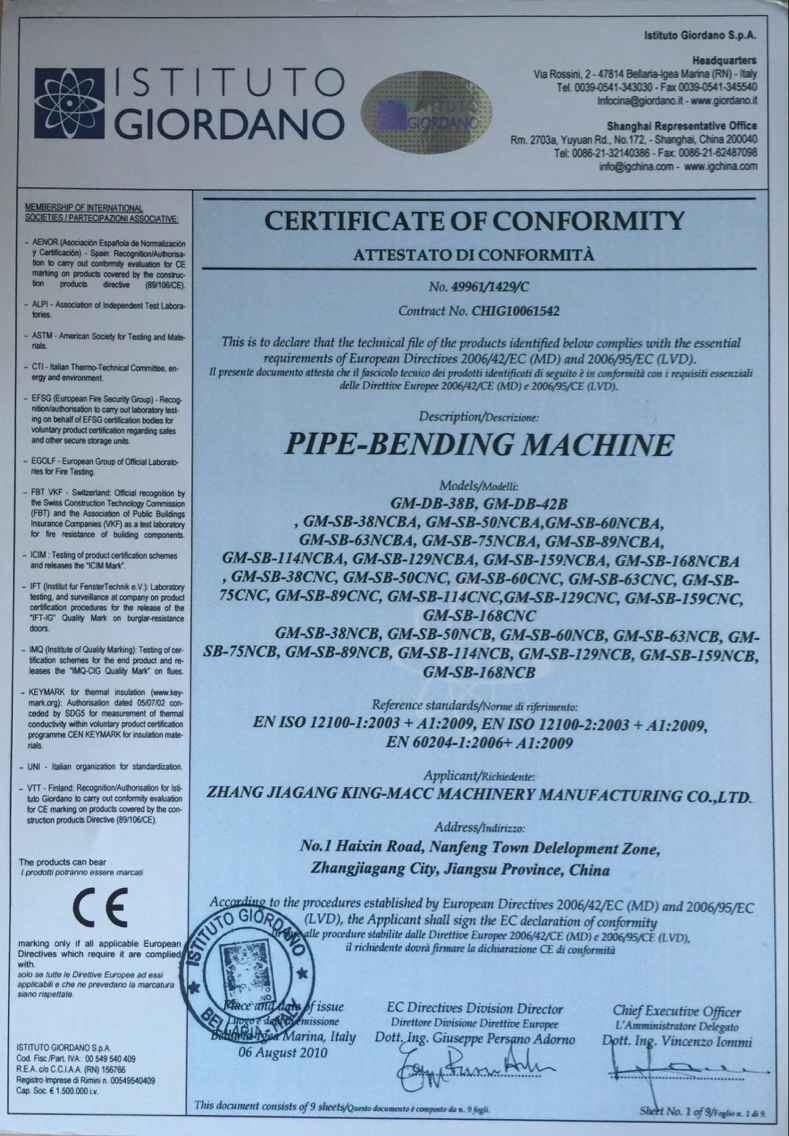

A: We have both ISO and CE certificate.
