• Model NO.：HG 6X3200
• Cutting Length：3200mm
• Blade Gap Adjustment：Automatically
• Cutting Angle Adjustment：Automatically
• Main Motor Power：7.5kw
• Weight：6500kg

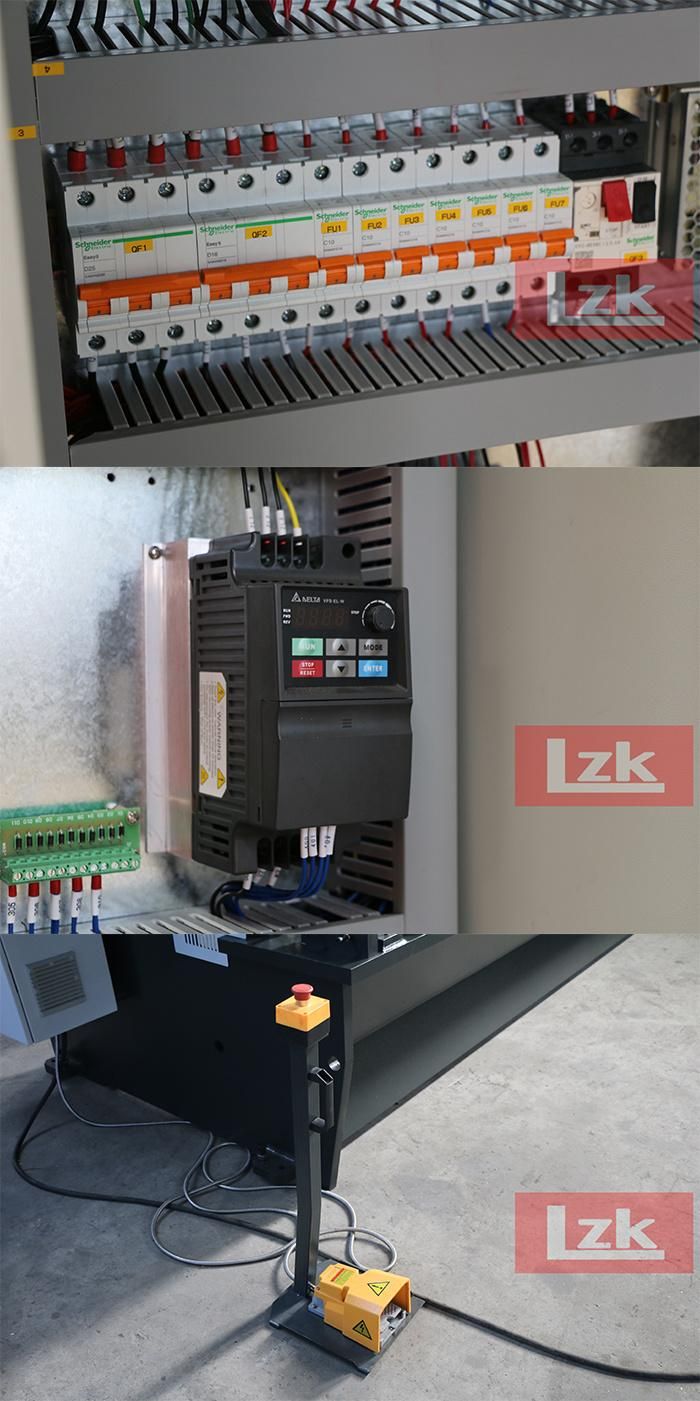

• Main Electrical Components：Schneider
• Main Motor：Siemens

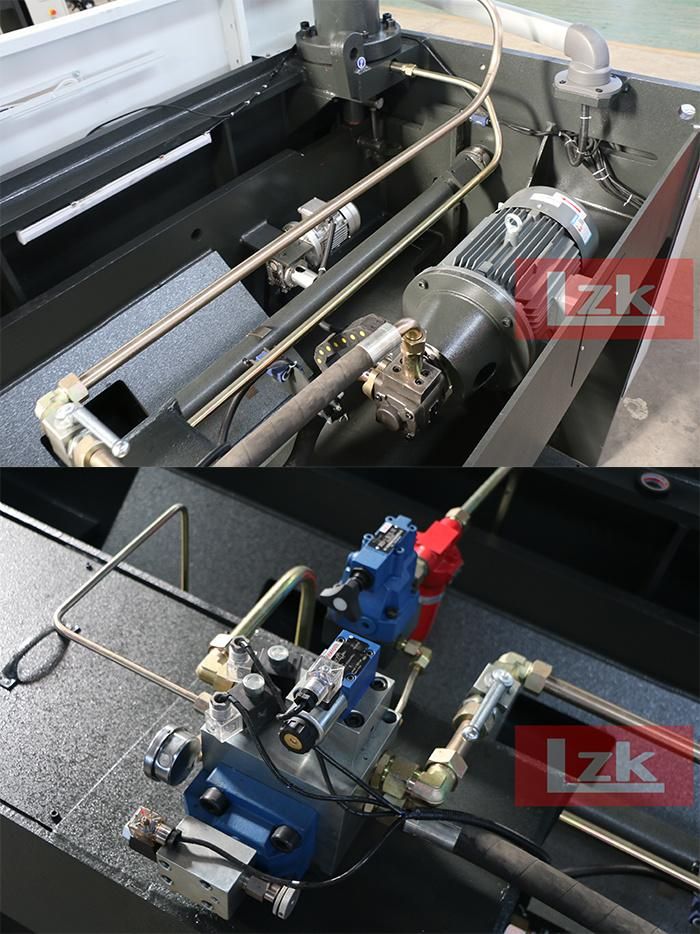

• Hydraulic Valve System：Bosch-Rexroth
• Oil Pump：Sunny
• Tool Material：42CrMo
• Transport Package：Plastic Film
• Specification：4100x1700x2000
• Trademark：LZK
• Origin：China
• HS Code：8462391000
• Production Capacity：100set,Month

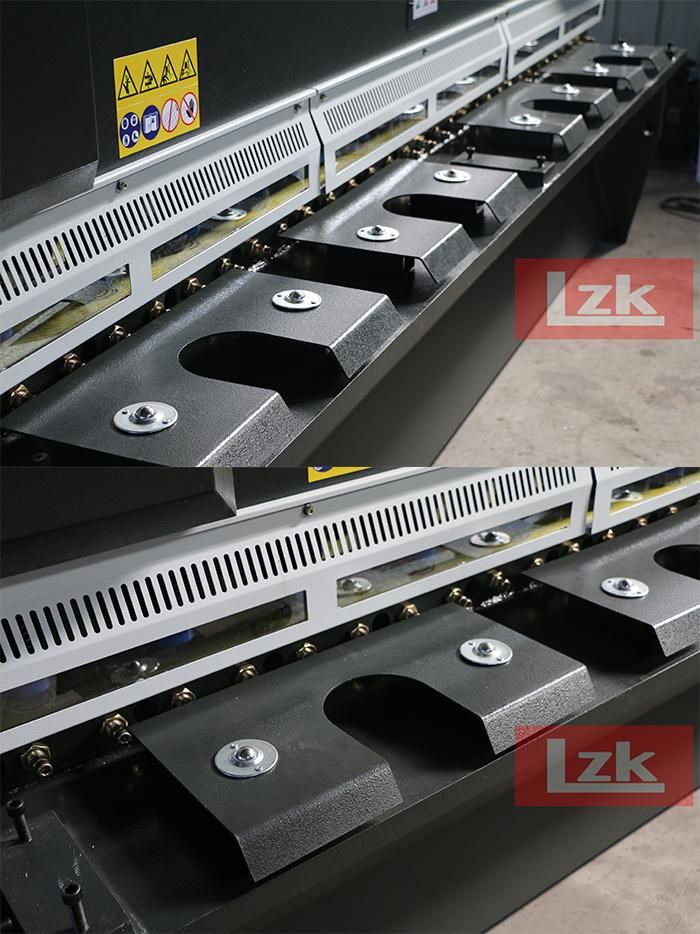

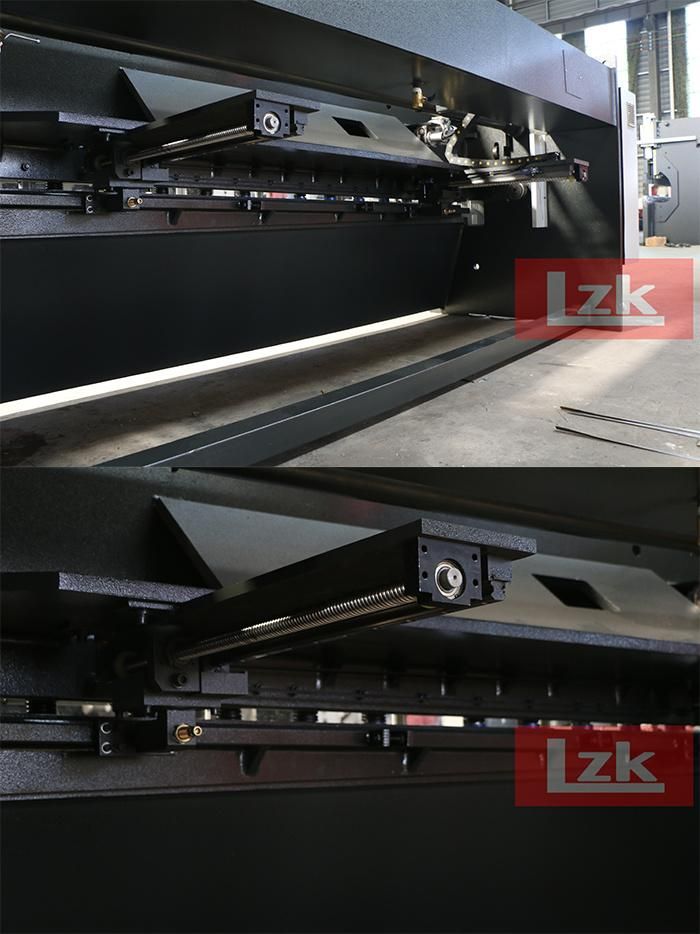

The machine adopts the guillotine type structure, which is mainly composed of a frame, a knife holder, a blade gap adjusting mechanism, a pressing material mechanism, a front stopper, a rear stopper, a hydraulic system and an electrical system.The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.P40T CNC System

-TFT-Dispaly with touch operation
-Manual inching, single and program mode
-Interated program memory and auto-cutting machine
-Material depending calculation of gap, angle and pressure
-Sheet support and return to the front function
-Analog inputs and outputs
-Digital outputs up to 2A
-Program memory of up to 40 programs Up to 25 steps per program



Packing and Loading



Customer in use of machine

German CustomerRussia Customer
Customer from different countries come for inspection and cooperation.
