• Model NO.：2-6mm
• Type：Cnc Bending Machine
• Transport Package：Standard Export Polywood Package (Fumigation Free
• Specification：900 KGS
• Origin：China
• Production Capacity：500sets, Month

Basic Info.

Model NO. 2-6mm Type Cnc Bending Machine Transport Package Standard Export Polywood Package (Fumigation Free Specification 900 KGS Origin China Production Capacity 500sets/ Month

Product Description

Note:

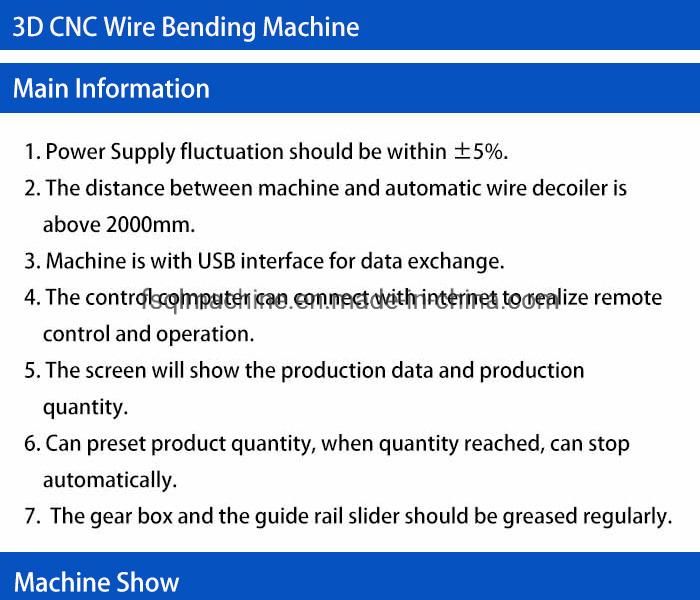

1. The 3D CNC Wire Bending Machine has high-end controller and is custom made generally.
2. The price range is for reference only.
3. Available wire diamter: ø2-ø6mm; ø3-ø8mm; ø4-ø10mm.
4. Please kindly provide your wire material, wire diameter, related pictures and drawings for the quotation.

Four reasons why you cannot miss Quanjiu.
Professional Manufacturer
Advanced Technology
Innovational Development
Quality Assuarance





Machine features:

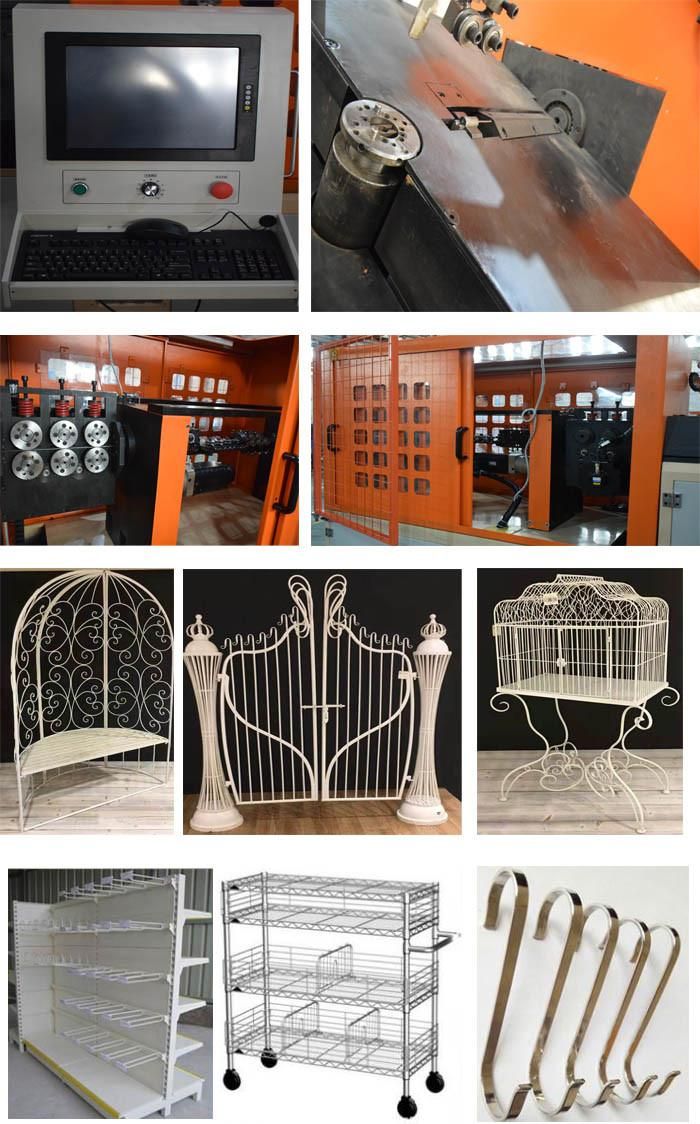

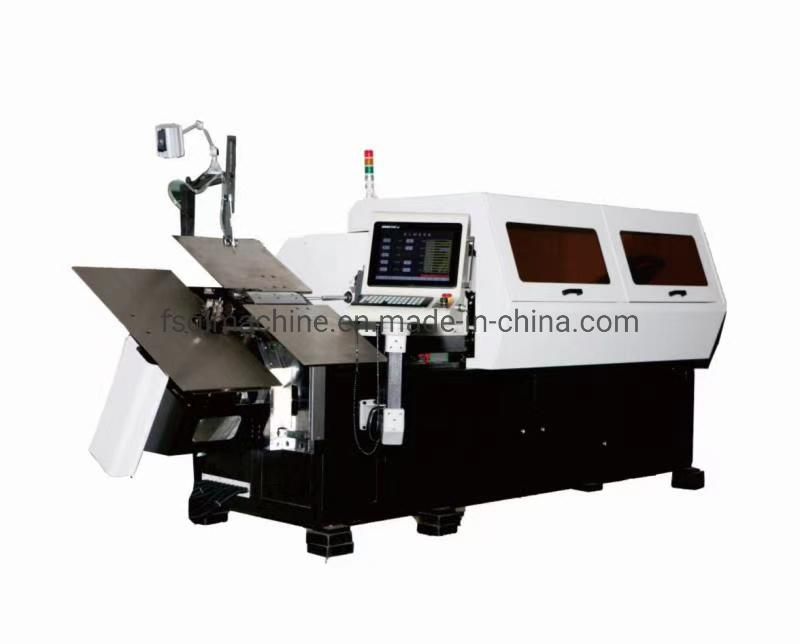

Model: XLC-70-8A wire bending machine
Processing wire diameter:  ∮3.0mm-∮8.0mm
Number of wire feeding wheel groups:   3 groups
Turning angle: 0°-unlimited
Lifting height of platform: +50mm to -170mm
Lifting height of twisting head: +20mm to -100mm
External torsion lifting height: +20mm to -55mm
Left and right movement range: 80mm to the left, 40mm to the right
The overall forward and backward movement range of the wire feed: forward 300mm,  backward 100mm

1. The overall twisting head can be offset left and right. (Advantages: internal torsion can be processed eccentrically, and torsion springs can be processed. R angles that can be used are more and more flexible) need to pass through the linear mechanism twice. Make the wire more stable. And when processing long parts, there is more space to move the wire feed box back. Short product time moves forward, making product faster and more stable)
2. The cutting knife can move back and forth (Advantages: the cutting knife can move back and forth, which is faster and more stable when processing short products, and when processing long products, there is more room for retreat, so that the product does not touch the cutting knife)
3. The line can be rotated 360° infinitely. (Advantages: The external motor will not break the motor and inductor wires, it is convenient to process and transfer wires> 360 degree complex products, and the adjustment is quick and convenient)
4. Use new computers. (Advantages: easier to operate, more convenient and faster)

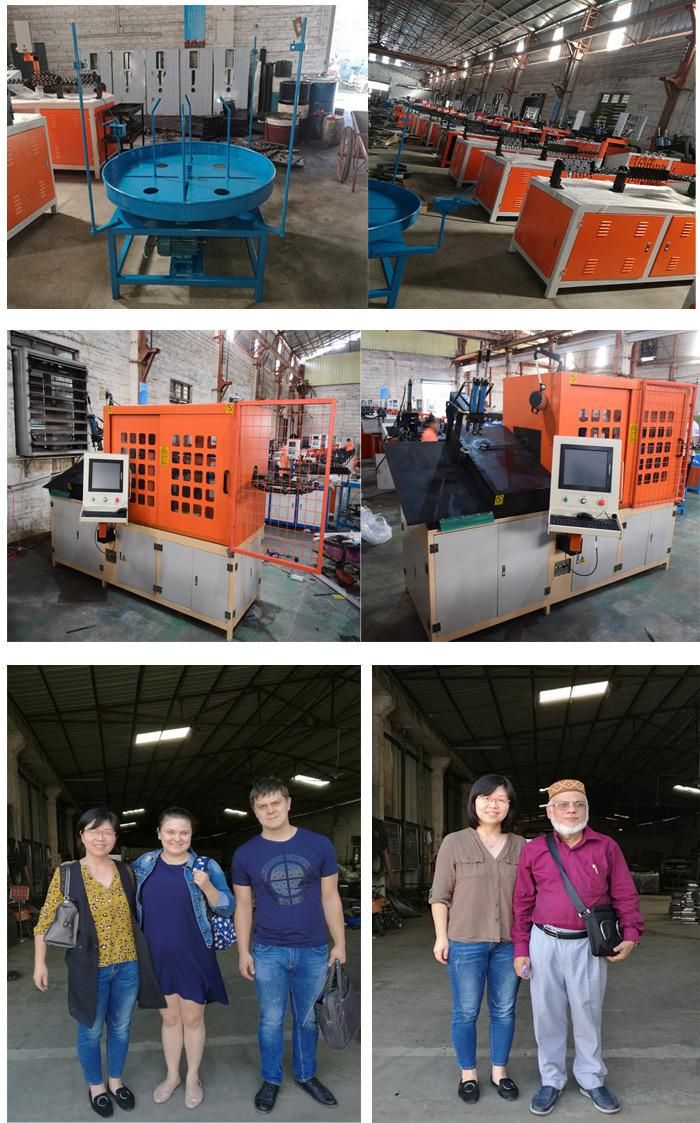

Workshop:

We are ready to take your orders.
