• Main Electrical Components：Schneider, France
• Valve：Atos, Italy
• Pump：Sumitomo, Japan,Rexroth, Germany
• Seal：Nok, Japan
• Blade Material：9crsi
• Machine Type：Swing Beam Type
• Color：as Customer
• Keyword：Hydraulic Shearing Machine
• Type：Shearing and Cutting
• Application：Machinery & Hardware
• Type for Cutting Machine：Hydraulic Cutting Machine
• Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
• Transport Package：Film Protective Package
• Specification：CE, ISO, SGS, BV
• Trademark：Hoston
• Origin：Jiangsu Province
• HS Code：84623190
• Production Capacity：100 Sets Per Month

Basic Info.

Main Electrical Components Schneider, France Valve Atos, Italy Pump Sumitomo, Japan/Rexroth, Germany Seal Nok, Japan Blade Material 9crsi Machine Type Swing Beam Type Color as Customer Keyword Hydraulic Shearing Machine Type Shearing and Cutting Application Machinery & Hardware Type for Cutting Machine Hydraulic Cutting Machine Type for Fold-Bending Machine Hydraulic Fold-Bend Machine Transport Package Film Protective Package Specification CE, ISO, SGS, BV Trademark Hoston Origin Jiangsu Province HS Code 84623190 Production Capacity 100 Sets Per Month

Product Description

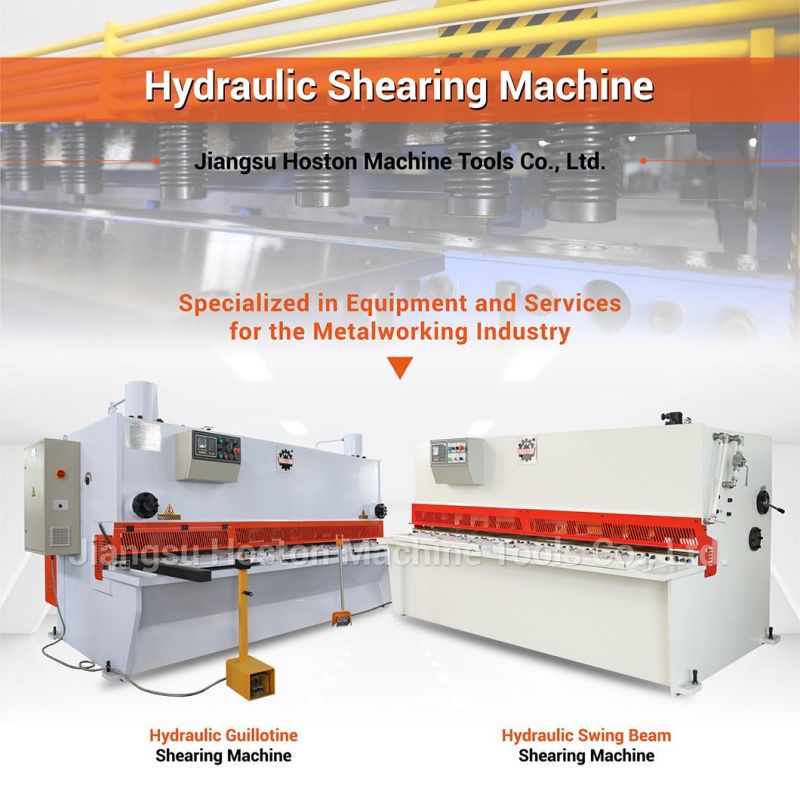

HOSTON hydraulic swing beam shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality.
HOSTON guillotine shear is available with a broad series of standard equipment but it is possible, at any moment, to add optional equipment according to requirement.

Shearing machine performance characteristics

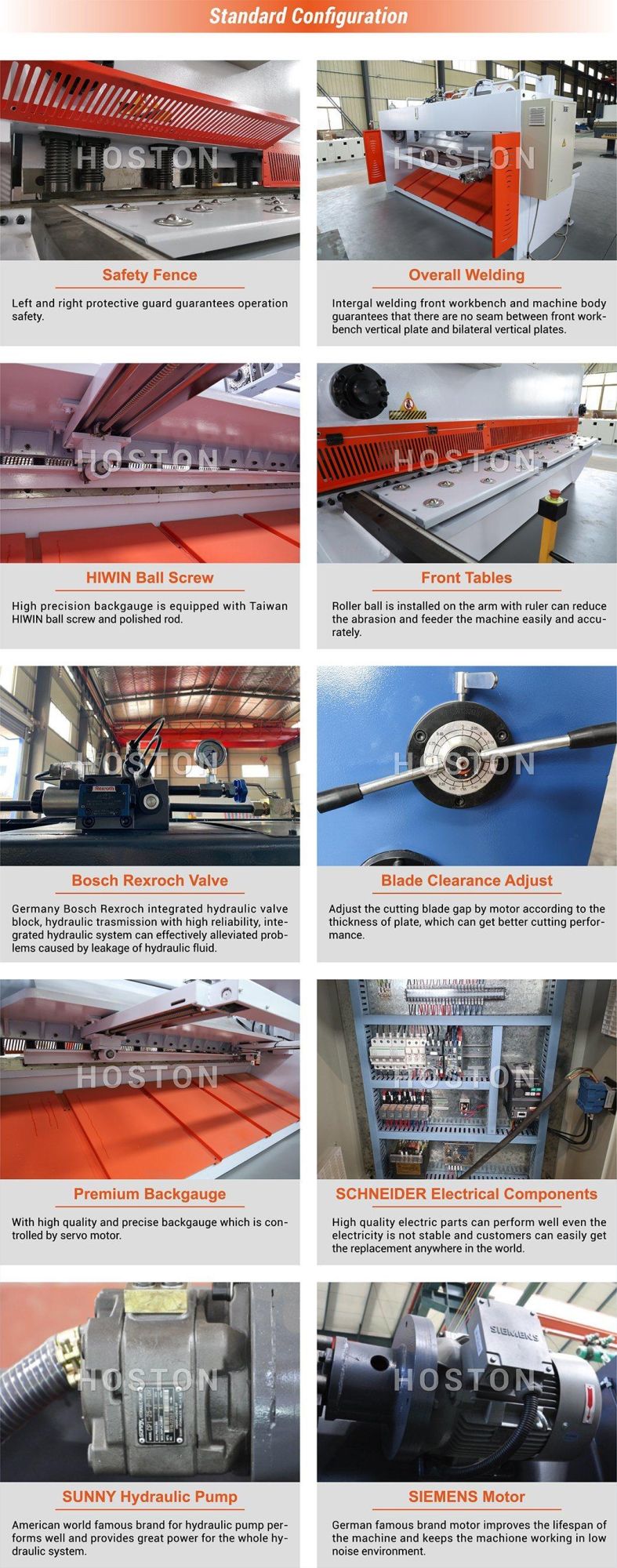

The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified range. The process requires adjustment, and the operation is simple and centralized using buttons.

1. The shearing machine adopts the overall welded frame structure and is subjected to vibration aging treatment. The machine tool has good rigidity, high precision and good precision retention.
2. The shearing machine adopts a three-point support shaft rolling guide rail. The upper tool holder performs rolling without gaps between the rolling guide rails, and the handwheel can be rotated to adjust the service life of the blade.
3, movable blade support and four-blade long blade, easy to adjust the blade gap uniformity, improve the cutting quality and extend the blade life.
4. The shearing machine adopts the serial type cylinder synchronous system. The machine is evenly stressed. By adjusting the flow of the series cylinder, the shear angle can be easily adjusted to meet the needs of different shearing plates.
5. The shearing machine adopts a motorized back gauge device and an electronic counter to facilitate adjustment of the position of the back gauge.


Swing Beam Shearing Machine Technical Parameter


Type	Cutting Thickness (mm)	Cutting length (mm)	Travel Times (times/min)	Backgauge Range (mm)	Cutting Angle	Throat Depth (mm)	Powe (KW)	Dimension LxWxH (mm)
HBS-4x2500	4	2500	22	550	1.5°	100	5.5	3020x1490x1500
HBS-4x3200	4	3200	19	550	1.5°	100	5.5	3720x1490x1550
HBS-6x2500	6	2500	18	550	1.5°	100	7.5	3030x1665x1620
HBS-6x3200	6	3200	15	550	1.5°	100	7.5	3730x1665x1620
HBS-6x6000	6	6000	8	750	1.5°	100	11	6580x2400x2100
HBS-8x2500	8	2500	14	550	1.5°	100	7.5	3040x1665x1620
HBS-8x3200	8	3200	12	550	1.5°	100	7.5	3740x1665x1620
HBS-10x2500	10	2500	11	550	2°	100	11	3050x1750x1700
HBS-10x3200	10	3200	10	550	2°	100	11	3750x1800x1750
HBS-10x6000	10	6000	6	750	2°	100	18.5	6650x2100x2300
HBS-12x2500	12	2500	12	750	2°	100	15	3100x2000x1850
HBS-12x3200	12	3200	10	750	2°	100	15	3900x2000x1850
HBS-16x2500	16	2500	11	750	2.5°	100	18.5	3150x2200x1900
HBS-16x3200	16	3200	9	750	2.5°	100	18.5	3950x2200x1900
HBS-16x6000	16	6000	4	750	2.5°	100	22	6850x3100x2700
HBS-20x2500	20	2500	8	750	2.5°	100	22	3200x2180x2000
HBS-20x3200	20	3200	7	750	2.5°	100	22	4000x2220x2100
HBS-25x2500	25	2500	7	750	3°	120	37	3220x2280x2200
HBS-25x3200	25	3200	6	750	3°	120	37	4020x2330x2220
HBS-30x3200	30	3200	5	750	3.5°	120	45	4050x2450x2360

Guilotine Shearing Machine Technical Parameter


Type	Cutting thickness (mm)	Cutting length(mm)	Travel Times (times/min)	Back Gauge Distance (mm)	Cutting Angle	Throat Depth (mm)	Power (KW)	Dimension LxWxH (mm)
HGS-6x2500	6	2500	18	550	1.5°	100	7.5	3100x1600x2050
HGS-6x3200	6	3200	15	550	1.5	100	7.5	3800x1600x2050
HGS-6x4000	6	4000	12	550	1.5°	100	7.5	4600x1600x2100
HGS-6x6000	6	6000	8	750	1.5°	100	11	6600x1900x2500
HGS-8x2500	8	2500	14	550	1.5°	100	7.5	3100x1600x2000
HGS-8x3200	8	3200	12	550	1.5°	100	7.5	3800x1600x2000
HGS-8x4000	8	4000	10	550	1.5°	100	11	4600x1600x2100
HGS-8x6000	8	6000	6	750	1.5°	100	15	6600x1900x2500
HGS-10x2500	10	2500	11	550	2°	100	11	3100x1700x2100
HGS-10x3200	10	3200	10	550	2°	100	11	3800x1700x2100
HGS-10x4000	10	4000	9	750	2°	100	15	4600x1700x2200
HGS-12x2500	12	2500	12	750	2°	100	15	3200x1800x2250
HGS-12x3200	12	3200	10	750	2	100	15	3900x1800x2250
HGS-12x4000	12	4000	8	750	2°	100	18.5	4700x1800x2400
HGS-12x6000	12	6000	5	750	2°	100	22	6800x2000x2600
HGS-16x2500	16	2500	11	750	2.5°	100	18.5	3400x2100x2500
HGS-16x3200	16	3200	9	750	2.5°	100	18.5	4100x2100x2500
HGS-16x4000	16	4000	6	750	2.5°	100	22	4900x2100x2600
HGS-16x6000	16	6000	4	750	2.5°	100	22	7000x2300x2800
HGS-20x2500	20	2500	8	750	2.5°	100	22	3400x2100x2600
HGS-20x3200	20	3200	7	750	2.5°	100	22	4100x2100x2600
HGS-20x4000	20	4000	6	750	2.5°	100	30	4900x2200x2700
HGS-25x2500	25	2500	7	750	3°	120	37'	3500x2200x2700
HGS-25x3200	25	3200	6	750	3°	120	37	4200x2200x2800
HGS-25x4000	25	4000	5	750	3°	120	37	5000x2300x2900
HGS-30x2500	30	2500	6	750	3.5°	120	45	3600x2300x2800
HGS-30x3200	30	3200	5	750	3.5°	120	45	4300x2300x2900
HGS-30x4000	30	4000	5	750	3.5°	120	45	5100x2400x3000
