• Model NO.：WD1631
• Type：Hydraulic Bending Machine
• Delem CNC System：Delem Da53t
• Electrical Components：Schneider Electrical From French
• Ball Screw：Hiwin From Taiwan Brand
• CNC Control Axis：Y1-Y2-X-R-Axis & Crowning
• Hydraulic System：Bosch-Rexroth From Germany
• Transport Package：Wooden Box
• Specification：11.1T
• Origin：China
• HS Code：8462219000
• Production Capacity：130

Basic Info.

Model NO. WD1631 Type Hydraulic Bending Machine Delem CNC System Delem Da53t Electrical Components Schneider Electrical From French Ball Screw Hiwin From Taiwan Brand CNC Control Axis Y1-Y2-X-R-Axis & Crowning Hydraulic System Bosch-Rexroth From Germany Transport Package Wooden Box Specification 11.1T Origin China HS Code 8462219000 Production Capacity 130

Product Description

MAIN COMPONENTS

CNC System	DELEM-DA53 control system, Switzerland
Electrical components	Schneider, France / Omron, Japan
Grating Ruler	Fagor, Spain
Servo motor/Servo drive	Yaskawa, Japan
Foot switch	KF, China
Hydraulic System/(Assembly)	/HOERBIGER, Germany
Ball Screw/ Linear guide	HIWIN/PMI/PYM from Taiwan
Seals	Walka, Japan

 TECHNICAL SPECIFICATION


Model:	Unit	WD160-3100
Control Axis		4 (Y1, Y2, X, R, V)
Bending force	Ton	160
Bending length	mm	3100
Distance between columns	mm	2600
Stroke	mm	200
Throat Depth	mm	400
Open Height	mm	471
WORKING SPEED:
Fast speed	mm/sec	150
Working speed	mm/sec	9
Return speed	mm/sec	150
CAPACITY:
Hydraulic oil standard	/	#46 Anti-wear hydraulic oil
Overall dimensions	mm	3275*1660*2935
Power supply		380V/7.5KW (As customer requirement)
Weight(Approx)	T	11.1

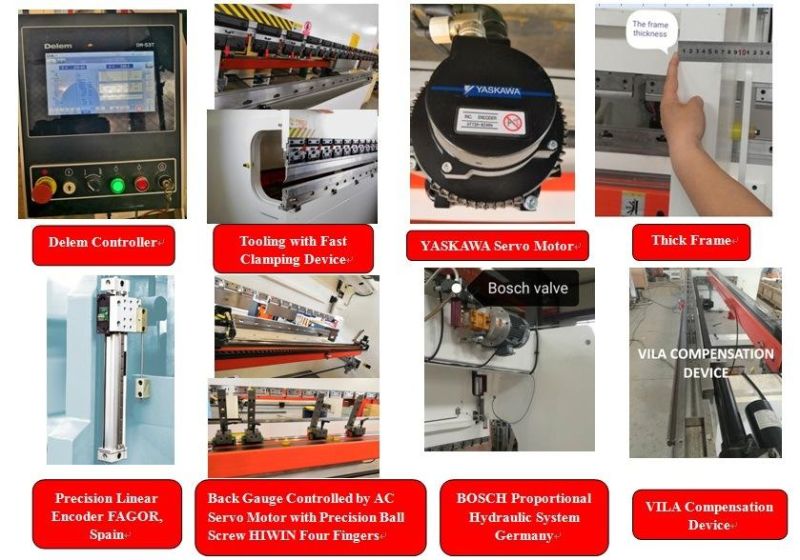

MAIN CONFIGURATION

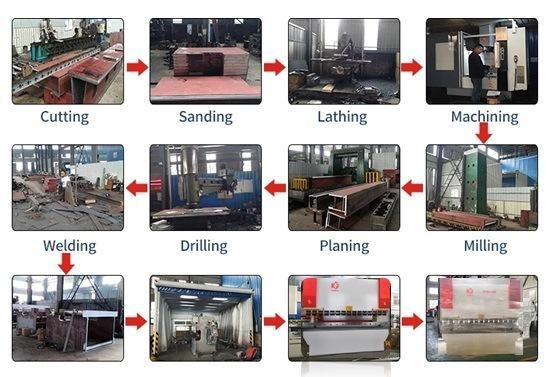

Processing Steps

Exhibitions





FAQ:
 1. Delivery time:
30-45 days according to different type.
2. Installation and commissioning time:
About 7 days.
3. Installation and commissioning issue:
We will send Kaifeng technicians to help with machine installation and commissioning, customer pays for round-trip airfare, local accommodation expenses.
4. Warranty time:
1 year after installation.
5. Payment term:
30% as prepayment balance 70% before delivery or L/C at sight.
6. We supply full English documents:
Including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.

WHY CHOOSE US?

1. China famous brand & top quality supplier.
2. Professional technical & service team.
3. Machine exported to many countries all over the world.
4. All the machine parts are international brand, quality guaranteed.
5. Customize & flexible products and service.

Welcome to visit our factory in Jinan!
