• Model NO.：W62Y-4.5x2500
• Type：Hydraulic Bending Machine
• Transport Package：Iron Pallet
• Specification：4.5x2500
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50 Units,Month

Basic Info.

Model NO. W62Y-4.5x2500 Type Hydraulic Bending Machine Transport Package Iron Pallet Specification 4.5x2500 Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/Month

Product Description

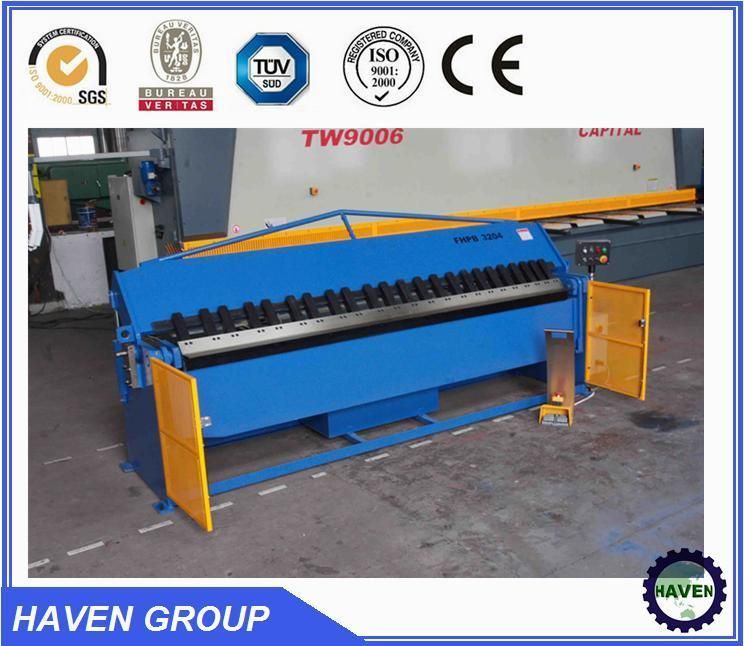

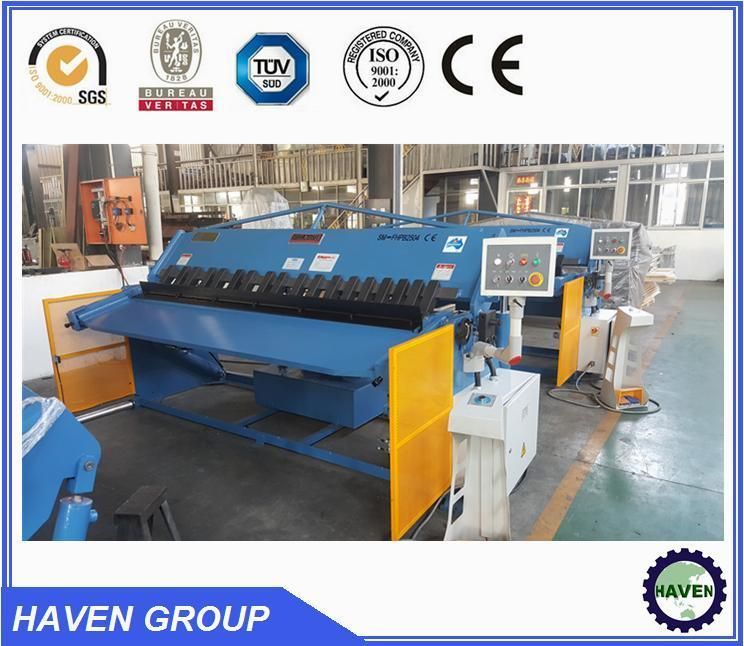

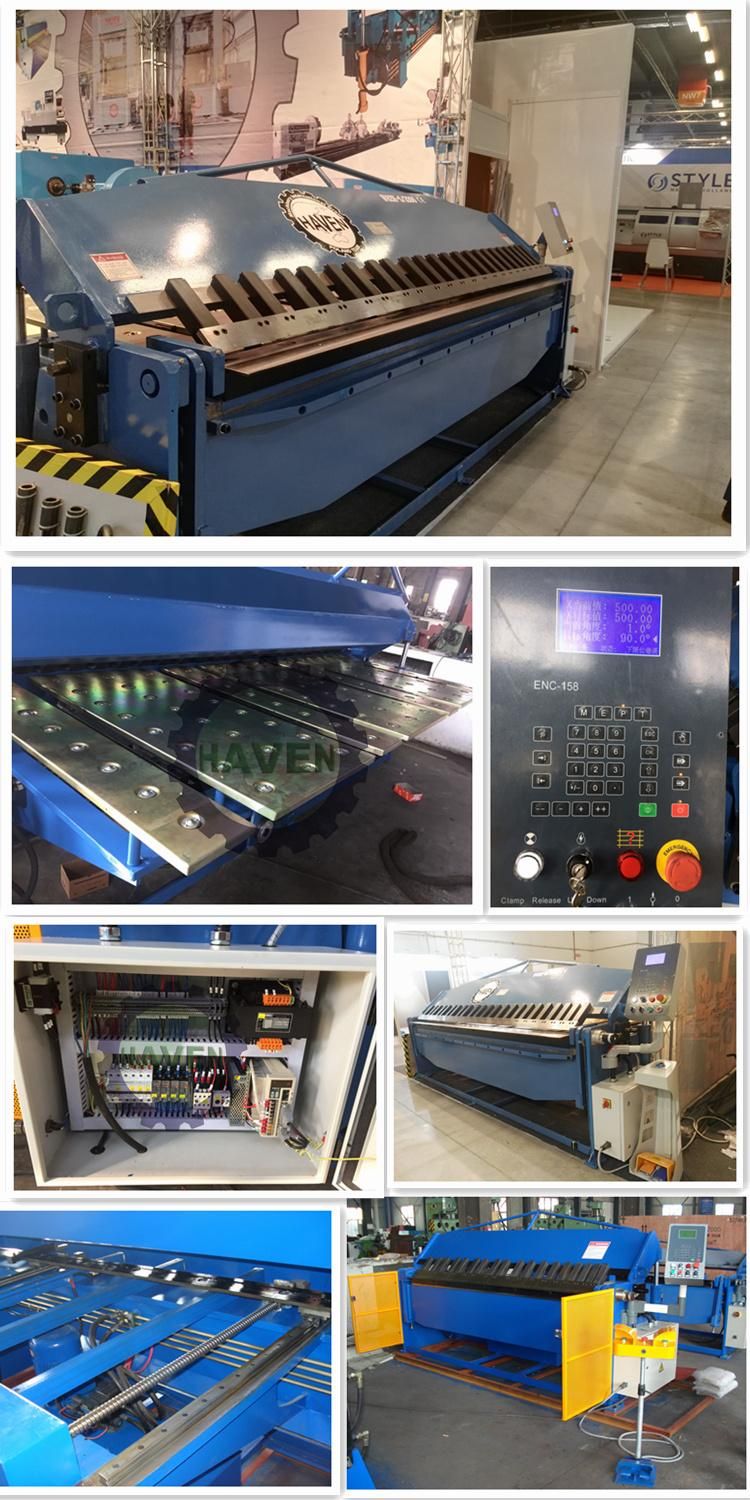

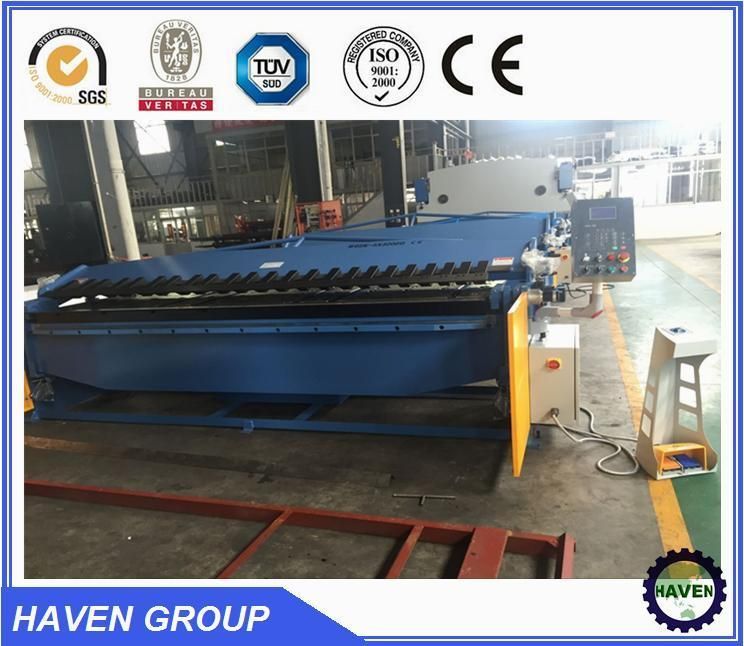

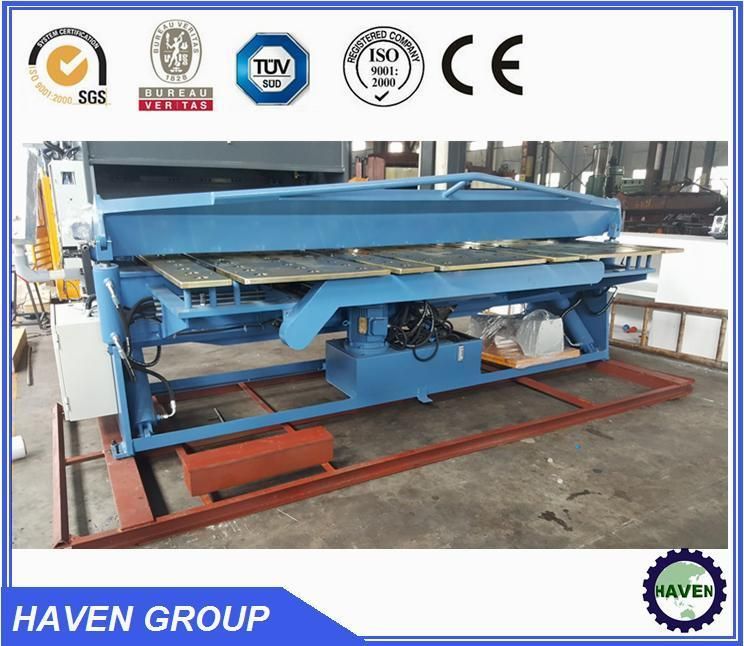

                                                       Hydraulic Pan Box Press Brake

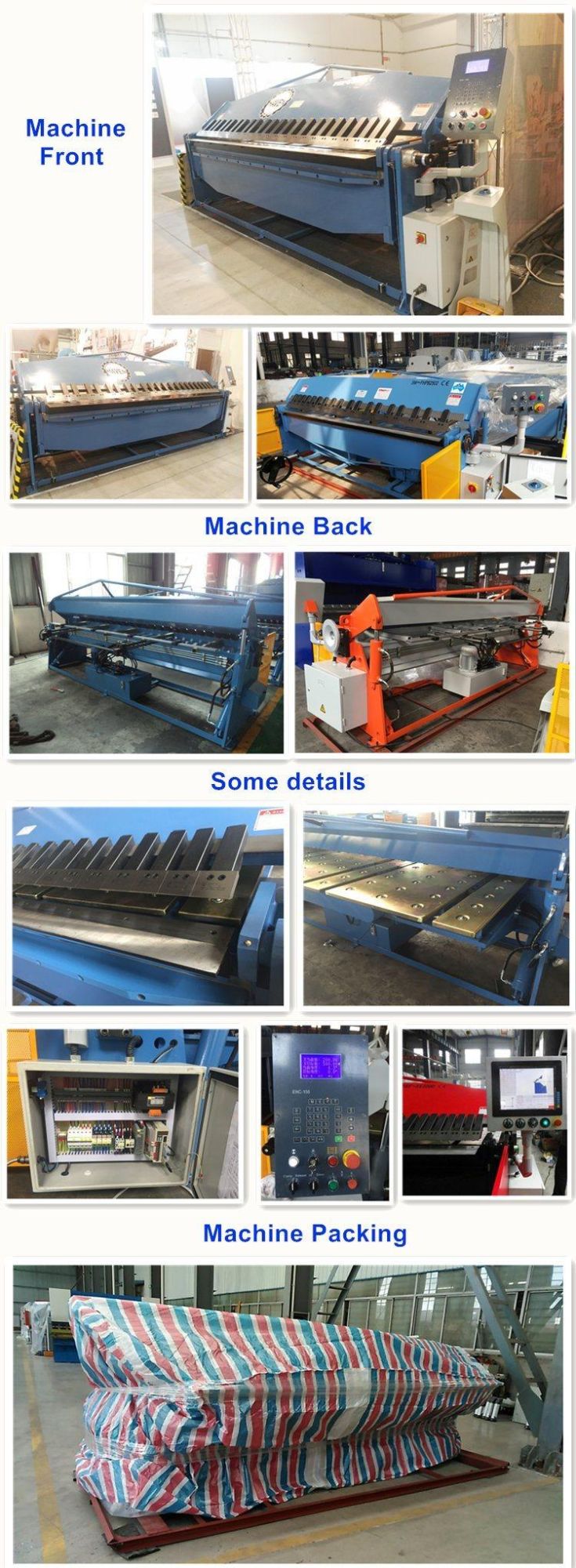

Machine details:

Main functions:
Full welded-steel plate construction. Stress relived to ensure continued high accuracy;
Machine is hydraulically powered;
Low energy consumption, easy to maintain and very durable;
Under acting die is fully adjustable with open height up to 110mm and suitable for producing disk, box like wokrpiece;

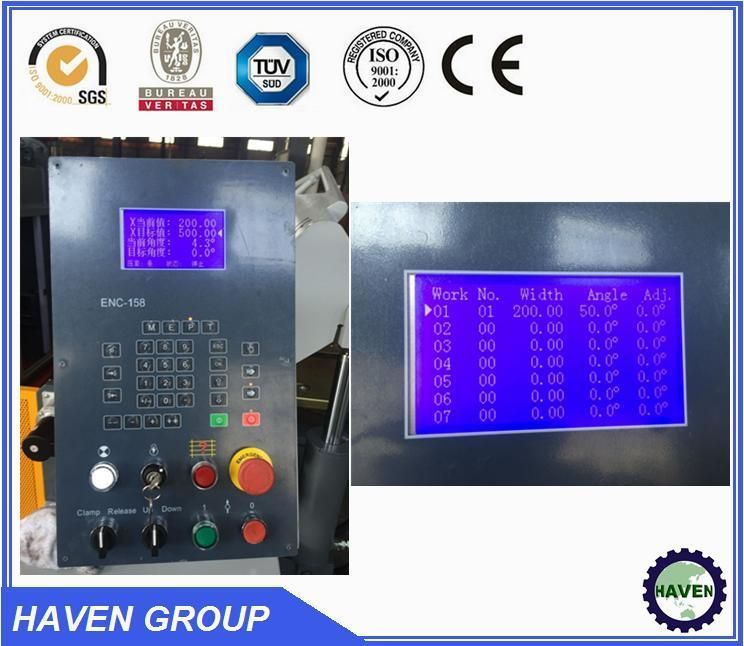

The bending angle and back gauge is controlled by numerical control system, rapidly and accurately

Main specification:

Model	W62Y-3x2500	W62Y-4.5x2500	W62Y-4x3100	W62Y-5x2000
Nominal pressure KN	1000	1000	1000	1000
Strokes   Min-1	14	14	14	14
Throat depth mm	200	200	200	200
Folding length mm	2500	2500	3100	2000
Folding thickness mm	0.5-3	4.5	4	0.5-5
Max angle of bending beam	110	110	110	0-125
Max lifting height of the upper beam	200	200	200	200
Motor power	5.5	5.5	5.5	5.5
Net weight kg	3500	3600	4300	2850
Dimension cm	330x100x140	360x106x200	420x106x200	310x106x200
