AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine

Wenzhou Co-Pack Machine Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New

Base Info

  • Model NO.：AYO SKO HYO
  • Control：Semi-Automatic
  • Application：Metal
  • Power Source：Pneumatic , NC , Hydraulic
  • Layout：Portable
  • Transport Package：Wooden Case , Metal Box (Optional)
  • Trademark：Co-Pack
  • Origin：Wenzhou, China
  • HS Code：8461909000
  • Production Capacity：100 Sets,Year

Description

ModelClamping RangeWorking RangeTool StrokeRotatingPneumaticNC/ElectricHydraulicOD mmmmmmrpmAYO-500SKO-500HYO-500Ф150-500Ф100-500≤11034AYO-1000SKO-1000HYO-1000Ф500-1000Ф200-1000≤11024AYO-1500SKO-1500HYO-1500Ф1000-1500Ф500-1500≤11023 AYO-2500SKO-2500HYO-2500Ф1500-2500Ф1000-2500≤11023AYO-3000SKO-3000HYO-3000Ф2000-3000Ф1000-3000≤11023Above parameters just for reference only, not acceptance criteria.

Power Supplies
Pneumatic
Air requirement: 1500-3000L/min @0.63-0.8Mpa
Power: 2HP, 3HP, 4HP
Double motor for big model or heavy duty
AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine

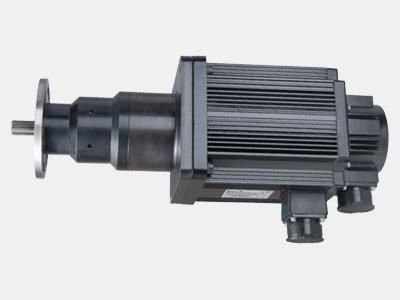

NC
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power: 2.0KW or 3.0KW
Double motor for big model or heavy duty
AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine
Hydraulic
Hydraulic requirement: 28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated pressure: 13MPa
Rated flow: 28L/min
Max. Torque: 380NM
AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine

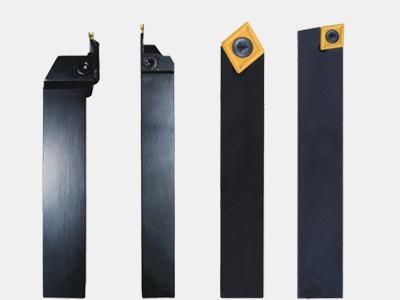

Insert Style
Material: Holder HSS
Insert: HSS-Co or Carbide
Type: Grooving, Facing
AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine
