PLC/Ipc Control CNC Mandrel Pipe Bending Machine Pipe Bender CNC Tube Bending Machine Copper, Brass, Stainless Steel, Aluminum, Carbon Steel (GM-SB-38CNC-2A-1S)
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- After-sales Service：Video Online Aftersales Service
- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：GM-SB-38CNC-2A-1S
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Pipe and Tube Bending Machine
- Certificate：ISO 9001:2008
- Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
- Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
- Technical：Draw Bending,Drawing Bending+Booster,Rolling
- Optional Function：Manual Feeding or Manual Rotating
- Transport Package：Iron Frame,Wooden Case
- Specification：CE
- Trademark：GMACC
- Origin：China
- HS Code：8462219000
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-38CNC-2A-1S Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Pipe and Tube Bending Machine Certificate ISO 9001:2008 Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Technical Draw Bending/Drawing Bending+Booster/Rolling Optional Function Manual Feeding or Manual Rotating Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description
GM-SB-38CNC-2A-1S Full-Auto Numerical ControlSingle-Head Bending Machine
Model:SB38×2A×1S

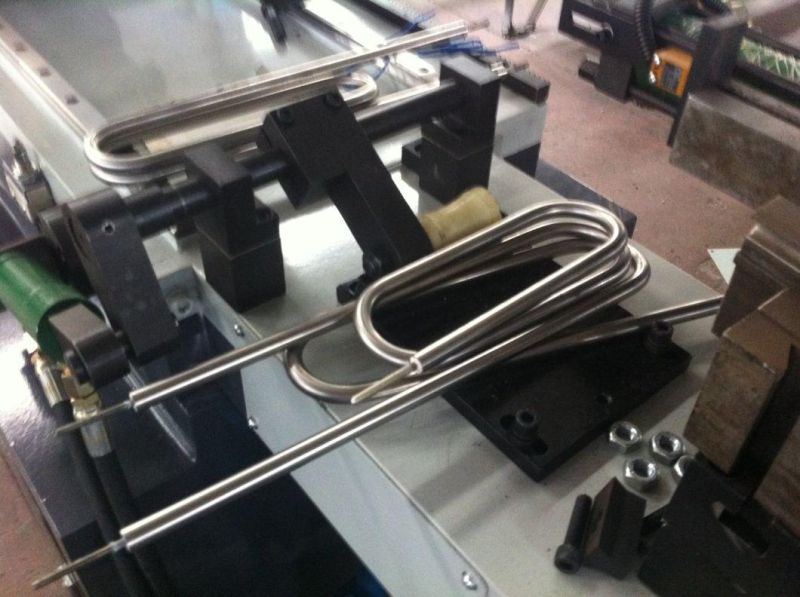

Machine Characteristics

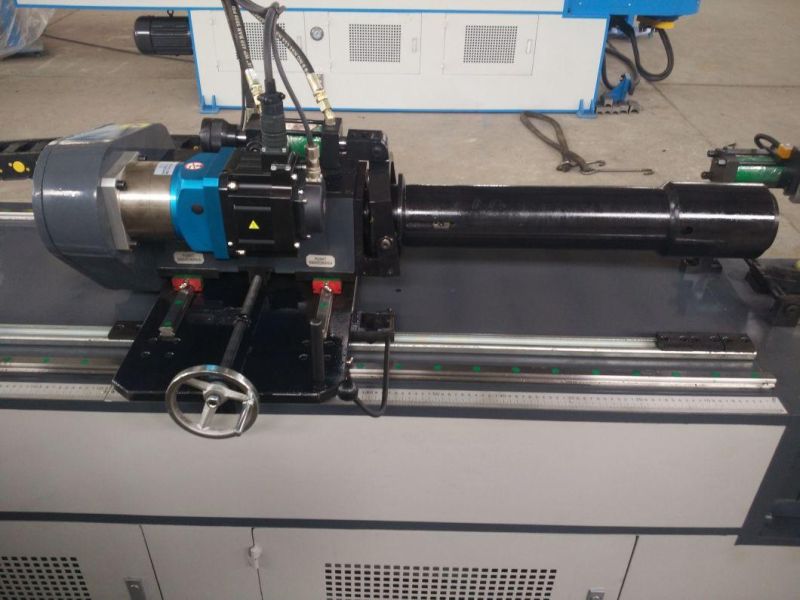

GM-SB-38CNC-2A-1S Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic by cylinder.
Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ¢38*2 |
| Bending Radius Range | mm | 20-200 |
| Max. Bending Angle | ° | 190° |
| Bending Speed | °/sec | 60 |
| Turning Speed | °/sec | 200 |
| Feeding Speed | mm/sec | 1000 |
| Bending Precision | ° | ±0.10 |
| Turning Precision | ° | ±0.10 |
| Feeding Precision | mm | ±0.10 |
| Turning Servomotor Power | kW | 0.4 |
| Feeding Servomotor Power | kW | 1 |
| Though Effective Distance | mm | 3200 |
| System Motor Power | kW | 4 |
| Max. Pressure | Mpa | 16 |
| Oil Pump Delivery Volume | L | 14 |
| L*W*H (Packaging Dimension) | mm | 3500*700*1300 |
| Weight | T | 2.0 |
| Name | Manufacturer |
| Hydraulic Motor | Siemens Beide or Suzhou Runmali |
| Hydraulic Pump | Wuxi Tuoli |
| Hydraulic Valve | Yuci Yuken |
| Oil way Board | Suzhou Boguan |
| Cylinder | Shanghai Qifan |
| Oil tube | Suzhou Kejia |
| Touch screen | Taiwan Weinview(Imported) |
| PLC | Japan Mitsubishi(Imported) |
| Servo Motor | Japan Mitsubishi(Imported) |
| Angle controller | Japan Nemicon(Imported) |
| Switch power | Wenzhou Changxing |
| Contactor | German SCHNEIDER(Imported) |
| Other Electric Parts | German SCHNEIDER,Omron, Taiwan SHILIN(Imported) |
