Automatic Steel Rule Bender Bending Machine for Die Cutting
Yitai Packing-Materi Accessories (Kunshan) Co., Ltd.- Waterproof Rating：IPX-2
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：TPB-300A
- Type：Cnc Bending Machine
- Name：Automatic Steel Rule Bender Bending Machine for Di
- Color：White, Grey, Blue or Customized
- Weight：620kg
- Special Function：Special for Label Rule
- The Max Bending Angle：90 Degree
- The Precision After Bending：+-0.05mm
- The Planeness：0.25mm
- Key Word：Die Cutting Auto Bending Machine
- Transport Package：Wooden Box
- Specification：3125*1025*1470mm
- Trademark：YT
- Origin：China
- HS Code：8462219000
- Production Capacity：1000set,Year
Description
Functions
Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.
Features
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee
Applicable materials and industries

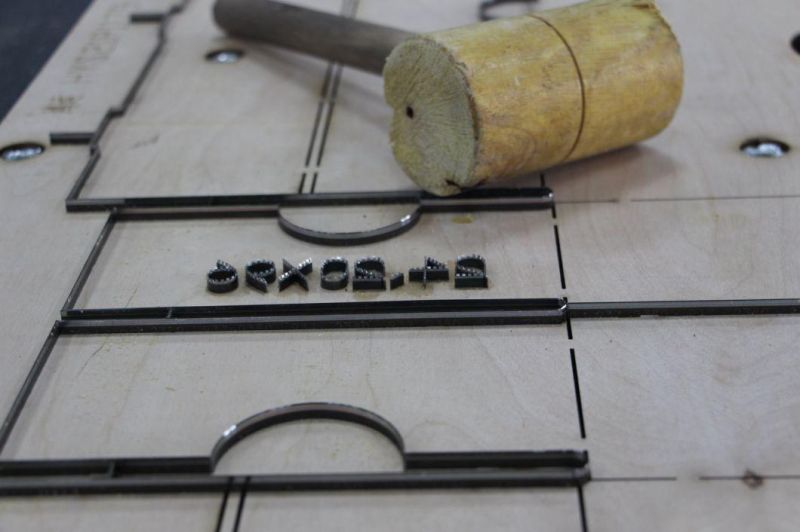

Widely used in blade bending, package box and so on
Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately
2.Cutting-----automatical cutting, easy to cut the steel rules
3.Bridging-----automatic bridging
4.Lipping-----automatic lipping
5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly
6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays
7.Software-----English interface is easy to learn and operate

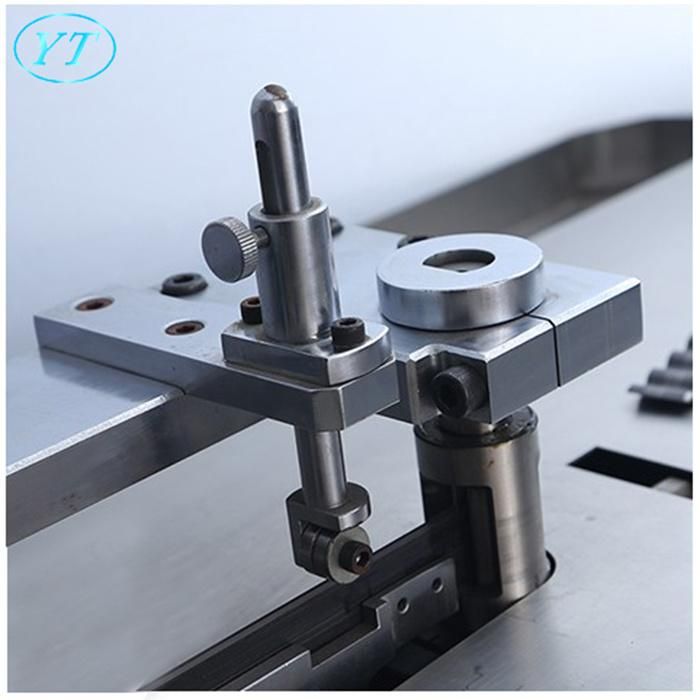

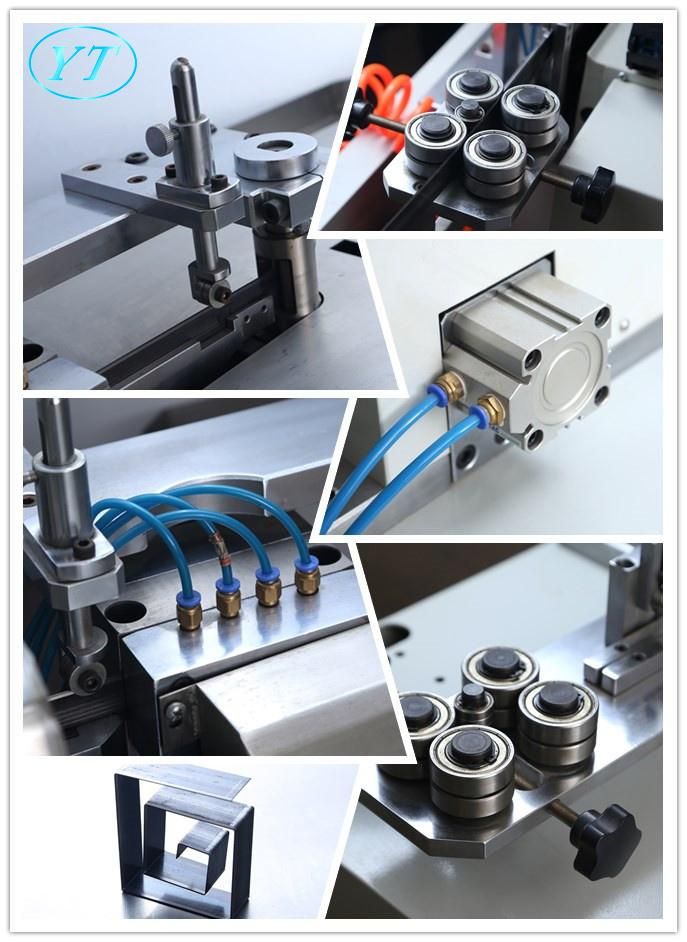

Machine Details
Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
Our Services
1.Our machine is guaranteed for one year, not including normal consuming parts.
3.User-friendly English manual and Video CD for machine using and maintaining.
4.Our self-developed English software can do all kinds of pattern recognition.
5.We supply 1 year warranty and LifeLong engineering service.
Why Choose Us
⊙ Our Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want, But Others Don't have those functions, The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge 15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife. However Other Company usually adopt Pneumatic control, there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ Can Make Bridge Hole continusly,Continuous Working, No Phenomenon Of Round-trip back to Make bridge.
⊙ Has The Integrated Working(Selsct All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Line).
⊙ Has The Automatic alarm and Self Protect Function. When false operation and machine breakdown, The Machine Will Stop and Show the Erro Code, You Can Check it easily.
⊙ The shimpo reducer is original imported from japan, while others are made in china only.
Please Let Us Know
1.What machine do you need?
2.What materials will be processed?The size and thickness?
3.What is your business scope?Are you end user or distributor?
Any more product information, please contact us!
