W Heavy Duty Pipe Cutting and Beveling Machine
Watt Machinery Technology Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Certification：CE
- Condition：New
- Control：Semi-Automatic
- Application：Metal
Base Info
- Model NO.：W
- Power Source：Optional,Electric,Pneumatic,Hydraulic
- Layout：Vertical
- Transport Package：Wooden Case
- Trademark：watt
- Origin：China
- HS Code：846190900
- Production Capacity：500
Description
Model
Working range
Wall thickness(mm)
Rotating speed
(rpm)
OD(mm)
OD (inch)
Single operation
Multi operation
W24
Ф305-610
12"~24"
≤25
≤110
14
W36
Ф610~914
24"~36"
≤25
≤110
11
W48
Ф914~1220
36"~48"
≤25
≤110
9
W60
Ф1220~1524
48"~60"
≤25
≤110
5
W72
Ф1524~1829
60"~72"
≤25
≤110
4
W84
Ф1829~2134
72"~84"
≤25
≤110
4
W96
Ф2134~2438
84"~96"
≤25
≤110
3
POWER SUPPLIES

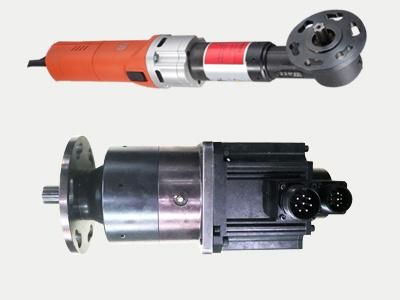

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-240V 1PH 50/60HZ
Carbon brush Motor:1.43KW,1.7KW,2.4KW
Brushless Motor: 1.5KW,2.0KW,3.0KW
Double motor for big model or heavy duty

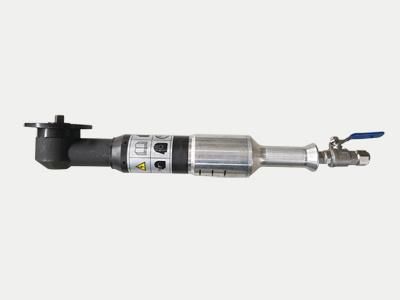

Pneumatic:
Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP,3HP,4HP
Double motor for big model or heavy duty

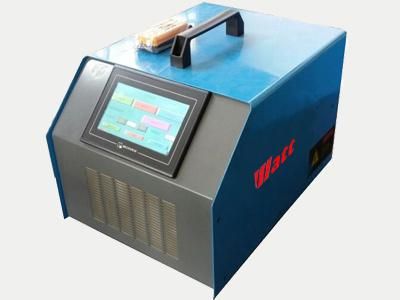

NC:
Powerful drive, High efficiency
Low noise ,Stable Performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power:2.0KW or 3.0KW
Double motor for big model or heavy duty

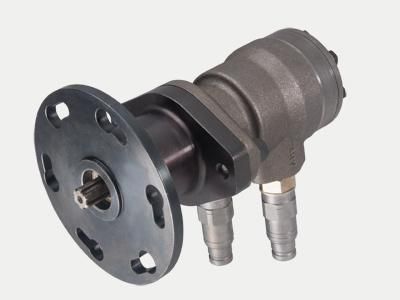

Hydraulic:
Powerful drive, High efficiency
Stable Performance, Low noise, Anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM

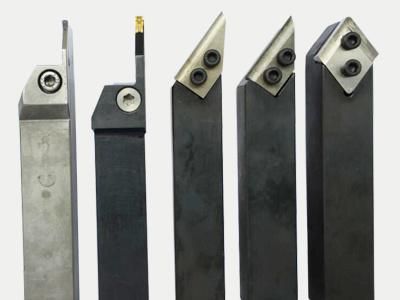

TOOLING
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand
Material:M42 and M35
Type:Sever,bevel,double bevel,
compound bevel,counterbore
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size:90mm,150mm,200mm
Insert style
Material:Holder HSS ;
Insert: HSS-Co or Carbide
Type:Sever,bevel,double bevel,compound bevel,
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size: 90mm,150mm,200mm

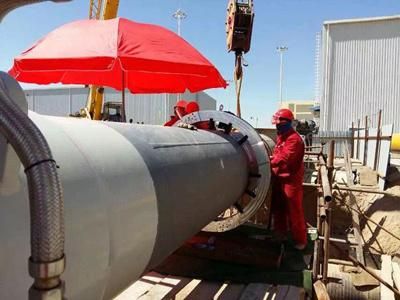

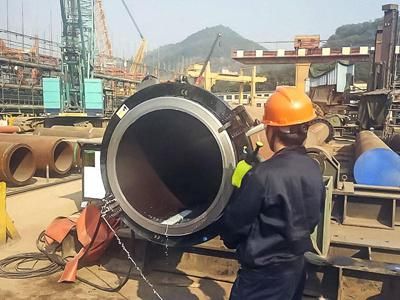

On-site processing
