CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • After-sales Service:Video Online Aftersales Service
  • Waterproof Rating:IPX-8
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Semi-Automatic

Base Info

  • Model NO.:GM-SB-89NCB
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Pipe and Tube Bending Machine
  • Certificate:ISO9001: 2000
  • Applicable Material:S. S, M. S., Copper, Aluminium, Alloy, Galvanized
  • Applicable Shape:Round, Rectangle, Square, Oval, Solid Bar, Profile
  • Bending Drive:Hydraulic
  • Technical:Cold Bend
  • Transport Package:Iron Frame,Wooden Case
  • Specification:CE
  • Trademark:GMACC
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:500 Sets,Year

Description

Basic Info.

Model NO. GM-SB-89NCB Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 500 Sets/Year

Product Description

The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe. Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.

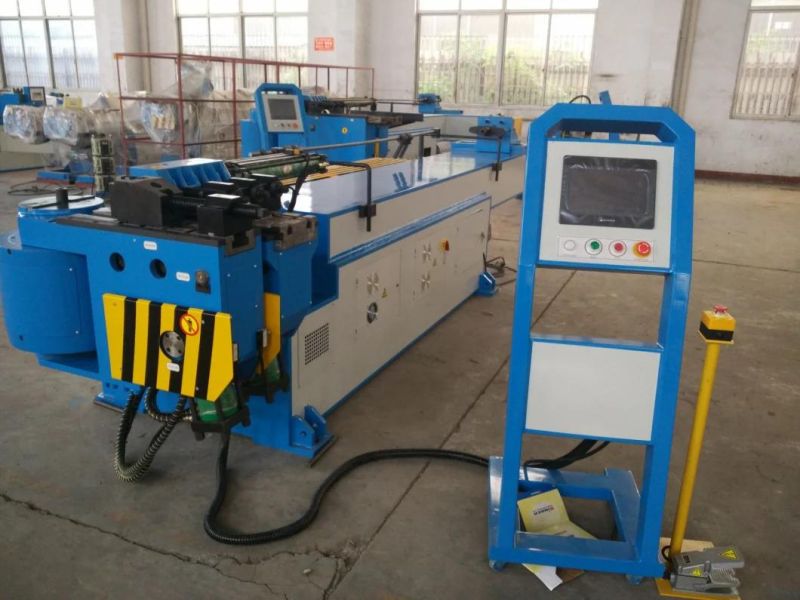

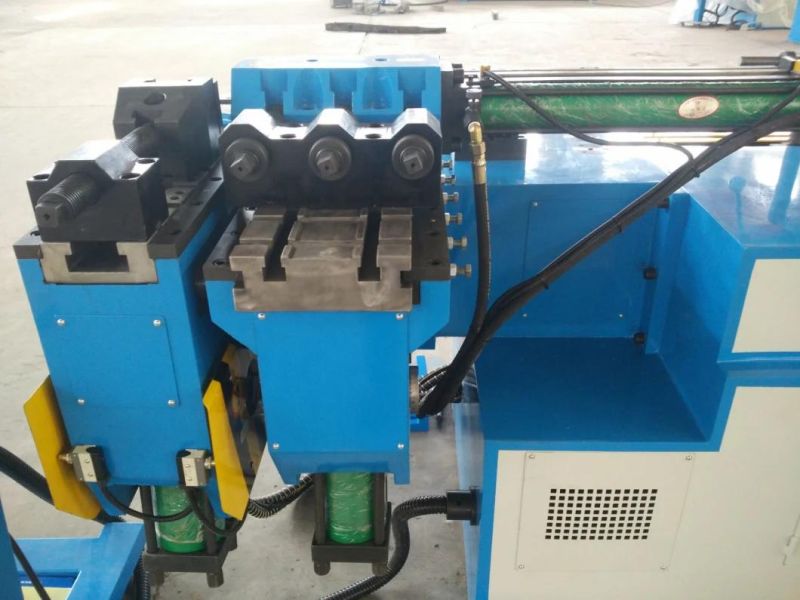

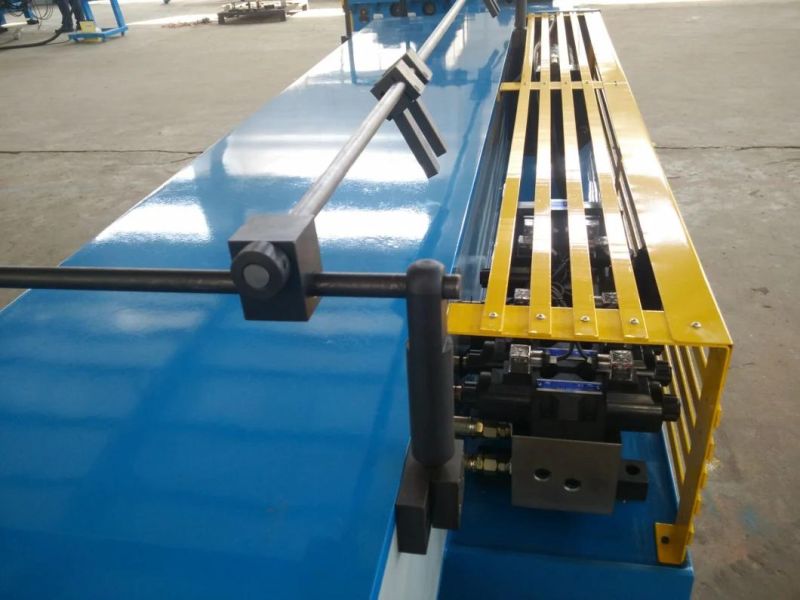

Full hydraulic drove, PLC controlled with touch screen pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Features:

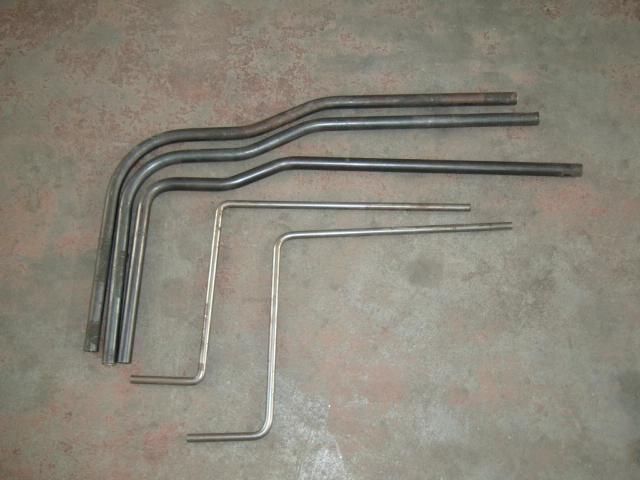

1. Applicable tube material: Carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.
2. Applicable tube shape: Tube, solid bar, square, rectangle, oval, profile etc
3. Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.
4. Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.
5. About 200 programs can be inputted into PLC, then show on dialogue-style operation touch screen, easy to learn and understand.

6. Various Touch screen language are available for choice as per request.
7. Adoption of hydraulic valve and oil way board can control actions individually to prolong the lifespan of hydraulic parts.
8. Guiding module has auxiliary pushing function and at the same time it possesses reiteration and entering repeat functions that can make the guiding module length shorten.
9. Counter function can accurately count work piece's quantity and save data whether on power-on or power-off situation.
10. Auto lubrication system to protect components and improve the working life of machine;

11. Possess automatic error detection function and limit protecting function, removing or changing faults easily and quickly.
12. Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.
13. Optional function of core reversing slowly.
14. Optional function of slow bending.
15. Optional function of anticipated mandrel extraction.
NameUnit  Parameter
Max. Bending Capacitymm89*12
Bending Radius Rangemm40-400
Max. Bending Angle°  190°
Though Effective Distancemm3200
Bending Speed° /sec25
Bending Precision°± 0.10
System Motor PowerKW11
Oil Pump Delivery VolumeL30
Max. PressureMpa16
L*W*H (Packaging Dimension)mm4500*1350*1200
Machine WeightT4.5

Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorSiemens or Suzhou Runmali
Hydraulic ValveJapan Yuken
Over Flow ValveJapan Yuken
EncoderJapan Nemicon
Hydraulic PumpWuxi Tuoli
Sealing ElementShanghai Qifan
ContactorSchneider
Over-Thermal RelaySchneider
Proximity SwitchOmron
Power SwitchTaiwan Mingwei
Tansformer Wuxi Xingyu
Oil TubeZhejiang Tongxin
Touch screenTaiwan Weinview
PLCJapan Mitsubishi
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine


CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
CNC Pipe Bending Machine Semi Automatic Pipe Tube Bending Machine
FAQ:

1. Q: Are you a manufacturer or trading company?
     A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.

2. Q:Where is the nearest airport to your company?
     A: Wuxi Airport or Shanghai Airport.

3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
         - Pipe Outdiameter Range
         - Wall thickness range
         - Bending Radius Value
         - The pipe material
         - Bends Number on one pipe
         - The drawings if possible

4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.

5. Q:How about your service?
    A: Before Sales Serive:
         1. We will help our customer confirm the right model according to the offered pipe inforamtion.
         2. Welcome to visit our factory to see our machine and our workshop before you place an order.

         After Sales Service:
         1. We provide manual book,detailed machine installation,commissioning video for help you correctly
         operate machine.
         2. We provide free installation,commissioning and training at our factory.If you need engineer go to
             your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
             account.
         3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
