Pneumtaic Pipe Beveling Machine / Tube Beveler (TCM-150-1500) Light Duty
Aotai Machine Manufacturing Co., Ltd.- Automation：Semi-Automatic
- for Welding：Cutting
- Type：Blade Cold Cut
- Application：Beverage, Textiles, Food, Medical, Chemical, Machinery & Hardware, Apparel
- Type for Cutting Machine：Blade
- Transport Package：Wooden Case
Base Info
- Model NO.：TCM-150-1500
- Specification：CE SGS
- Trademark：AOTAI
- Origin：Wenzhou, China
- HS Code：8461
- Production Capacity：5, 000 Pcs,Year
Description
Basic Info.
Model NO. TCM-150-1500 Specification CE SGS Trademark AOTAI Origin Wenzhou, China HS Code 8461 Production Capacity 5, 000 Pcs/YearProduct Description

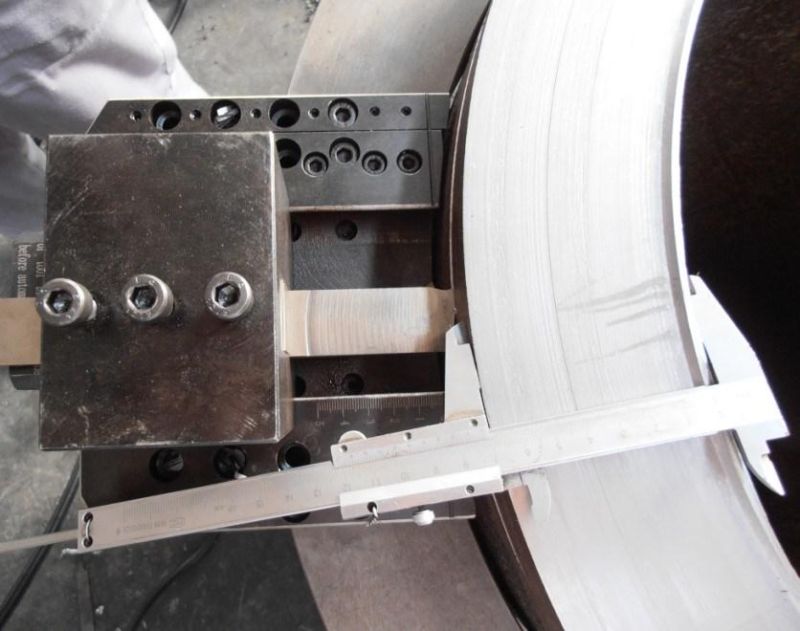

Pipe beveler / facer / pipe beveling machineMain characteristic:
Y-Pneumatic pipe bevelling machine adopts the pneumatical motor to drive, there is 0.6mPa source of the gas can work; Enter to the folk art term of the speed and regulate, this lathe is given that one is entered fast, two shelves of amount of feed finelied tune. Rise and make a reservation automatically closely fast, easy to install. Pipe beveling machine is safe and reliable to use.
Sloping / facing bound: Dia. 65-1500mm
Chamfer/ bevel thickness: 4-20 mm
Rotating rate: 4rpm-34rpm
| Pneumatic Model | Working range (I.D.mm) | Wall thickness (mm) | Rotating rate (rpm) |
| TCM-150 | Φ65-159mm | ≤ 15 | 34 |
| TCM-250 | Φ80-240mm | ≤ 15 | 16 |
| TCM-351 | Φ150-330mm | ≤ 15 | 14 |
| TCM-630 | Φ300-600mm | ≤ 15 | 10 |
| TCM-850 | Φ600-820mm | ≤ 15 | 8 |
| TCM-1050 | Φ820-1020mm | ≤ 15 | 7 |
| TCM-1300 | Φ1015-1255mm | ≤ 15 | 5 |
| TCM-1500 | Φ1270-1470mm | ≤ 15 | 4 |
