• Model NO.：63,2500
• Hydraulic Press Brake：CNC
• Transport Package：in Container
• Specification：63,2500
• Trademark：Muhong
• Origin：China
• Production Capacity：100 Units,Year

Basic Info.

Model NO. 63/2500 Hydraulic Press Brake CNC Transport Package in Container Specification 63/2500 Trademark Muhong Origin China Production Capacity 100 Units/Year

Product Description

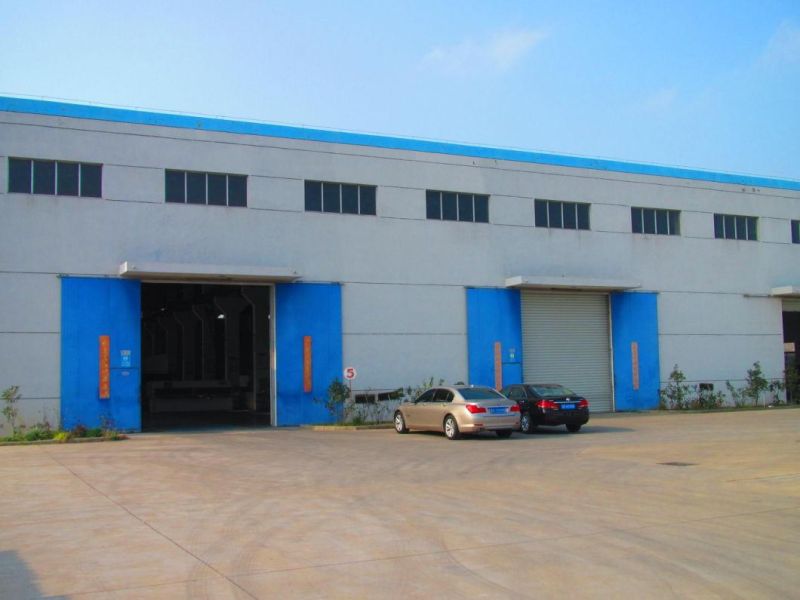

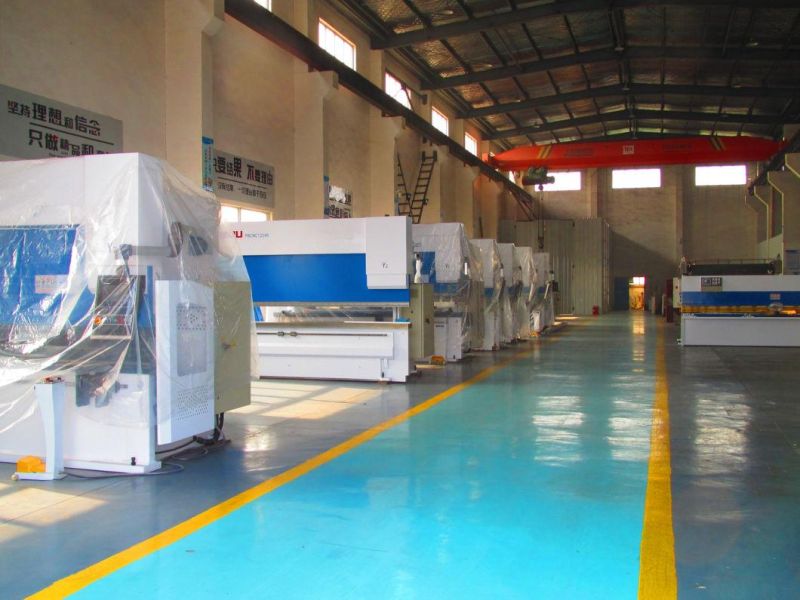

The Factory Pictures

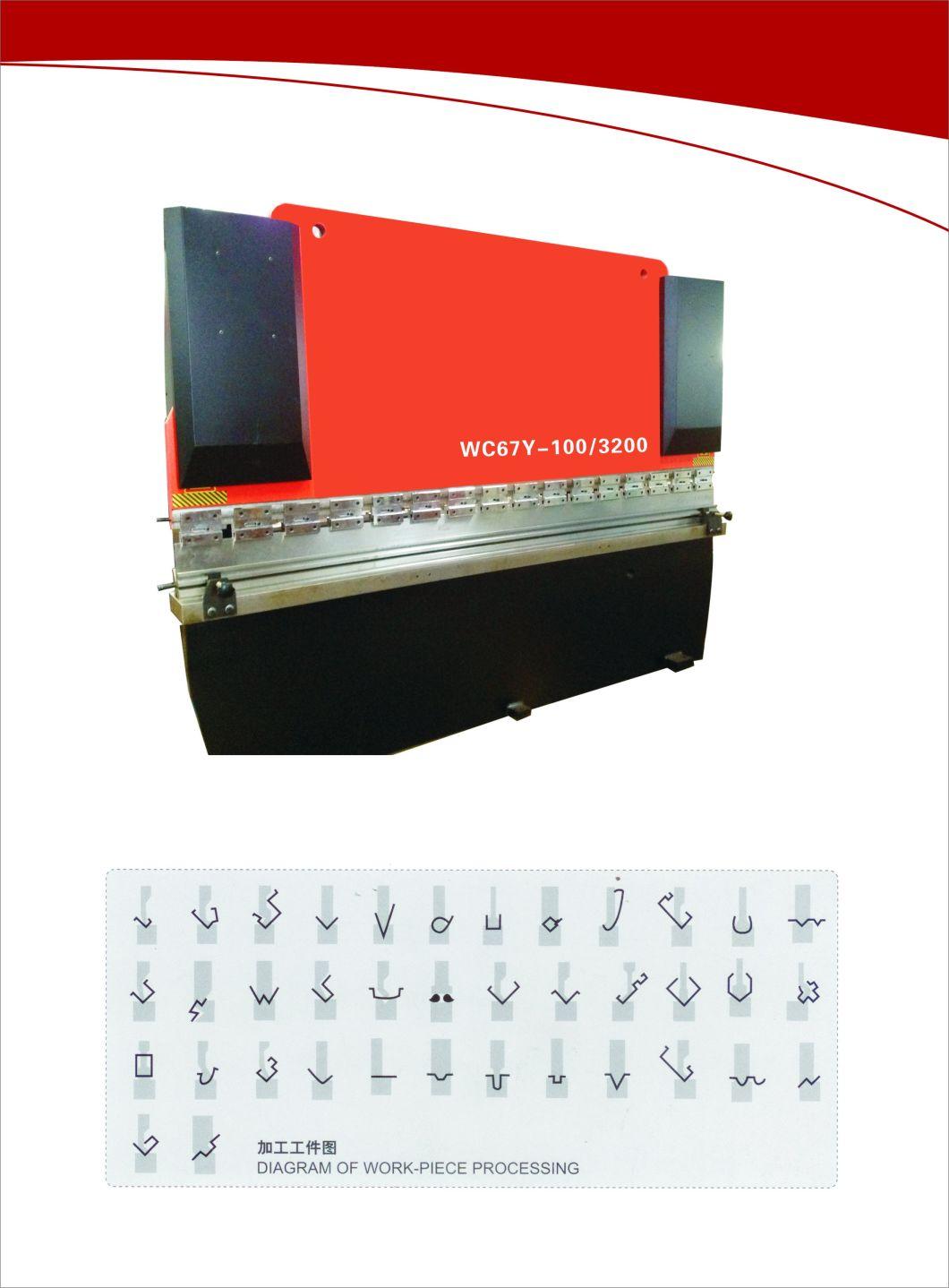

The Main Graph




The Mechnical Data

63/2500
Structure and performance features:
1. The main machine adopts the structure of hydraulic press brake.
2. CNC system for press brake adopt delem system.
3. The motors of backgauge and stroke-adjusting can be equipped with importing AC servo motor.
4. The screw of backgauge adopts importing ball screw with linear guideway.
5. User can choos other brandCNC system(option).

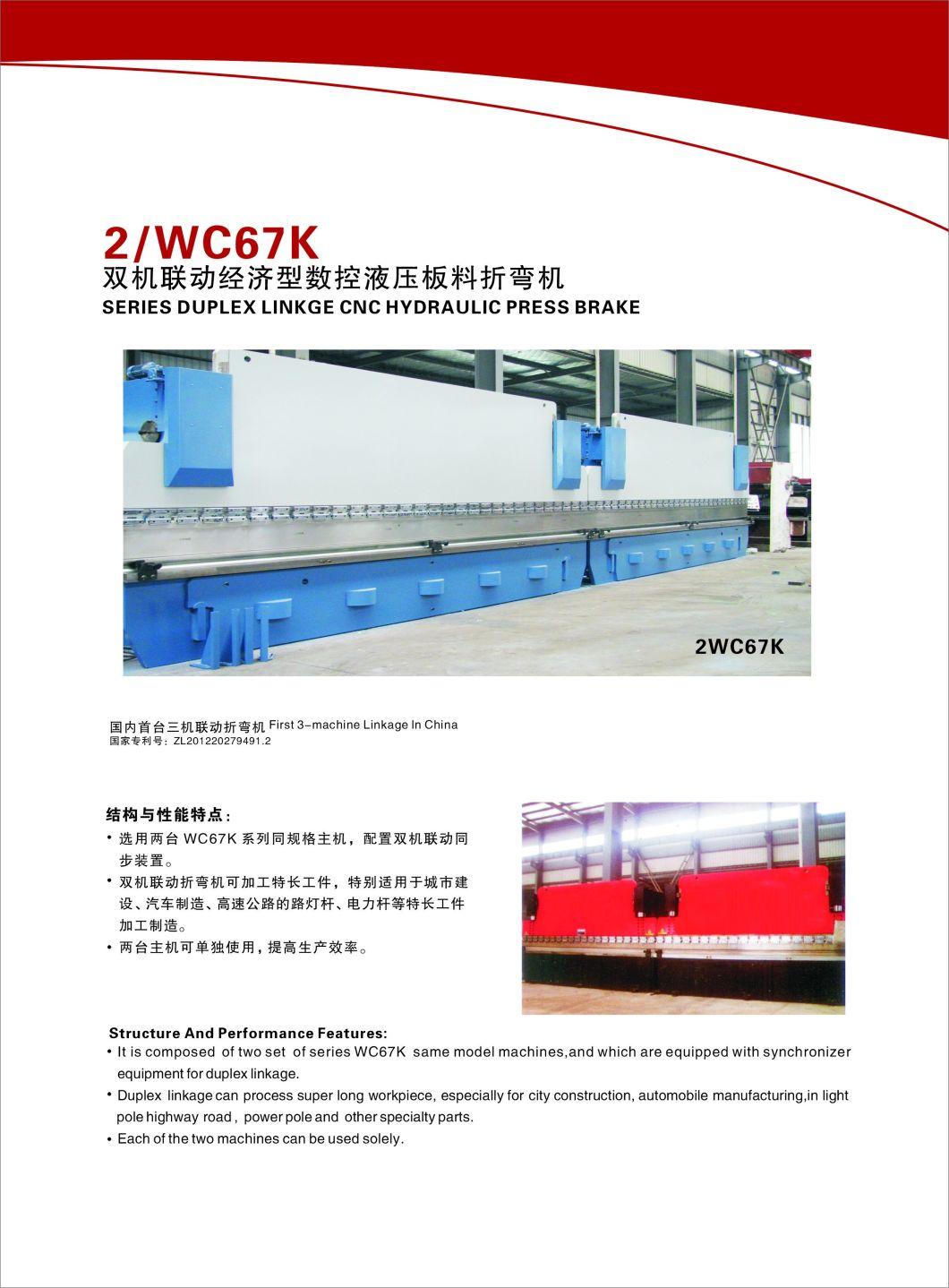

We could supply machines providing duplex linked or multiplex synchronous device.

It is especially work for city building, expressway lamp poles, automobile beams and so on;

The linked brake can be used alone, in order to raise production efficiency.

600/6000

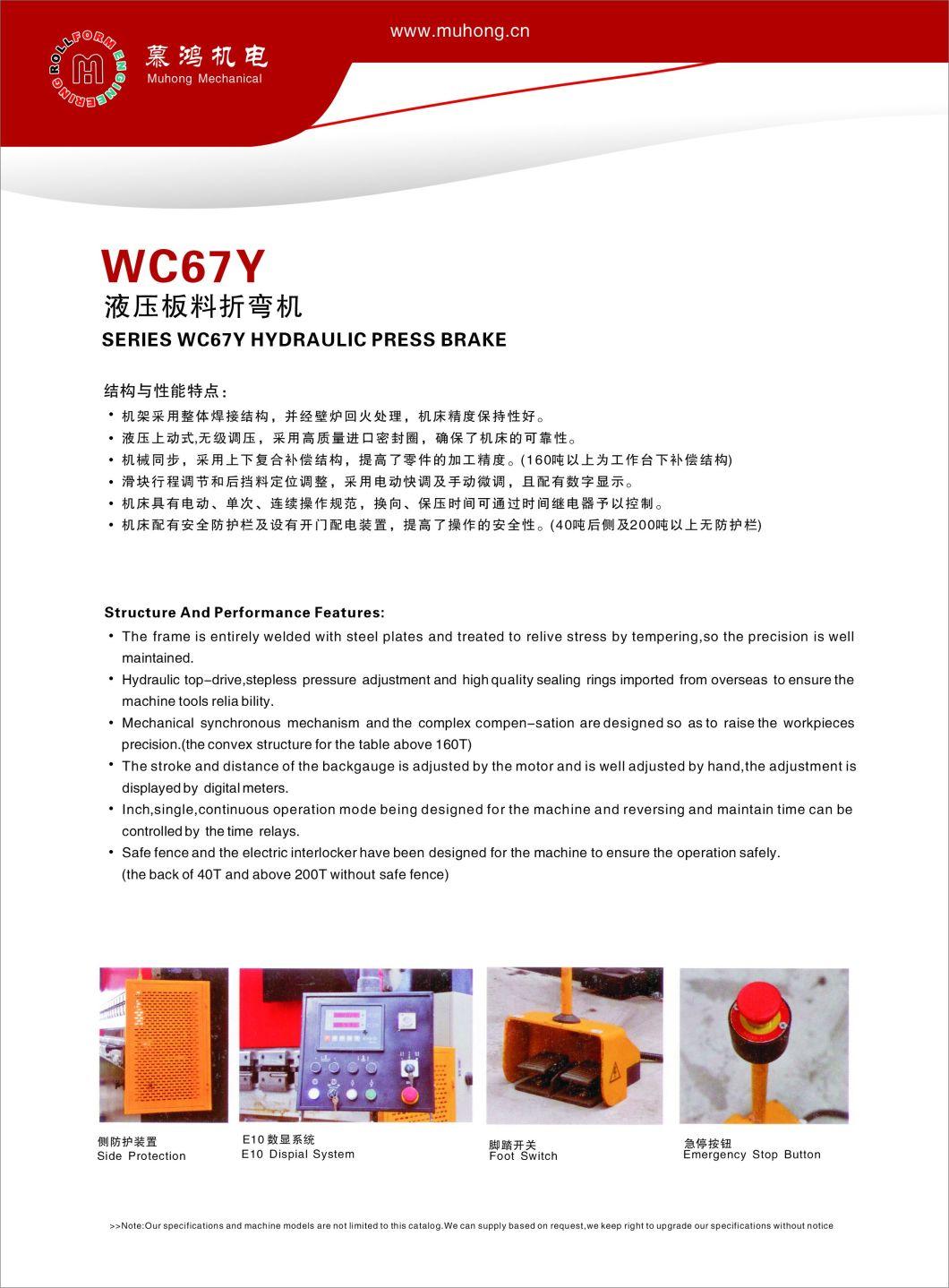

Structure and performance features:
1. The frame is entirely welded with steel plates and treated to relive stress by tempering, so the precision is well maintained.
2. Hydraylic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
3. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.(The convex structure for the table above 160T.)
4. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
5. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safely. (The back of 40T and above 200T without safe fence.)




The Sample
