• Model NO.：PBH-110,3100
• Type：Press Brake
• Transport Package：Container
• Specification：3700*1650*2650mm
• Trademark：SLJS
• Origin：Shanghai
• HS Code：8462219000
• Production Capacity：2000 Pieces,Year

Name

PBH-110/3100-4C

Unit

1

Normal pressure

1100

kN

2

Length of worktable

3100

mm

4

Distance between uprights

2600

mm

5

Ram stroke

215

mm

6

Die setting height

520

mm

7

Throat depth

410

mm

8

CNC axis

4+1(Y1,Y2,X,R,S)

9

Ram speed

Approach

200

mm/s

Working

14

mm/s

Return

160

mm/s

10

Back gauge

X axis

Stroke

500

sheet metal size

0-950

mm

Max.speed

400

mm/s

11

Overall dimension

L

3610

mm

W

1550

mm

H

2530

mm

12

Power supply

11

kW

13

Weight

9100

kg

     Note:

Y1,Y2----Control ram movement

X----Control back gauge front and rear movement

R----Control back gauge up and down movement

S----Control compensation crowning system

Machine structure

       Structural feature of machine

1,Outline feature

1.1 Totally European new design, streamlined looking

1.2 High class European safety standard

2,Frame

2.1 Complete steel plate welded structure, good anti-vibration.

2.2 Taking off inner-stress by tempering, good stability

2.3 Machine body is machined with once clamping for all machining surface from Spain five faces machining center, which assure parallelism and verticality between/among surface of the machine body.

2.4 Remove rust with sand-blast and coated with anti-rust paint

2.5 Finish of Nippon Polyurethane paint



3,Ram strecture

Upper stroke design for bending, low noise, stable operating situation

3.1 Y1,Y2 can be programmed separately, can work under non-balance load, can bend cone-shape work piece.

3.2 At bottom dead center a pressure-keeping time is offered, and can be programmed to assure precision of all kinds of work piece

3.3Able to move the ram up slowly, which allow the operator to control work piece conveniently

4,Hydraulic system

4.1 Close loop electro-hydraulic synchronized servo-control system, the most advanced

4.2 Hydraulic system is from HOERBIGER, Germany.

4.3 Imported GIVI linear optical reader,guiding system,positioning system and hydraulic balancing system with high precision, which all can permit the processing work piece of full length or with eccentric.

4.4 Outfit with "C" is at throat, as deformation compensation on throat, directly measuring the distance between upper tool and low die, assuring the precision of work piece.

4.5 Special treatment about the cylinder--rough treatment--hardening--inner grinding--inner Float boring, make the inner side of the cylinder with high precision and wear resistant

4.6 Pipe fitting and seals of hydraulic system is imported from foreign country, good quality and high performance

4.7 Hydraulic connector are imported from foreigh country,with good quality

4.8 Overload overflow protection is outfitted to hydraulic system, which can assure no leakage.

4.9 Oil level can be read or seen directly

4.10 Being able to work continuously under rated load and hydraulic system shall have no any leakage, stable working, high precision positioning

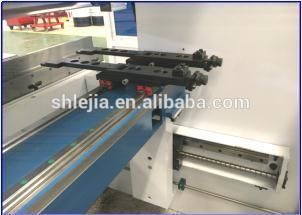

5,Back gauge

5.1 Good for work piece needing multiple steps of bending with high precision requirement

5.2 The speed of backgauge is fastest,and the precision is best in the domestic market

5.3 X axis of back gauge is moved with ball screw, guided by linear guide, and driven by digital AC servo-motor. Back gauge is driven by digital AC servo motor

5.4 Back gauge beam is tank structure,with good enough mechanical strength and rigidity

5.5 Particular finger-stop design, enlarge the range of back gauge.

6,Electrical system

6.1 Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability

6.2 Equip with movable food panel,convenient operating,emergency stop

7,Crowning Compensation

7.1Low worktable has an automatic crowning compensation unit, compensation amount is automatically set up by CNC system, with guarantee a same bending angle on full length.The special desgin of worktable to effectively reduce the bending deflection of die.

8. CNC control system is DA52S, DELEM of the Netherlands.

9. Standard Press brake Quick Punch clamp , upper tool &  2V Die with the machine :

List of main commercial components

7

Linear guide

HIWIN/TBI, Taiwan

Ball screw

8

Seals of oil cylinder

SKF, Swiss

9

Proximity switch

CONTRINEX,Swiss

10

Single/double air switch

SIEMENS,Germany

11

AC contactor

12

Button

SCHNEIDER,France

13

Terminal

WAGO,Germany

14

Pendent arm

ESTUN(joint venture )

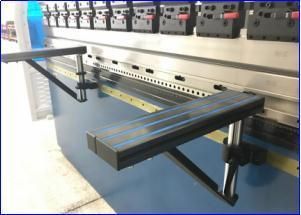

Optional parts:

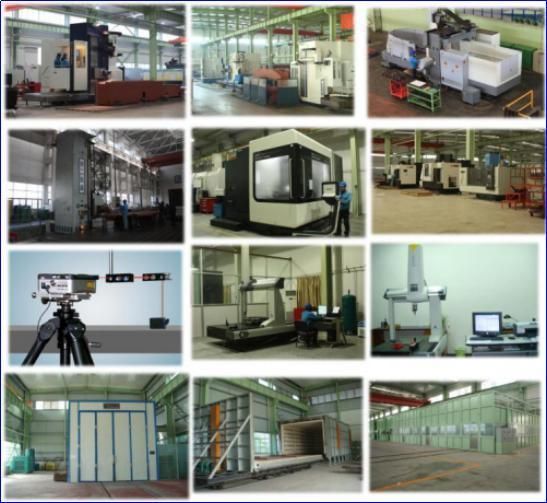

Processing Equipment:

We has mainly advanced equipment and measuring device by about 300 sets, which meet the technical process requirement and ensure produce quality.
