• Model NO.：QC11Y-6x3200
• Movement Method：Contour Control
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01mm
• Performance Classification：High-End CNC Machine Tools
• Transport Package：Wooden Case
• Specification：QC11Y-6x3200
• Trademark：AccurL
• Origin：China Ma′anshan
• HS Code：84623990
• Production Capacity：100

Basic Info.

Model NO. QC11Y-6x3200 Movement Method Contour Control Control Method Closed-Loop Control Numerical Control CNC/Mnc Processing Precision 0.01mm Performance Classification High-End CNC Machine Tools Transport Package Wooden Case Specification QC11Y-6x3200 Trademark AccurL Origin China Ma′anshan HS Code 84623990 Production Capacity 100

Product Description

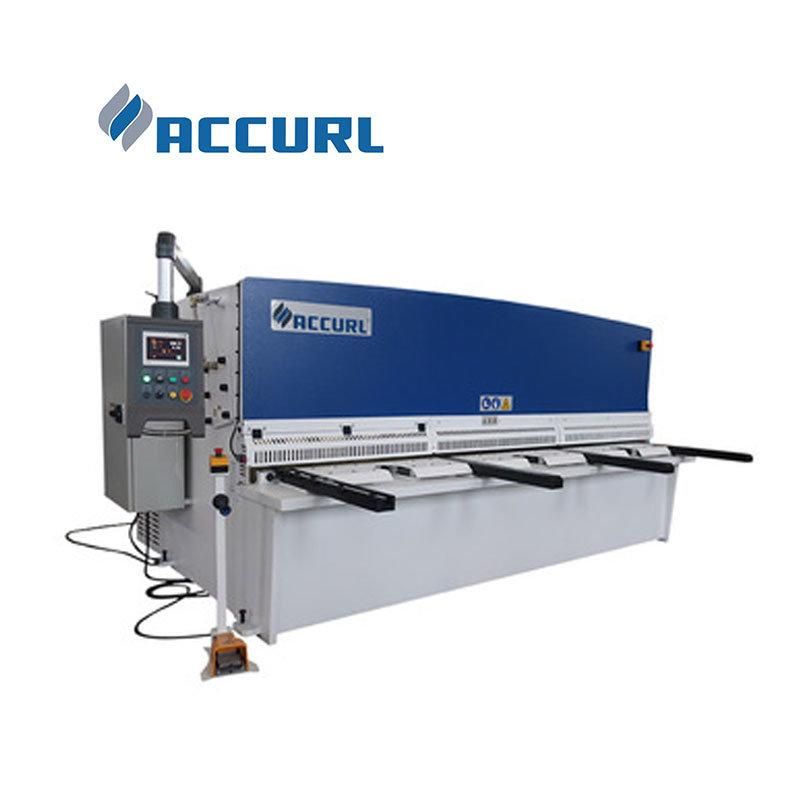

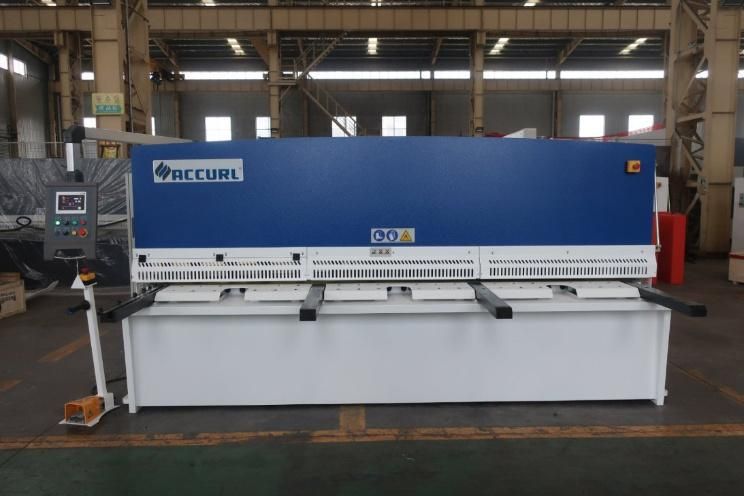

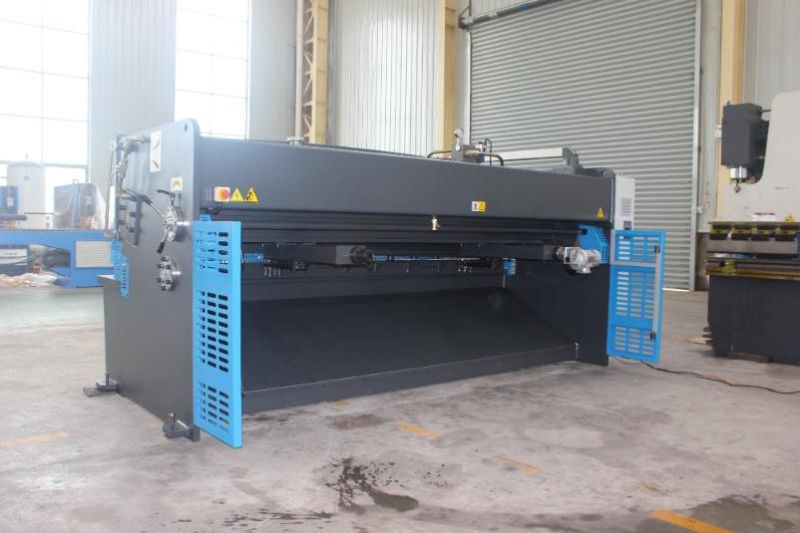

Accurl Hydraulic CNC Metal Cutting Machine

Heavey Duty Contruction with Variable Rake Feature Covers All Work Shop and Production Applications.

Steel master QC12Y Series Hydraulic Guillotine Shears are designed and constructed to provide execllent shearing of material with clean, square edges, and to exacting tolerance.

QC11K Series Hydraulic Shears are equipped with the productive features abd safety devices for optimum, accurate cutting performance found usually only on more expensive units. Feature for feature, they are a smart, economical choice for cutting plate.

Three pairs of rollers ensure optimum guiding of the cutting beam. All of these features combined with variable rake angle minimise any deformation of materials even with thin strip cutting.



Standard Features

Motorised back gauge with 1000mm range and SICK DRO (digital readout)

Quick action variable rake along with blade gap setting.

Stroke counter, single stroke and continuous cutting modes

Heavy duty 'Ball Transfers' fitted as standard.

Heavy duty squaring arm with stainless steel scales.

Rear safety fencing with 'Safety cut-off' gaurds

Open side throat for long length slitting

Sturdy remote operation foot-pedal with 'emergency stop' fitted




3. Components
(1) The main sealing components of the cylinder are imported products.
(2) Main electric components: From French schneider.
(3) Hydraulic valves are from Shanghai hydraulic parts No. 1 plant
(4) Oil pumps are from Shangshi hydraulic parts No. 3 plant.
(5) Blades are from Shanghai blades plant





Model	Mild Steel (450Mpa)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L×W×H(mm)	Weight(t)
4×2000	4	2000	80	600	0.5°-2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2500	80	600	0.5°-2°	14	5.5	3100×1750×1765	4.5
6×2500	6	2500	80	750	0.5°-1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	750	0.5°-1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	750	0.5°-1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	750	0.5°-1°30′	8	7.5	5650×2185×2380	10.5
6×6000	6	6000	80	750	0.5°-1°30′	8	7.5	6650×2260×2380	15.2
8×2500	8	6000	80	750	0.5°-1°30′	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	750	0.5°-1°30′	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	750	0.5°-1°30′	10	7.5	4650×2030×2075	9
8×5000	8	5000	80	750	0.5°-2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	750	0.5°-2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	750	0.5°-2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	750	0.5°-2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	750	0.5°-2°30′	6	15	4695×1970×2270	9.15
10×5000	10	5000	100	750	0.5°-2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	750	0.5°-2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	750	0.5°-2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	750	0.5°-2°30′	8	15	3895×2050×2240	9.2
12×4000	12	4000	100	750	0.5°-2°30′	5	15	4710×2110×2450	13
12×5000	12	5000	100	750	0.5°-2°30′	5	30	5750×2115×2800	20
12×6000	12	6000	100	750	0.5°-2°30′	5	30	7150×2300×3100	29
16×2500	16	2500	100	750	0.5°-2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	750	0.5°-2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	750	0.5°-2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	750	0.5°-3°	5	30	6000×2300×3000	23
16×6000	16	6000	80	750	0.5°-3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	750	0.5°-3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	750	0.5°-3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	750	0.5°-3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	750	0.5°-3°	4	37	6000×2300×3050	29
25×2500	25	2500	120	750	0.5°-3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	750	0.5°-3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	750	0.5°-3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	750	0.5°-3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	750	1°-3.5°	3	37	4200×2300×3200	23
40×2500	40	2500	80	750	1°-4°	4	37×2	3770×2550×3400	29
