KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine

Dongguan Kaichuang Precision Machinery Co., Ltd.
  • After-sales Service:yes
  • Waterproof Rating:IPX-0
  • Warranty:1-year
  • Condition:New
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation:Automatic

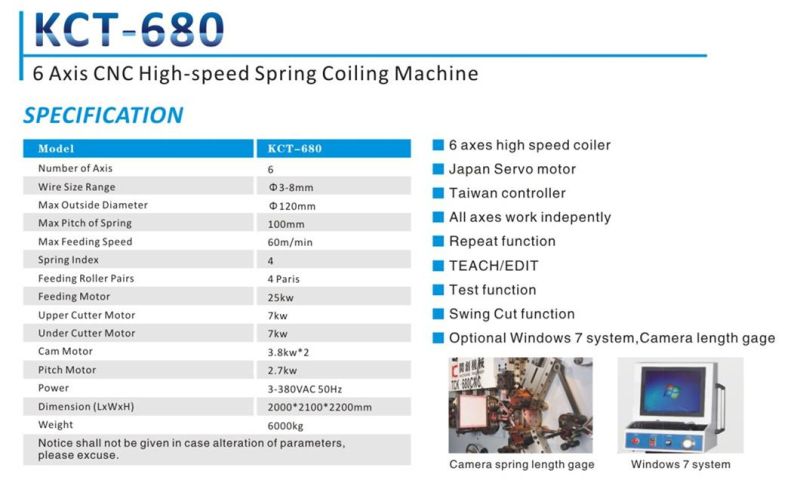

Base Info

  • Model NO.:KCMCO-KCT-680
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:CNC Spring Machine
  • Axes Count:6
  • Wire Size Range:3.0~8.0mm
  • Max outside Diameter:120mm
  • Max Pitch of Spring:100mm
  • Max Feeding Speed:1~60PCS,Min
  • Feeding Axes Count:4 Pairs
  • Feeding Motor:15KW
  • Dimension(L*W*H):2000*2100*2200mm
  • Weight:6000kg
  • Power AC:3~380V50Hz
  • Spring Index:4
  • Upper cutter motor:7kw
  • Under cutter motor:7kw
  • Cam motor:2.7KW*2
  • Pitch motor:2.7kw
  • Transport Package:Vacuum Packed&Standard Fumigated Wooden Case
  • Specification:CE, ISO 9001: 2008, SGS
  • Trademark:KCMCO
  • Origin:China
  • HS Code:84633000
  • Production Capacity:100 Sets,Year

Description

Basic Info.

Model NO. KCMCO-KCT-680 Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type CNC Spring Machine Axes Count 6 Wire Size Range 3.0~8.0mm Max outside Diameter 120mm Max Pitch of Spring 100mm Max Feeding Speed 1~60PCS/Min Feeding Axes Count 4 Pairs Feeding Motor 15KW Dimension(L*W*H) 2000*2100*2200mm Weight 6000kg Power AC 3~380V50Hz Spring Index 4 Upper cutter motor 7kw Under cutter motor 7kw Cam motor 2.7KW*2 Pitch motor 2.7kw Transport Package Vacuum Packed&Standard Fumigated Wooden Case Specification CE, ISO 9001: 2008, SGS Trademark KCMCO Origin China HS Code 84633000 Production Capacity 100 Sets/Year

Product Description


KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine


KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine


Product Description



1. 680 6-axis CNC High-speed Spring Coiling Machine is composed by 6 Japan Yaskawa motor and TaiWan control system, each axis can work independently and synchronously. Our design team made a lot of improvement and innovation with more function and higher automation degree.



2.This up-dated machine can form the spring within one minute, which owns the features of easy to operate, high precision and low noise. It can save much testing spring time and the cost of the raw material. This machine also has the function of straight cutting, subtend cutting and Rotary cutting.





3.This machine can adopt the Camera Spring Length Gauge replacing the traditional length gauge, which can measure the spring length as well as the spring diameter.

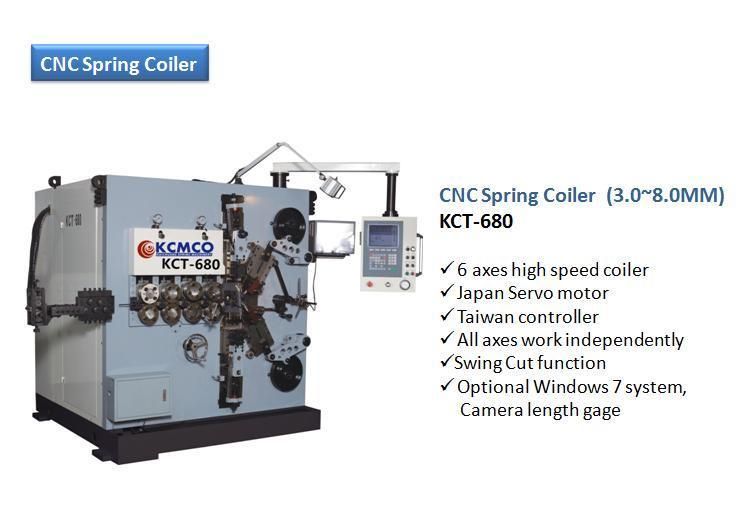

Machine
KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine

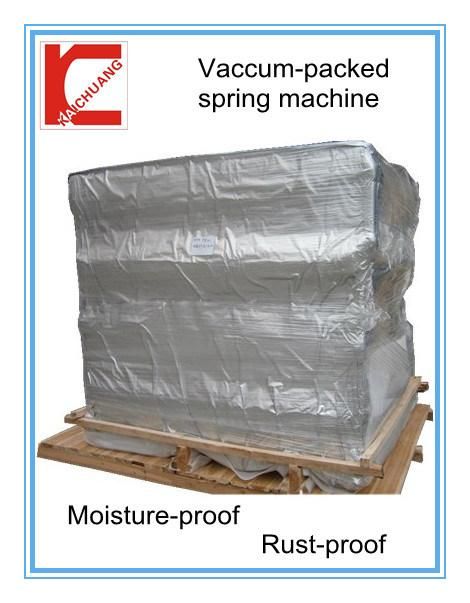

Machine package
KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine
KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine


Our advantages:

 1. The factory has about 15 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.



2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.



3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine



4. Quality first, QA/QC is one of the most important departments in our company.



5. Over 150 skilled worker, 48 technicians and one group of 20 engineers.



6. Main market:

7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
KCMCO-KCT-680 8mm 6 Axis CNC Compression Spring Coiling Machine&Big Wire Size Car Spring Coiling Machine

Dongguan Kaichuang Precision Machinery Co.,Ltd.

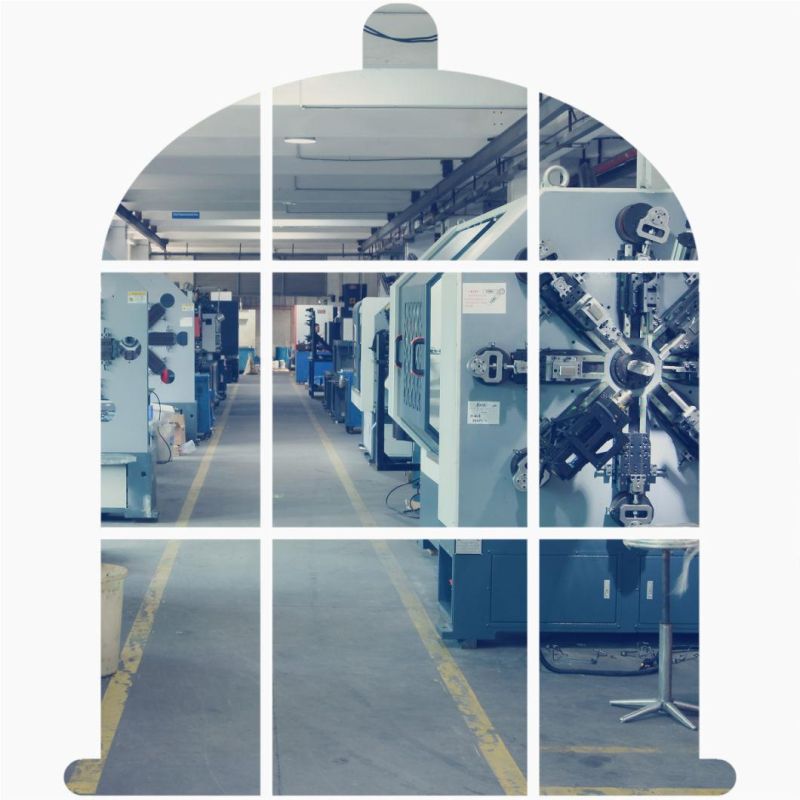

Company profile
Dongguan Kaichuang Precision Machinery Co., Ltd (referred to as KCMCO ) located in Dongguan Guangdong province, is one of the nation's largest professional manufacturer of CNC spring machinery, was founded in 2003.
KCMCO is a collection of R&D, manufacturing , sales and service in the integration.KCMCO introduces Taiwan controlling technology and Japan servo motor to produce variety of springs with the feature of high precision of feeding, stable and precise shaping as well as novel and attractive appearance.
 KCMCO Focus on advanced computerized multi-axes spring machine and cnc wire bending machine, cnc spring forming machine, cnc camless versatile spring machine , cnc compression spring machine and etc. We have setup a distribution network in various locations in China, U.S., Czech Republic, Russia, South America, India ,Thailand, etc.


Mission
KCMCO strives to provide our customers with products and services that meet and exceed their expectations.Our commitment to customer service and the efforts we put into creating means we go to find innovative to new challenges. As a customer -oriented company, we have the ability and core technology to move quickly and service numerous markets.
