• Model NO.：WC67K series
• Type：Press Brake
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
• Transport Package：Nude Packing
• Trademark：GUANGBEI
• Origin：China
• HS Code：84622990
• Production Capacity：100sets,Month

Basic Info.

Model NO. WC67K series Type Press Brake Application Machinery & Hardware Type for Fold-Bending Machine Hydraulic Fold-Bend Machine Transport Package Nude Packing Trademark GUANGBEI Origin China HS Code 84622990 Production Capacity 100sets/Month

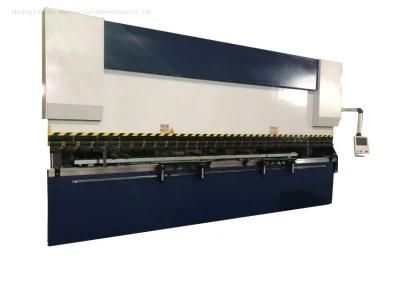

Product Description

Fuction:

1. All-steel welding structure with full strength and rigidly, hydraulic upper transport.
2. Fuction of quick up and pressurization as well as quick return and pressure relief.
3. RAM synchronization adopts device of withtorque-rod and gagget block.
4. Motor-diven adjuestment to stoke and back-gauge position, manul fine adjuestment with counter display.
5. Upper die adopts the deflection compensation device.
6. Large-scal working table adopts hydraulic deflection compensation device.

Model	Pressurekn	Length of work table   mm	Distance of both pole    mm	Depth of groove mm	Stroke    mm	Maximum height between work table and ram         mm	Main motor kw	Weight kg	Dimension (LxWxH) mm
WC67Y-40/2200	400	2200	1775	220	80	300	4	2500	2600x1100x1920
WC67Y-40/2500	400	2500	1925	220	80	300	4	3000	2650x1100x1950
WC67Y-50/2500	500	2500	2015	220	100	340	4	3750	2650x1250x2100
WC67Y-63/2500	630	2500	2015	250	100	340	5.5	4300	2650x1300x2200
WC67Y-80/2500	800	2500	2010	250	120	380	5.5	5200	2560x1350x2250
WC67Y-80/3200	800	3200	2510	250	120	380	5.5	6000	3260x1350x2280
WC67Y-100/2500	1000	2500	2050	320	150	420	7.5	6700	2550x1360x2270
WC67Y-100/3200	1000	3200	2550	320	150	420	7.5	7200	3260x1365x2520
WC67Y-100/4000	1000	4000	3050	320	150	420	7.5	8500	4060x1365x2720
WC67Y-125/3200	1250	3200	2550	320	150	420	7.5	7800	3260x1465x2600
WC67Y-125/4000	1250	4000	3050	320	150	420	7.5	9000	4060x1460x2800
WC67Y-160/3200	1600	3200	2590	320	200	475	11	10500	3260x1580x2775
WC67Y-160/4000	1600	4000	3040	320	200	475	11	12500	4060x1580x2925
WC67Y-160/6000	2000	6000	4800	320	200	480	11	19500	6060x1580x3480
WC67Y-200/3200	2000	3200	2580	320	200	475	18.5	13200	3260x1650x2800
WC67Y-200/4000	2500	4000	3030	320	200	475	18.5	14800	4060x1640x3025
WC67Y-250/4000	2500	4000	3130	400	250	530	18.5	19000	4060x1840x3150
WC67Y-250/5000	3000	5000	3930	400	250	530	18.5	24000	5060x1840x3450
WC67Y-300/3200	3000	3200	2530	400	250	580	18.5	18000	3300x2100x2980
WC67Y-300/4000	3000	4000	3200	400	250	580	18.5	22000	4060x2040x3330
WC67Y-300/6000	3000	6000	4720	400	250	580	18.5	32000	6060x1040x3830
WC67Y-400/4000	4000	4000	3180	400	320	630	30	30000	4060x2220x3630
WC67Y-400/6000	4000	6000	4700	400	320	630	30	45000	60602x2203x980
WC67Y-500/6000	5000	6000	4600	500	320	70	30	55000	6080x2760x4000
WC67Y-800/6000	8000	6000	4600	500	400	900	37	72000	6100x3250x4300
WC67Y-1000/6000	10000	6000	4600	600	400	900	50	100300	6250x3400x7100
