Cutting & Fold-bend Machine

Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

Anhui ZhongDe Machine Tool Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Press Brake
  • Product Name:Hydraulic CNC Press Brake with E200p CNC Cont

Base Info

  • Model NO.:WC67K-125,3200
  • Model:Wc67K-125,3200
  • CNC Controller:E200p CNC
  • Transport Package:Steel Fixed
  • Specification:125T3200mm
  • Trademark:ZDMT
  • Origin:China

Description

Basic Info.

Model NO. WC67K-125/3200 Model Wc67K-125/3200 CNC Controller E200p CNC Transport Package Steel Fixed Specification 125T3200mm Trademark ZDMT Origin China

Product Description

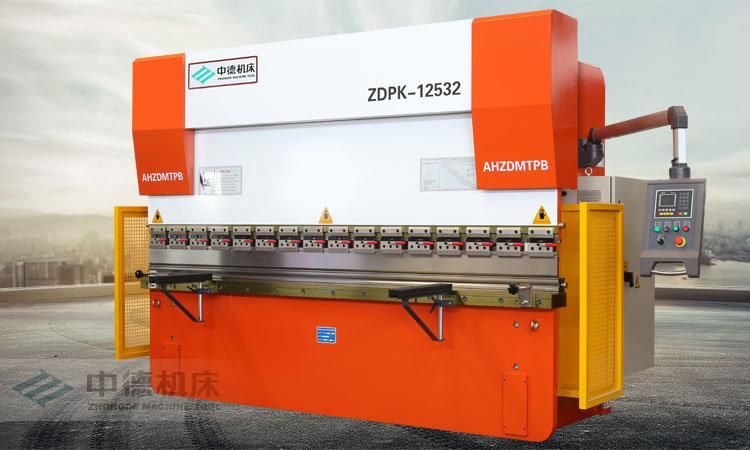

ZDMT Hydraulic CNC Press Brake with E200P CNC Controller ZDPK-12532 (WC67K-125/3200)

Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

Main functions and features

· Strong rigid torsion bar design,ensuring the synchronous movement of ram stroke.

· Built-in mechanical stop,ensuring an accurate positioning of ram stroke.

· With E200P CNC controller,control the backgauge (X axis) and ram stroke (Y axis) run automatically,with easy operation,more output with less input.

· X axis is controlled by servo motor,with strong synchronous belt,with high control accuracy,fast positioning and low noise.

· The backgauge installed with ball screw and linear rail,with high repetition accuracy and low maintenance.

· Vertial movable stop fingers,they can not only slide on linear rail but also go up or down if needed,adapt to different moulds.

· With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.

· With France Schneider electrics,stable and durable.

· With double front holder,can move horizontal.

· With imported hydraulic system,stable and high precision when persistent working.

Related configuration with details

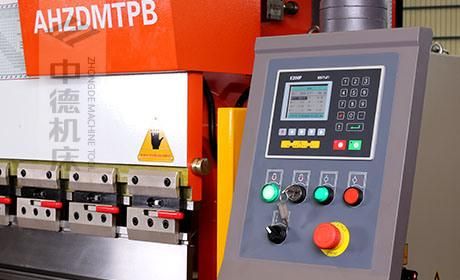

· With E200P CNC controller,control the backgauge (X axis) and ram stroke (Y axis) running automatically,with easy operation and high cost performance.

Main features of E200P controller:

CAN-bus mode to control servo system of X axis

Parts counting

40 programs saving,each with 25 sequences

One side positioning

Built-in time relay for cutting time and retrack

One key backup/restore of paremeters

Online diagnosis and real-time alarm

Reseved ports for safety guard

Color LCD bright display

mm/inch

Chinese/English
Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

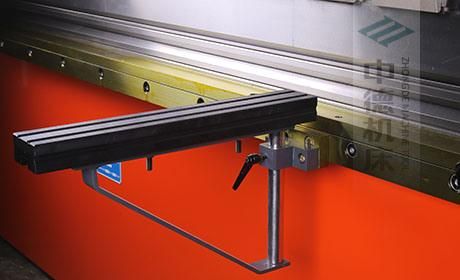

· Nylon front support to avoid scractch of sheets and improve the bending process.
Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

· Domestic top brand motor and pump,with strong force and low noise.

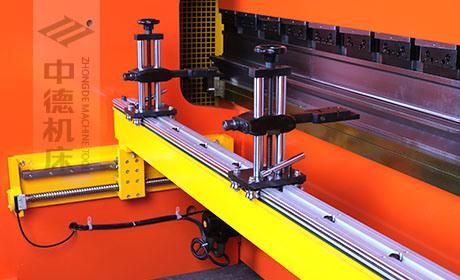

· Thicker type backgauge structure,adjustable stop fingers,they can not only slide on linear rail but also go up or down if needed,adapt to different moulds.
Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

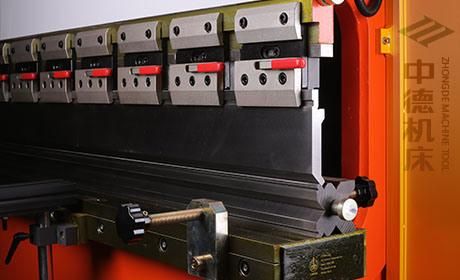

· High precision quick clamps,it is for easy operation of removing and changing upper punch tools.
Zdmt Hydraulic CNC Press Brake with E200p CNC Controller

· With Y axis servo positioning function,it can accurate and effective improve Y axis accuracy and working efficiency.
· With imported hydraulic valve,stable and durable.

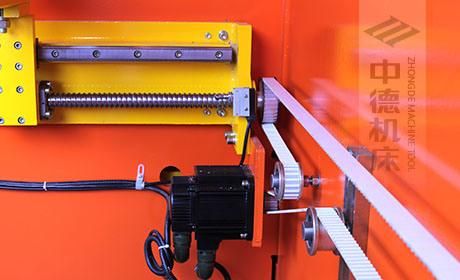

· X axis with ball screw,linear rail,servo motor and steel synchronous belt,can improve X axis positioning precision and speed.

Zdmt Hydraulic CNC Press Brake with E200p CNC Controller
