• Type：Press Brake
• Name：Njwg Automatic Stainless Steel 300t 4000mm CNC Hyd
• Place of Origin：Nanjing
• Port of Shipment：Sahnghai
• Open Height(mm)：580
• Main Motor(Kw)：30
• Transport Package：Wooden Case
• Specification：4300mm*2500mm*3900mm
• Trademark：WANGUO
• Origin：China
• HS Code：8462219000
• Production Capacity：100per Month

Electro hydraulic synchronous press brake
The machine is in an overall welding and overall processing structure, and the main parts of machine are all analyzed by ANSYS finite element analysis sofware, which has ensured the relibility of machine and the precision of entire machine.
The CNC control system adopts Netherland DELEM, Italian ESA, or Swiss CYBELEC products, which can achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion, extending length of workpieces, bending pressure for bottom bending, open distance, and automatic withdrawal of rear stopper, etC.
ModelNominal pressure(KN)Length of table(mm)Distance between columns(mm)Throat depth(mm)Stroke(mm)Open height(mm)Main motor(KW)Overall dimensions
L×W×H(mm)63t/2500630250019053001504205.52700*1700*230063t/3200630320027003001504205.53400*1700*230080t/2500800250019003001504205.52700*1700*240080t/3200800320027003001504205.53400*1700*2300100t/32001000320027003501804207.53400*1800*2600100t/40001000400031003501804207.54200*1800*2600125t/3200125032002700350200420113400*1900*2600125t/4000125040003090350200420114200*1900*2600160t/3200160032002600350200450153400*2000*2800200t/320020003200260040020045018.53400*2200*2850250t/3200250032002600400250520223500*2100*3800300t/4000300040003200400250580224300*2500*3900300t/6000300060004600400250580226300*2500*4800400t/4000400040003200400250580304200*2700*4200400t/6000400060004600400250600306300*2700*4300500t/4000500040003200400250600374300*2700*4200500t/6000500060005050400300600373600*3300*4800600t/5000600050003800500320640455300*3300*4500700t/6000700060004900500320700556300*3500*5500800t/6000800060004600500320800556300*3500*6000       Nanjing Wanguo Machinery Technology Co., Ltd. has been committed to providing efficient and environmentally friendly energy recovery machinery and Sheet processing equipment. Mainly engaged in the sale of small and medium-sized shredding machine, plastic crushing machine and fiber metal laser cutting machine. Companies adhering to the "quality first, reputation first" service tenet, to market survival, quality and development, excellent materials, exquisite production methods, responsible after-sales service, so that our products sell well at home and abroad.

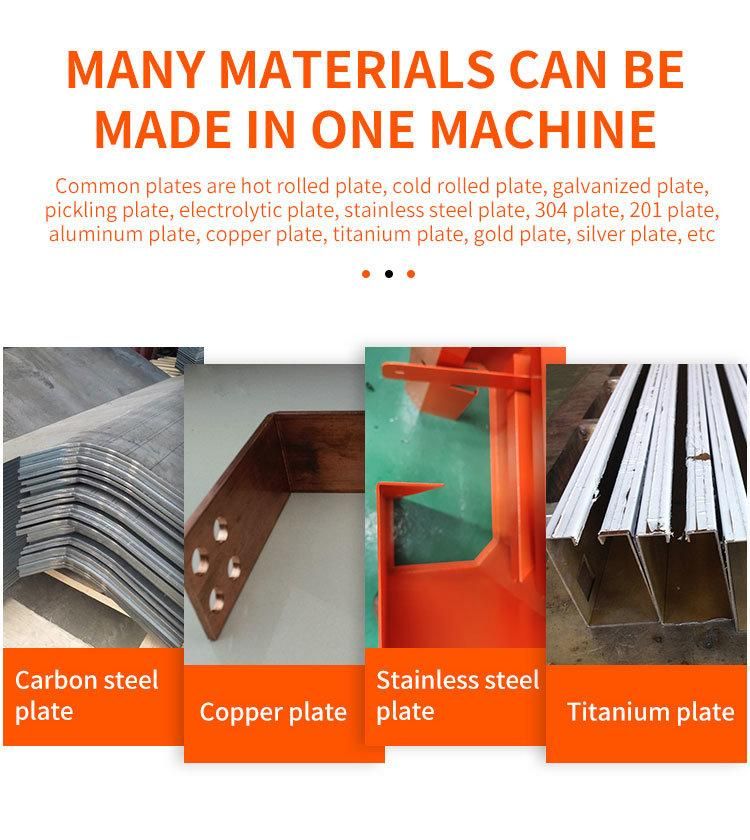

        We can provide a variety of fiber metal laser cutting machine. These machines have higher accuracy, faster speed, and less material and labor. These equipment can cut some common plate, such as: carbon steel plate, stainless steel, aluminum plate, titanium alloy plate, etc. The body of our laser cutting machine is welded by steel plate, and the whole machine is tempered and processed as a whole. It ensures high precision and the fuselage will not be deformed for 10 years.  Our products have passed the C E, the factory has passed the I S quality system certification. Committed to providing customers with practical, wear-resistant, affordable high quality machines, accept large, medium and small orders. Vision: To build a world brand in China's machinery industry. Mission: Committed to make all countries in the world use all countries products. Values: culture, corporate governance, all over the world. Welcome customers at home and abroad to visit and guide!
FAQ
1. Delivery time:
30-45 days according to different type.
2. Installation and commissioning time:
About 7 days.
3. Installation and commissioning issue:
We will send technicians to help with machine installation and commissioning, customer pays for round-trip airfare, local accommodation expenses.
4. Warranty time:
1 year after installation.
5. Payment term:
30% as prepayment balance 70% before delivery or L/C at sight.
6. We supply full English documents:
Including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
