Special 3D Hydraulic Bracket Ring Making Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year
- Application：Ring Making
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Standard Fumugated Wooden Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Base Info
Description
Product Description

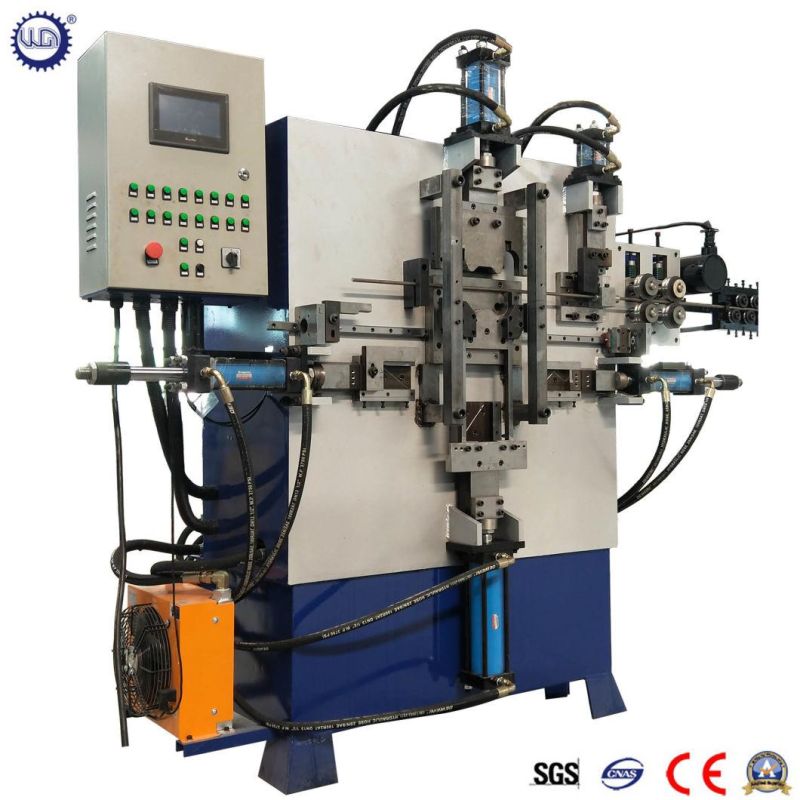

Bracket ring making machine is to expertly produce bracket rings fully automatically.
It is suitable for wire size from 2.0mm up to 8.0mm.
Technical parameter:
model:GT-BR5
1. wire size: 2.0mm - 5.0mm
2. Max. feeding length: 500mm
3. Motor: 2.2 kw
4. Production capacity: 10-12pcs per minute
5. Dimension (LXWXH): 1900 x 1100 x 1930mm
6. Weight: 1000.0kg
MODEL :GT-BR8
1. wire size: 3.0mm - 8.0mm
2. Max. feeding length: 700mm
3. Motor: 5.5 kw
4. Production capacity: 10-12pcs per minute
5. Dimension (LXWXH): 2000 x 1100 x 1970mm
6. Weight: 1200.0kg
Packaging & Shipping
