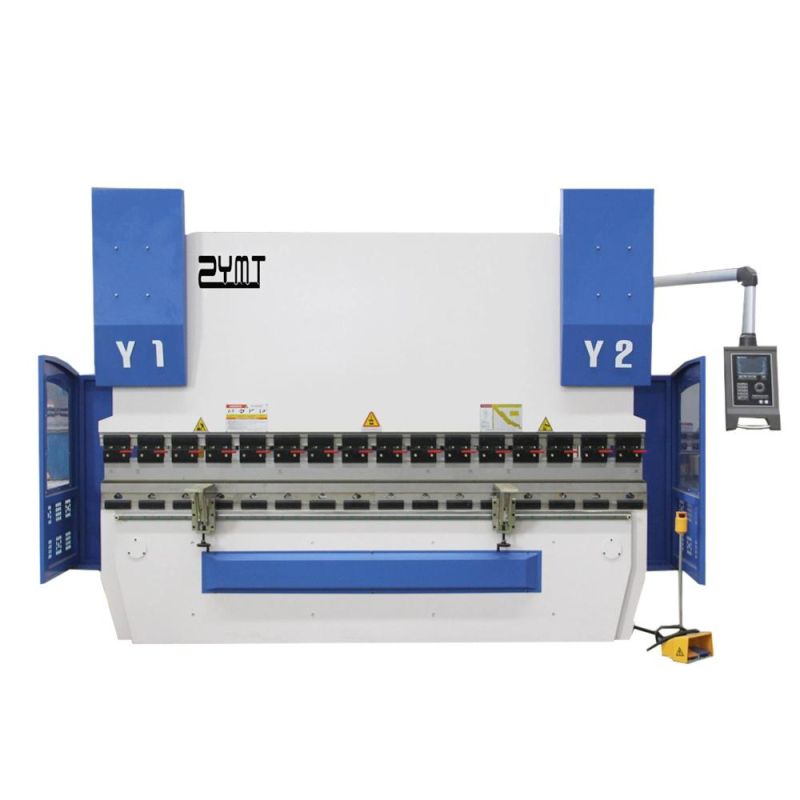

| 1. Overrall welded and processed structure. |
| 2. Special numeric-control system is fitted with mainframe of the bending machine. |
| 3. Multi-work-step programming function is able to achieve an automatic operatrion and adjustment for positions of rear stopper and top ram. |
| 4. The machine is provided with bend counting function for a real-time display of processing quantity and power-failure memory fo positions of rear sttopper and top ram as well as procedures and parameters. |

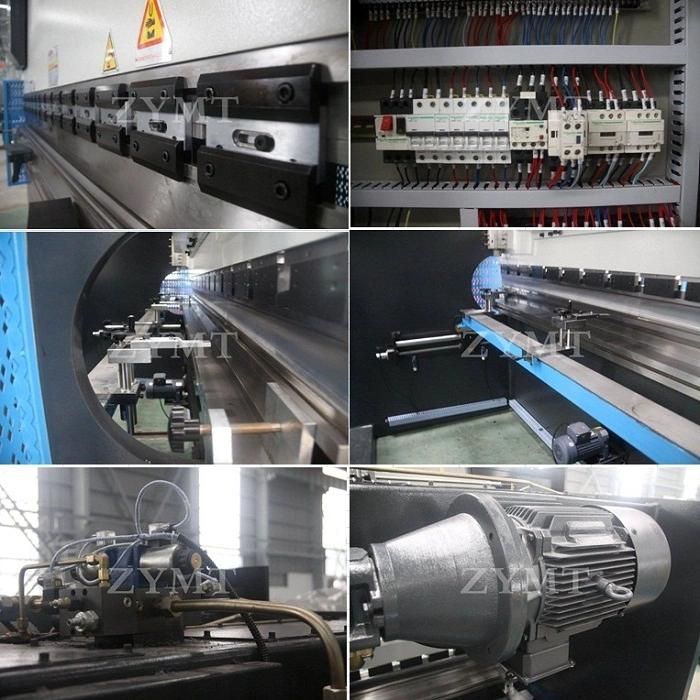

| 5. Ball screw and linear guides are used for rear stopper to ensure the positioning precision of rear stopper for processing precision of machine to be higher. |
| 6. NC controller uses Holland DELEM DA41, China ESTUN E200, E210, Italy Maper HT072, German ELGO P8822, P40. |
7. Two machines can be tandem press brakes. | Model | Force
KN) | Bending length
(mm) | Vertical distance (mm) | Throat depth (mm) | Stroke(mm) | Max. opening (mm) | Main power (Kw) | Wieght Approx.(Kg) | 40T/2200 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2750 | 40T/2500 | 400 | 3200 | 1850 | 230 | 100 | 320 | 5.5 | 3000 | 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3400 | 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 7.5 | 5000 | 80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 7.5 | 6020 | 80T/4000 | 800 | 4000 | 2960 | 320 | 100 | 350 | 7.5 | 7000 | 100T/2500 | 1000 | 2500 | 1980 | 320 | 150 | 350 | 11 | 6000 | 100T/3200 | 1000 | 3200 | 2540 | 320 | 150 | 400 | 11 | 6500 | 100T/4000 | 1000 | 4000 | 2950 | 320 | 150 | 400 | 11 | 8000 | 125T/3200 | 1250 | 3200 | 2550 | 320 | 150 | 400 | 11 | 6800 | 125T/4000 | 1250 | 4000 | 2940 | 320 | 150 | 400 | 11 | 8200 | 160T/3200 | 1600 | 3200 | 2540 | 320 | 200 | 460 | 11 | 11000 | 160T/4000 | 1600 | 4000 | 2940 | 320 | 200 | 460 | 11 | 11500 | 160T/5000 | 1600 | 5000 | 3940 | 320 | 200 | 460 | 11 | 14000 | 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 18500 | 200T/3200 | 2000 | 3200 | 2540 | 320 | 200 | 460 | 11 | 11000 | 200T/4000 | 2000 | 4000 | 2940 | 320 | 200 | 460 | 11 | 12200 | 200T/5000 | 2000 | 5000 | 3940 | 320 | 200 | 460 | 11 | 14500 | 200T/6000 | 2000 | 6000 | 4940 | 320 | 200 | 460 | 11 | 18500 | 250T/3200 | 2500 | 3200 | 2530 | 400 | 250 | 590 | 18.5 | 17500 | 250T/4000 | 2500 | 4000 | 2930 | 400 | 250 | 590 | 18.5 | 18700 | 250T/5000 | 2500 | 5000 | 3940 | 400 | 250 | 590 | 18.5 | 22000 | 250T/6000 | 2500 | 6000 | 4930 | 400 | 250 | 590 | 18.5 | 26500 | 300T/3200 | 3000 | 3200 | 2520 | 400 | 250 | 590 | 22 | 19500 | 300T/4000 | 3000 | 4000 | 2920 | 400 | 250 | 590 | 22 | 21500 | 300T/5000 | 3000 | 5000 | 3920 | 400 | 250 | 590 | 22 | 24000 | 300T/6000 | 3000 | 6000 | 4920 | 400 | 250 | 590 | 22 | 29000 | 400T/4000 | 4000 | 4000 | 2910 | 400 | 250 | 590 | 30 | 23000 | 400T/5000 | 4000 | 5000 | 3910 | 400 | 250 | 590 | 30 | 28500 | 400T/6000 | 4000 | 6000 | 4910 | 400 | 250 | 590 | 30 | 35000 | 500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 45 | 44000 | 500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 45 | 55000 | 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 45000 | 600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 60000 | | | | | | | | | |
|
