QC12K Series CNC Hydraulic Cutting Machine Metal Plate Sheet Machine Electric Metal Cutting Machines for Ship Building
Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.- Automation：Automatic
- Certification：CE
- Condition：New
- Warranty：1 Year
- Weight：6000kg
- Type：Shearing Machines
Base Info
- Material / Metal Processed：Alloy,Carbon Steel,Stainless Steel
- Voltage：220
- Rated Power：11
- Key Selling Points：Multifunctional
- Transport Package：Wooden Case
- Specification：CE
- Trademark：zymt
- Origin：Anhui, China
- HS Code：8462319000
- Production Capacity：100 Set,Sets Per Month
Description
Type Cutting Thickness (mm) Cutting Length(mm) Cutting Angle(°) Material Strength (KN/CM) Stroke (times/min) Power(kw) Weight(kg) Dimension(mm) 4×2500 4 2500 1°30' ≤450 10 5.5 3800 3040*1610*1620 4×3200 4 3200 1°30' ≤450 10 5.5 5000 3840*1610*1620 4×4000 4 4000 1°30' ≤450 8 5.5 6500 4600*1700*1700 4×6000 4 6000 1°30' ≤450 5 7.5 11000 6460*2100*3200 6×2500 6 2500 1°30' ≤450 10 7.5 5000 3040*1610*1620 6×3200 6 3200 1°30' ≤450 9 7.5 6000 3840*1610*1620 6×4000 6 4000 1°30' ≤450 8 7.5 8000 4620*1750*1700 6×5000 6 5000 1°30' ≤450 6 7.5 10500 5400*1750*1700 6×6000 6 6000 1°30' ≤450 5 11 16500 6480*2100*2300 8×2500 8 2500 1°30' ≤450 10 7.5 6000 3040*1700*1700 8×3200 8 3200 1°30' ≤450 8 7.5 7200 3860*1700*1700 8×4000 8 4000 1°30' ≤450 8 7.5 8800 4640*1700*1700 8×5000 8 5000 1°30' ≤450 8 7.5 11500 5400*2400*2000 8×6000 8 6000 1°30' ≤450 8 11 18000 6480*2100*2350 10×2500 10 2500 1°30' ≤450 9 11 7300 3040*1700*1700 10×3200 10 3200 1°30' ≤450 9 11 8000 3860*1700*1700 10×4000 10 4000 1°30' ≤450 8 11 12000 4650*2100*2000 10×6000 10 6000 2° ≤450 5 15 24000 6500*2100*2300 12×2500 12 2500 2° ≤450 9 18.5 9000 3140*2150*2000 12×3200 12 3200 2° ≤450 9 18.5 10800 3880*2150*2000 12×4000 12 4000 2° ≤450 8 18.5 13000 4680*2150*2000 12×5000 12 5000 2° ≤450 6 18.5 16000 5900*2150*2000 12×6000 12 6000 2° ≤450 5 18.5 29000 6900*2600*2700 12×8000 12 8000 2° ≤450 5 18.5 46500 9000*3500*3500 16×2500 16 2500 2°30' ≤450 9 18.5 11000 3140*2150*2000 16×3200 16 3200 2°30' ≤450 8 18.5 13000 3880*2150*2000 16×4000 16 4000 2°30' ≤450 8 18.5 16300 4650*2150*2200 16×5000 16 5000 2°30' ≤450 6 18.5 20000 5900*2600*2700 16×6000 16 6000 2°30' ≤450 5 22 36000 6900*2700*2700 20×2500 20 2500 3° ≤450 8 22 15500 3440*2300*2500 20×3200 20 3200 3° ≤450 8 22 18000 4150*2350*2700 20×4000 20 4000 3° ≤450 5 22 21000 4850*2350*2700 25×2500 25 2500 3° ≤450 8 37 19000 3200*2700*2900 25×3200 25 3200 3° ≤450 5 37 23000 4200*2700*2900 25×4000 25 4000 3° ≤450 5 37 27000 3850*2700*2900 30×2500 30 2500 3° ≤450 5 37 23500 3300*2900*2900 30×3200 30 3200 3° ≤450 5 37 27500 4200*2900*2900
(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.

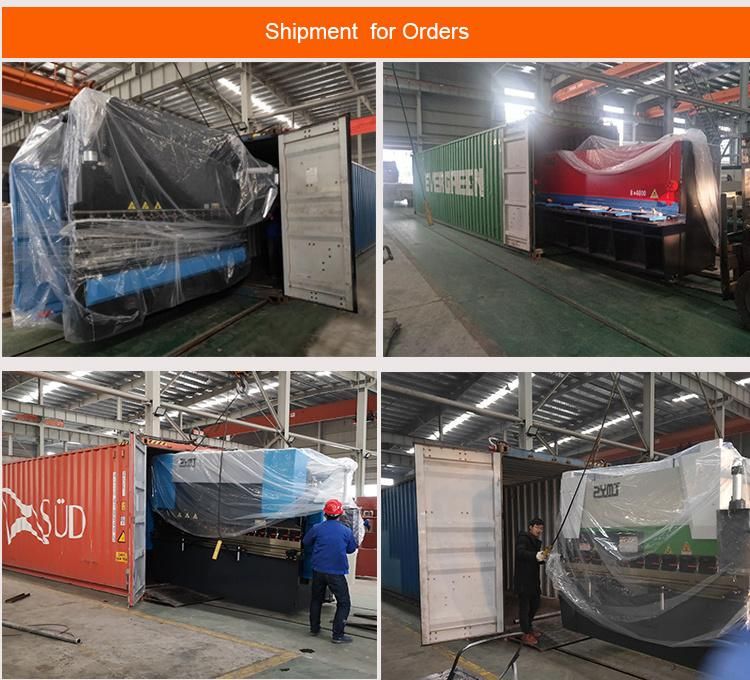

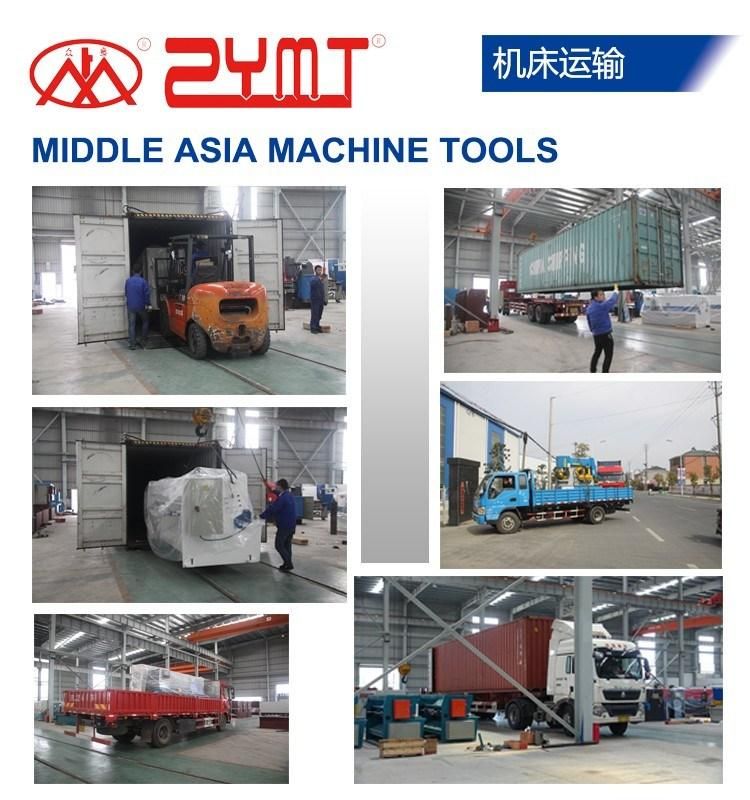

(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.(3)After loading, our professional documentary staff will follow the order till the product departs from port.
1. Shearing blades and accessories-Customized to your specifications.In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.
2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.
3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
