• Model NO.：GM-38CNC-2A-1S
• Type：Pipe and Tube Bending Machine
• Colour：as Customer Requires
• Transport Package：Iron Frame
• Specification：4200X1100X1500mm
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-38CNC-2A-1S Type Pipe and Tube Bending Machine Colour as Customer Requires Transport Package Iron Frame Specification 4200X1100X1500mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

1. Characteristics of the machine:

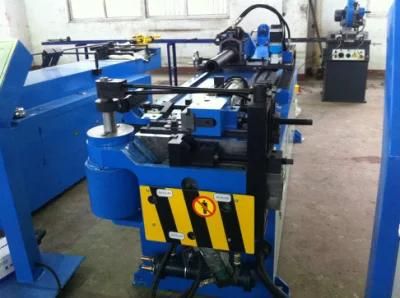

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic.2. Main technical parameters

Name	Unit	Parameter
Max. Bending Capacity	mm	¢38*2
Bending Radius Range	mm	20-200
Max. Bending Angle	°	190°
Bending Speed	°/sec	60
Turning Speed	°/sec	200
Feeding Speed	mm/sec	1000
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	0.4
Feeding Servomotor Power	kW	1
Though Effective Distance	mm	3200
System Motor Power	kW	4
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	14
L*W*H (Packaging Dimension)	mm	4200*1100*1500
Weight	T	2.0


3. The main Configuration:

Name	Manufacturer
Hydraulic Motor	Germany Siemens( Imported)or Wuxi Taihu
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Servo motor	Mitsubishi
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

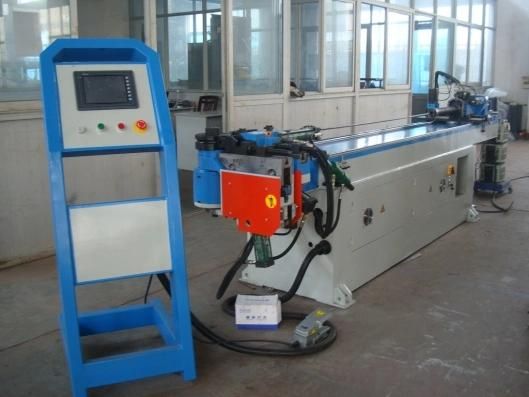

 Machine Photos
