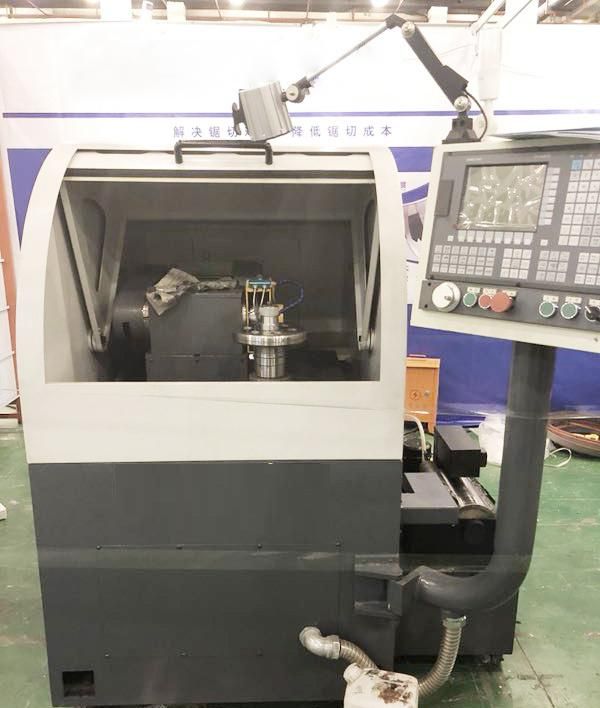

CNC Fully Automatic Saw Blade Sharpener
Zhangjiagang Baorui Machinery Co., Ltd.- After-sales Service：Yes
- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：CE
- Automation：Automatic
Base Info
- Model NO.：other
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Saw Blade Sharpening Machine
- Extra Services：Support Customized
- Name：Saw Blade Sharpening Machine
- Max Saw Blade Thickness：6mm
- Speed：1-50 Teeth,Min
- Saw Blade Diameter：80-400mm
- Power：CNC
- Saw Blade Hole：22-25 , 4-32-40-50
- Grinding Wheel Size：200
- Transport Package：Wooden Case
- Specification：1500*1430*1690mm
- Trademark：Baorui
- Origin：China
- HS Code：8460310000
- Production Capacity：100 Piece,Pieces Per Year
Description
Item
Name
Mm
1
saw blade diameter
Φ80-400mm
Need special parts if diameter less than 140mm
2
Max Saw blade thickness
6mm
3.
Saw blade hole
Φ22-25 , 4-32-40-50
4
Teeth type
BW, CW>Φ200
5
Degree
-10º-28º
6
Teeth distance
Max 24mm
7
Teeth quantity
10-999 teeth
8
Speed
1-50 teeth/min
9
grinding wheel motor power
4 KW
10
grinding wheel type
Cubic Boron Nitride)
11
Grinding wheel size
Φ200
12
Grinding wheel feeding servo motor power
0.75KW
13
Motor power
6 KW
14
Machine size
1500 X 1430 X 1690mm
15
Machine weight
1380 kgs
