• Model NO.：STB-114NC
• Type：Pipe and Tube Bending Machine
• Bend：Hydraulic
• Tool Hardening：50HRC
• Bend Speed：2 Second,Bend
• Transport Package：Plywood Case
• Specification：LWH: 6800× 1500× 1800mm, GW: 7500kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-114NC Type Pipe and Tube Bending Machine Bend Hydraulic Tool Hardening 50HRC Bend Speed 2 Second/Bend Transport Package Plywood Case Specification LWH: 6800× 1500× 1800mm, GW: 7500kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

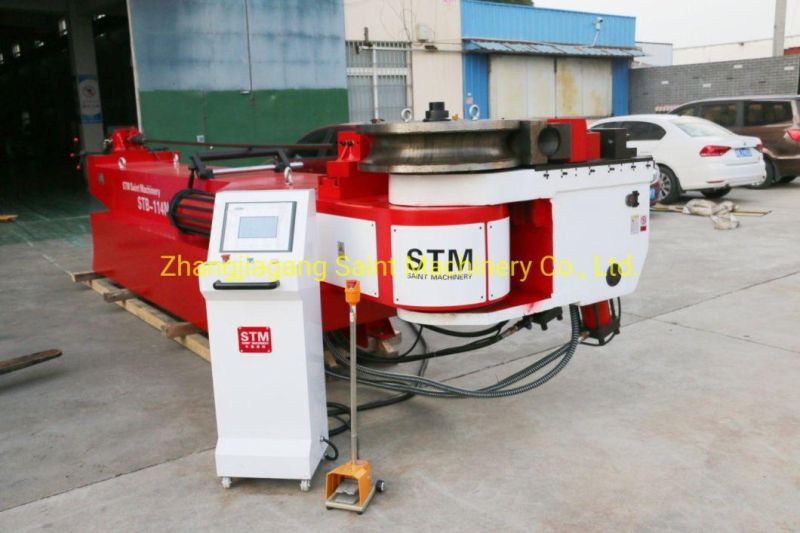

The NC series tube benders (Pipe bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
1.Reasonable design and simple style, provides the best space for bending.
2.Numerical control, convenient operation make the settings flexible.
3.Using the encoder ensures the bending angle accurate and stable.
4.Multiple processing models stored for different processing programs switched flexibly
5.Automatically Counting and power failure memory function
6.Hydraulic cooling system ensures the equipment long-time work stably under the high temperature
7.The main shaft is specially heat treated.
8.All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.
9.The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.
10.Suitable for various materials such as steel, stainless, aluminum and copper.


Parameters	STB-114NC
Bending capability	φ114×7mm
Bending radius	90~600mm
Min bending radius	R≥1.5D
Bending angle	0~190°
Valid mandrel bar	0~5500mm
Bending speed	8°/sec
Bending accuracy	±0.2°
Main motor power	15Kw
System hydraulic pressure	14MPa
Size	6800×1500×1800mm
Weight	About 6000kg
