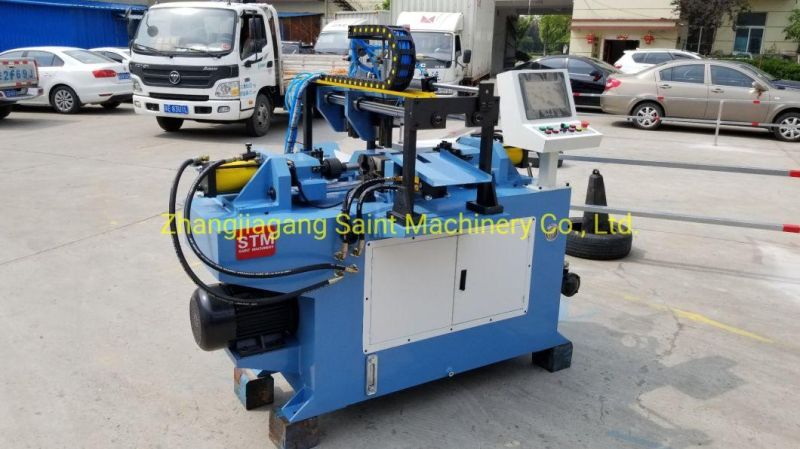

Automatic Loading and Unloading Pipe End Forming Machine

Zhangjiagang Saint Machinery Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation：Automatic
  • Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：DTM30-AL
  • Type：Pipe End Forming Machine
  • Forming：Hydraulic 17.5t
  • Tool Shifting：Servomotor
  • Station Qty：3 Stations
  • Transport Package：Plywood Case
  • Specification：LWH: 2800x1250x1600mm, GW: 1800kg
  • Trademark：STM
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：500

Description

Basic Info.

Model NO. DTM30-AL Type Pipe End Forming Machine Forming Hydraulic 17.5t Tool Shifting Servomotor Station Qty 3 Stations Transport Package Plywood Case Specification LWH: 2800x1250x1600mm, GW: 1800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

Premium PLC unit, touch screen, convenient opration, flexible settings and easy to learn.

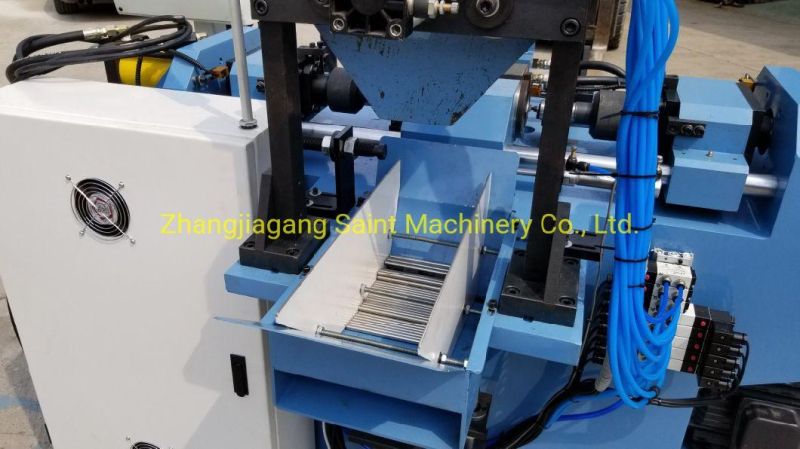

AC servo motor with pneumatic robot is transfering the pipe from auto loader to the end forming station very fast.

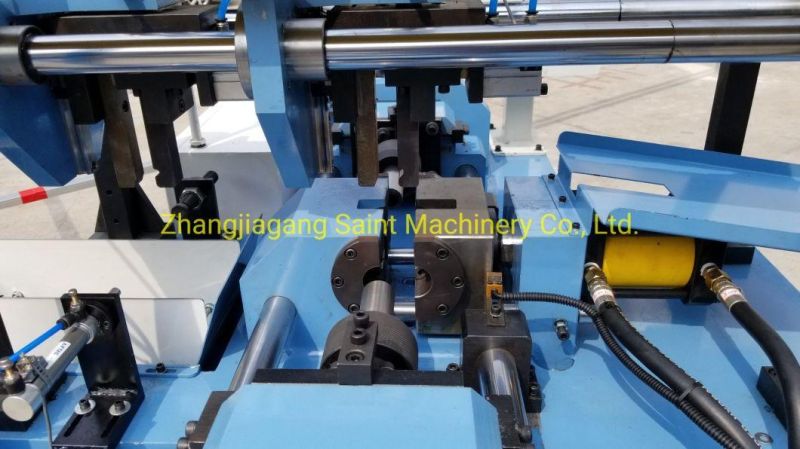

Powerful hydraulic end forming and precise end forming toolings make the pipe end forming perfect.

High-accuracy linear slide rail ensures the end forming stable propulsion.

It can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming.

Hydraulic cooling system (cooling fan and water cooling system) to ensure the equipment long-time work stably under the high temperature.

Technical parameters

ParametersDTM30-AL
Tube processing capabilityMax Φ30mm
Max processing length
(reducing or expanding length)		60mm (Can be lengthened)
Main cylinder max output (double end)Each one 5.5 T
Motor power5.5 Kw
Oil pressure14MPa
Size1800×900×1600mm
Gross weight900 kg
