• Model NO.：QC12K-10X2500
• Type：Cutting Machine
• Main Motor：Siemens
• Pump：Sunny
• Controller：E21s
• Hydraulic Valve：Rexroth
• Ball Screw：Hiwin
• Backgauge Motor：Jiahuang
• Transport Package：Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462399000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. QC12K-10X2500 Type Cutting Machine Main Motor Siemens Pump Sunny Controller E21s Hydraulic Valve Rexroth Ball Screw Hiwin Backgauge Motor Jiahuang Transport Package Plastic Cover Specification CE STANDARD Trademark ZYMT Origin China HS Code 8462399000 Production Capacity 3000sets/Year

Product Description

Swing Beam Shearing Cutting Machine Hydraulic Cutting Machine

Nc Swing Beam Shear / Cutting Machine / Hydraulic Shear Machine (QC12K-10X2500):
1. Digital display
2. 1 year warranty
3. Delivey time: 35 days
4. High quality

Features:

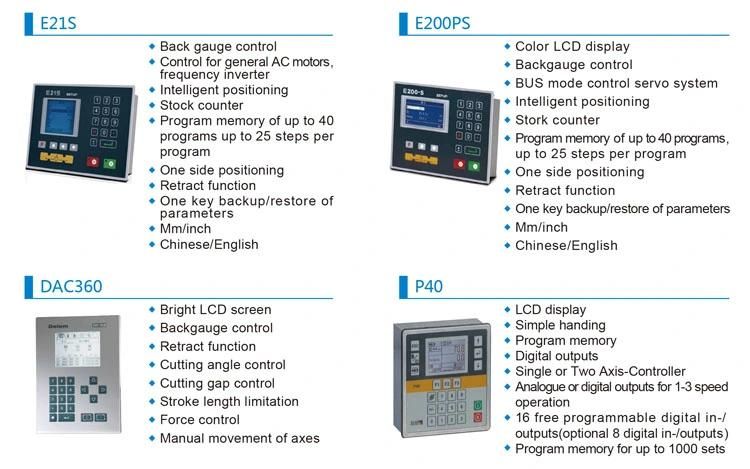

The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Back gauge with precision ball screw and liner guide, to ensure the positioning precision, so that bring the higher precision processing.

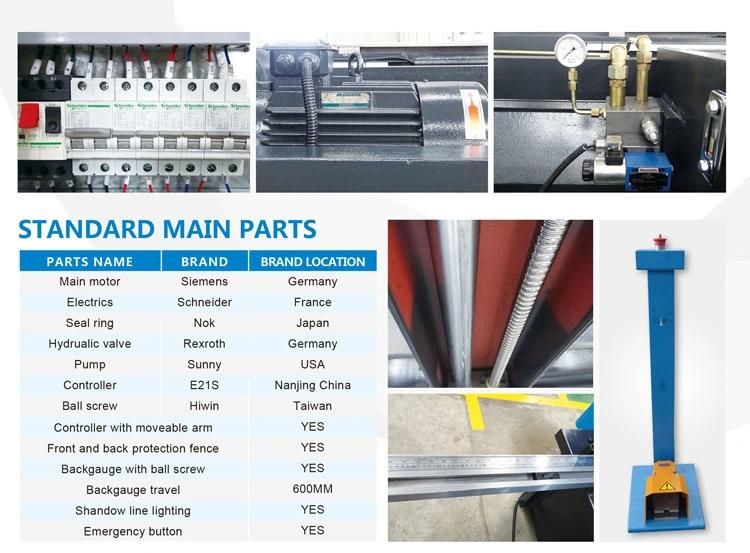

Main Equipments:




Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

Parameters:

Type	Cutting Thickness(mm)	Cutting Length(mm)	Cutting Angle(°)	Materail Strength(KN/CM)	Travel Times	Power(kw)	Weight(kg)	Dimension(mm)
10/2500	10	2500	1.5	≤450	9/min	11	7300	3040*1700*1700

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

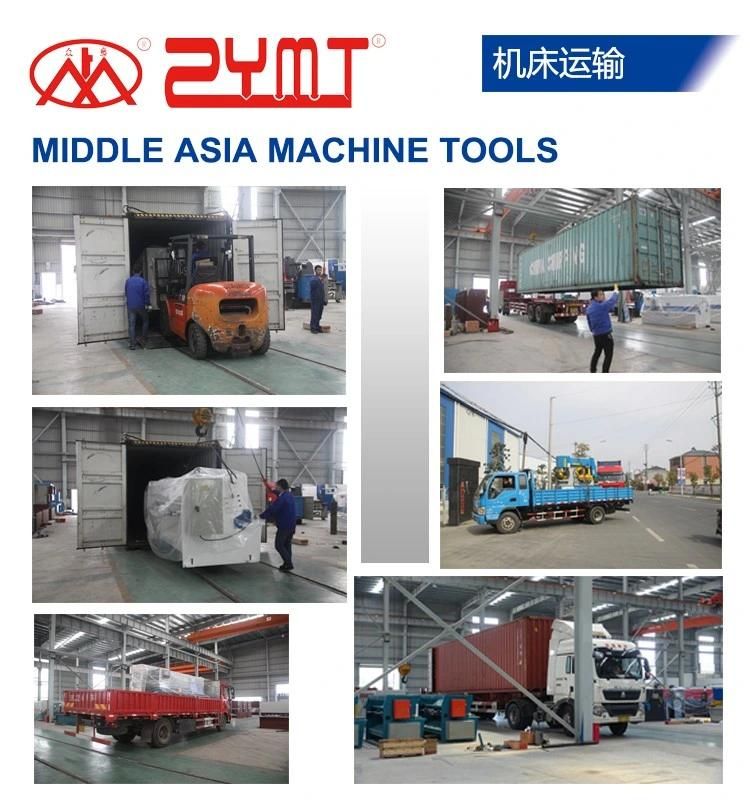

Packing&Delivery:


With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.

Our Services:
1.24 hours telephone line is available for any question.
2.Experienced service technician team is available.
3.Support in hard work solution.
