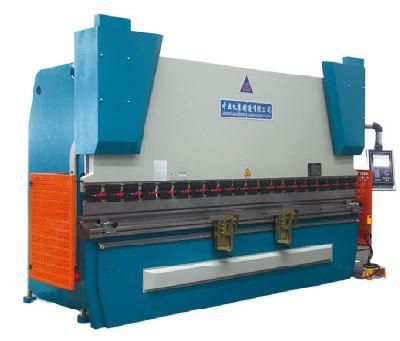

• Model NO.：WC67K160T*4000
• Electrics：Schneider France
• Hydraulic Valve：Rexroth Germany
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
• Pipe Connector：Emb, Germany
• Grating Ruler：Heidemhain, Germany
• Standard Axis：X, Y1, Y2+W
• Backgauge Travel：500mm
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：3000sets,Year

NO.Parts nameBrandBrand locationModel1.Main motorSiemensGermany 2.Bacguage motorDetongShanghai China 3.Ram motorKongteNanjing China 4.ElectricsSchneiderFrance 5.Oil cylinderYuhuaMaansh China 6.Seal ringNokJapan 7.Hydraulic valveRexrothGermany 8.PumpHangfaShanghai China 9.ControllerE21Nanjing China 10.MouldGuolingMaanshan China 11.Pipe connectorEMBGermany 12.FootswitchKarconSouth Korea 13.Ball screwHiwinTaiwan 14.Controller with moveable armYES15.Front and back protection fenceYES16.Backguage with ball screwYES17.Backguage travel500MM18.Emergency buttonYES

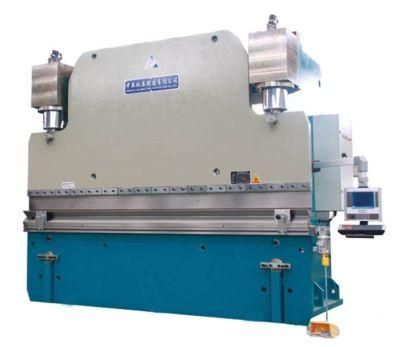

2:E200 higher level NC controller with servo motor of X-Y-axis Bending MachineNO.Parts nameBrandBrand locationModel1.     Main motor SiemensGermany 2.     Bacguage motorEstonNanjing ChinaServo motor3.     Ram motorEstonNanjing ChinaServo motor4.     ElectricsSchneiderFrance 5.     Oil cylinderYuhuaMaansh China 6.     Seal ringNokJapan 7.     Hydraulic valveRexrothGermany 8.     PumpHangfaShanghai China 9.     ControllerE21Nanjing China 10.   MouldGuolingMaanshan China 11.   Pipe connectorEMBGermany 12.   FootswitchKarconSouth Korea 13.   Ball screwHiwinTaiwan 14.   Guide railHiwinTaiwan 15.   Controller with moveable armYES16.   Front and back protection fenceYES17.   Backguage with ball screwYES18.   Backguage travel500MM19.   Emergency buttonYES

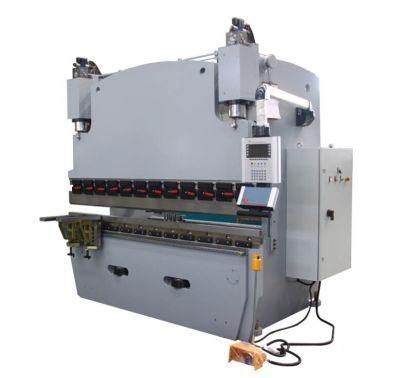

3::Two axes DA41 NC Control systemNO.Parts nameBrandBrand locationModel1.     Main motor SiemensGermany 2.     Bacguage motorEstonNanjing ChinaServo motor3.     Ram motorEstonNanjing ChinaServo motor4.     ElectricsSchneiderFrance 5.     Oil cylinderYuhuaMaansh China 6.     Seal ringNokJapan 7.     Hydraulic valveRexrothGermany 8.     PumpHangfaShanghai China 9.     ControllerDA41Holland 10.   BladesJinshanShanghai China 11.   Pipe connectorEMBGermany 12.   FootswitchKarconSouth Korea 13.   Ball screwHiwinTaiwan 14.   Guide railHiwinTaiwan 15.   Controller with moveable armYES16.   Front and back protection fenceYES17.   Backguage with ball screwYES18.   Backguage travel500MM19.   Emergency buttonYES


Technical parameters of Bending MachineTypeNominal force(KN)Worktable length(mm)Poles distance(mm)Throat depth(mm)Slider travel(mm)Max open (mm)Power (KN)WeightDimension (mm)40t/2200400220018502301003205.527502200*1200*190040t/2500400250018502301003205.530002500*1200*190050t/2500500250018502301003205.534002500*1200*200063 t/2500630250019002501003205.540002500*1300*221063 t/3200630320025602501003205.548003200*1300*221080 t/2500800250019903001003207.550002500*1400*230080t/3200800320025603201003507.560003200*1500*230080t/4000800400032003201003507.570004000*1500*2400100t/25001000250019903201203507.560002500*1600*2400100t/32001000320026003201504007.568003200*1600*2600100t/40001000400032003201504007.580004000*1600*2600125t/32001250320026003201504001170003200*1600*2600125t/40001250400032003201504001185004000*1600*2600160t/320016003200258032020046011100003200*1700*2700160t/400016004000290032020046011110004000*1700*2800160t/500016005000390032020046011135005000*1900*3100160t/600016006000490032020046011185006300*1900*3200200t/320020003200248032020046011110003200*1950*2800200t/400020004000290032020046011125004000*1950*2800200t/500020005000390032020046011140005000*1950*3000200t/600020006000490032020046011200006000*1950*3300250t/320025003200245040025059018.5185003250*2000*3200250t/400025004000290040025059018.5200004000*2000*3400

Our service
1:Established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:We have a specialized group in charge of the whole business process.Pre-sales to be a staff, the sales is a friend, and after-sales we are partners.



1.24 hours telephone line is available for any question.

2.Experienced service technician team is available.

3.Support in hard work solution.



Certifications
