• Transport Package：Base Framed by Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• Production Capacity：50unit,Month

Basic Info.

Transport Package Base Framed by Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) Production Capacity 50unit/Month

Product Description

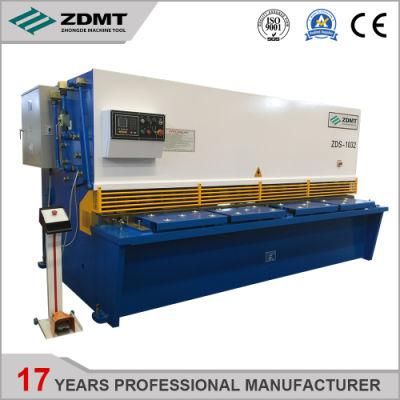

Hydraulic Metal Steel Plate Cutting & Guillotine Shearing Machine

China Well-Known Trademark and Anhui Top Brand - ZDMT hydraulic shearing machine ZDS-1632 (QC12Y-16X3200),Steel plate welded structure,hydraulic transmission and accumulator return strock;Characterized by easy operation,reliable performance and fine appearance;E21S as the simple CNC controller,it can control the movement of backgauge,achieving efficient and highly precise positioning;The blades with high tensile strength,can cut mild steel and stainless steel;The maximum cutting thickness is 16mm and the maximum cutting length is 3200mm.


Main function and features

Steel plate welded structure,hydraulic transmission and accumulator return strock.

Characterized by easy operation,reliable performance and fine appearance.

Indicator based gap adjustment of blades,convenient and swift.

Shadow light alignment.

Top blade could be adjusted for full stroke or shorter ones.

Fence guard for personnel safety.

E21S as the simple CNC controller,it can control the movement of backgauge,achieving efficient and highly precise positioning.

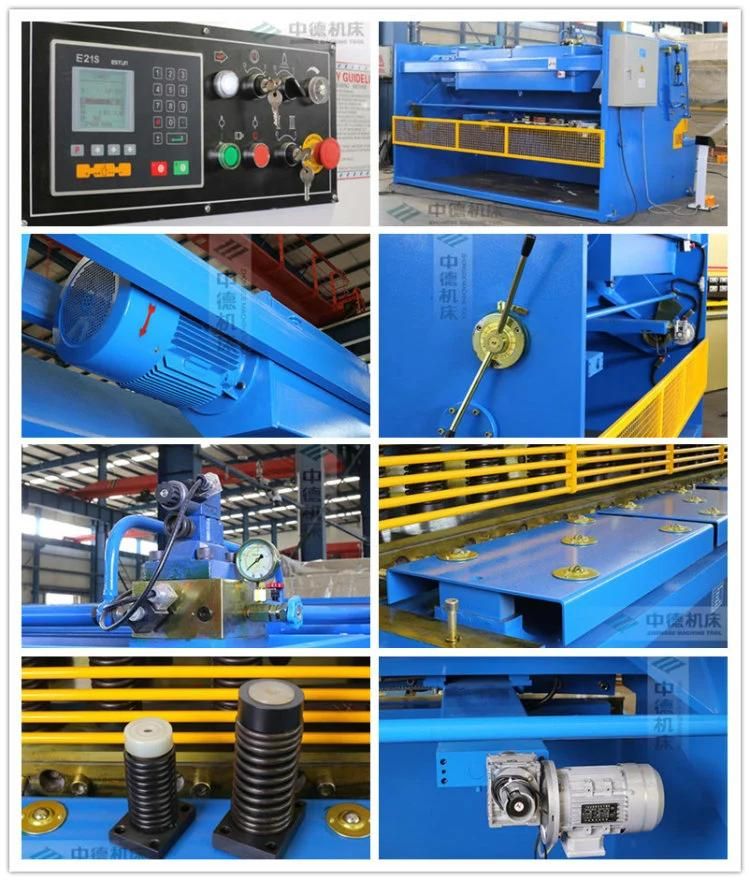

Related Configuration with details

1,E21S simple CNC controller for ZDS-1632 hydraulic shearing machine.
2,Front view of ZDS-1632 hydraulic shearing machine.
3,Rear view of ZDS-1632 hydraulic shearing machine.
4,Top brand main motor,with strong power.
5,Manual adjustment of blade clearance device,with high precision.
6,Domestic high quality hydraulic valve,no oil leakage and fault,it can show the oil pressure in time,and it use full-metal high-pressure tube connection,ensure the quality.
7,Penetration guard fence around the shear,not only protect the safety of operator but also observe the shearing position.
8.Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Using high quality holding-down clamps.
9.Shanghai good quality blades,with long lifespan.
10.Good quality electrics,with Taiwan frequency inverter drive,accurate control,stable,durable and long lifespan.
11.Domestic high quality bearing,wearproof and long operation life.
12.Using high quality holding-down clamps.
13.Backgauge AC motor together with reducer,little fault and fast speed.
14.Bite type tube fittings is used to avoid disadvantages of uneasy maintenance etc that caused by welding.
15.Emergency stop button on the back of the shear machine,to protect the personnel safety.
